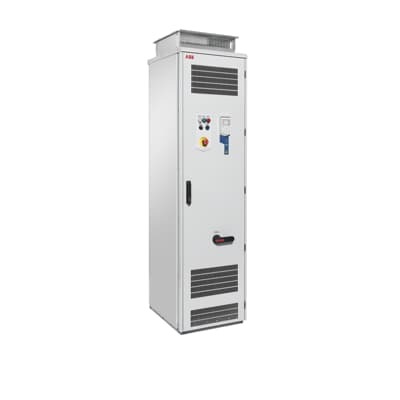

ABB 3AXD50000049039 LV AC Cabinet Drive - IP54
Part Number: 3AXD50000049039
Quick Summary
ABB 3AXD50000049039 LV AC cabinet-built drive powers water and wastewater pumping with precise, efficient control for reliable municipal and industrial applications. Operators commonly face energy waste, flow variability, and premature pump wear that drive maintenance costs; this drive mitigates those pain points. This unit comes with IP21 protection as standard and IP42/IP54 variants, plus UL listing, ensuring safe, compliant operation in harsh environments. A built-in energy calculator and intuitive interfaces—Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control—support faster commissioning and ongoing energy management, delivering clear ROI and measurable business value for water utilities and processing facilities.
Product Information
Extended Description
3AXD50000049039 ABB: The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature: Sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, and quick ramps. Benefit: Optimizes pump start/stop sequences, reduces energy spikes, and minimizes mechanical wear, extending pump life and lowering maintenance costs. Application: Municipal and industrial pumping where reliability and efficiency are critical. Feature: Built-in energy calculator and real-time energy visibility. Benefit: Quantifies savings, supports budgeting, and accelerates payback on upgrades. Application: Long-term utility cost reduction in pumping stations. Feature: Intuitive control interfaces and integration tools. Benefit: Faster commissioning, easier troubleshooting, and seamless monitoring with Drive Composer and optional Bluetooth panel. Application: Field deployments and remote monitoring across water treatment facilities. Feature: Rugged cabinet design with IP ratings. Benefit: Protected operation from dust, water, and environmental factors, reducing indoor-outdoor installation constraints. Application: Outdoor or industrial plant installations. Feature: Safety and protection suite including dry-run protection and sensorless control. Benefit: Prevents collateral damage, reduces downtime, and improves system reliability. Application: Critical pumping operations with variable demand. Feature: Impeller cleaning and flow-management capabilities. Benefit: Maintains efficiency and reduces clogging-related maintenance. Application: Wastewater pumping where solids handling is a concern.
Get a Quick Quote for a ABB 3AXD50000049039
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049039?
Enquire Now
FAQs
Plan for a cabinet-based installation compatible with 400 V supply and the optional 480 V configuration. Ensure enclosure provides IP21 baseline with IP42/IP54 variants available for harsher environments. Verify proper heat dissipation, cable routing for motor and fieldbus connections, and secure mounting to prevent vibration. Commissioning via Drive Composer is recommended to validate settings quickly.
Sensorless flow calculation estimates pump flow without extra flow sensors by using motor and drive data. This reduces sensor maintenance, minimizes installation costs, and improves control accuracy under varying load. In wastewater applications, it helps maintain desired head and flow, reducing energy consumption and wear during start/stop cycles.
Yes. The drive supports ABB Drive Composer for PC-based configuration and monitoring, and an optional Bluetooth control panel for remote operation. The Hand-Off-Auto (HOA) panel provides local control during commissioning and maintenance, enabling quick transitions between manual and automatic modes without missing critical alerts.
The product line offers IP ratings from IP21 as standard to IP42/IP54 variants for tougher environments, along with UL listing for safe operation. These protections help ensure compliance with common water and wastewater installation standards and enhance reliability in challenging outdoor or indoor plant locations.
Expect measurable ROI from energy savings driven by efficient pump operation, reduced downtime due to protection features like dry-run protection and soft ramps, and extended pump life from controlled start/stop. The built-in energy calculator provides visibility into savings, supporting maintenance planning and faster justification for upgrades in pumping stations.
