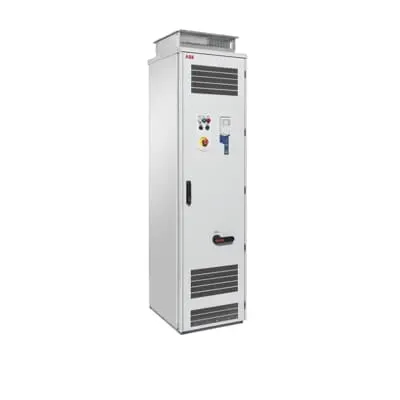

ABB ACQ580-07-0363A-4 Drive - IP54 Cabinet-Built
Part Number: 3AXD50000049041
Quick Summary
ABB ACQ580-07-0363A-4 drive delivers energy-efficient pumping control for water and wastewater systems. Operators often struggle with energy waste, pump downtime, and the complexity of coordinating multiple pumps. This UL-listed cabinet-built drive supports IP21 as standard, with IP42 and IP54 variants to meet harsher environments, helping protect critical assets and reduce maintenance. The built-in sensorless flow calculation, multipump control, level control, soft pipe fill, dry-run protection, and quick ramps translate into lower operating costs and extended pump life. Paired with the intuitive Hand-Off-Auto control panel, the PC tool Drive Composer, and an optional Bluetooth panel, it enables faster commissioning, better diagnostics, and a clearly defined ROI for municipal plants and industrial water systems.
Product Information
Extended Description
3AXD50000049041 ABB: The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Built-in pump application features include sensorless flow calculation, multipump control, level control, soft pipe fill, dry-run protection, quick ramps, and an impeller-cleaning solution. This combination translates into meaningful energy savings, reduced pump wear, and safer startups, especially when multiple pumps operate in sequence. In water and wastewater installations, these capabilities deliver reliable, cost-effective pumping and easier compliance with process requirements. Cabinet-built design delivers a compact footprint with protective IP variants for demanding environments. IP21 is standard; IP42 and IP54 options expand protection against dust and moisture, simplifying outdoor or harsh-plant installations. The result is easier integration with existing switchgear, lower enclosure costs, and faster project execution for municipal water utilities and industrial pumping systems. The sturdy cabinet also streamlines service access and wire-management in tight plant spaces. Usability and diagnostics are enhanced by a Hand-Off-Auto control panel, Drive Composer PC tool, and an optional Bluetooth panel. These tools speed up commissioning, parameter tuning, and remote diagnostics. For service teams, that means shorter downtime, faster repairs, and improved operator confidence during routine operations. The platform supports standard Windows-based workflows and cloud-ready updates for future-proofing. Energy management is built in with an energy calculator that visualizes savings from optimized flow, sensorless control, and ramping strategies. When combined with multipump sequencing, it supports compelling ROI justifications and long-term operating-cost reductions for water treatment facilities and municipal pumping networks. Real-time visualization helps engineers justify upgrades to stakeholders. Compatibility and lifecycle readiness are underscored by 200 kW IEC ratings at 400 V and a UL-listed 480 V variant (Pld 300 Hp). The drive’s IP21 standard with IP42/IP54 options, integrated dry-run protection, and quick ramp performance help meet plant standards while preserving asset longevity and reducing maintenance cycles in challenging environments. The unit also aligns with ABB’s Drive Composer ecosystem for seamless integration.
Get a Quick Quote for a ABB 3AXD50000049041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049041?
Enquire Now
FAQs
The drive is a cabinet-built low voltage VFD designed for water and wastewater applications with IEC ratings up to 400 V (Pn 200 kW, 363 A) and UL ratings up to 480 V (Pld 300 Hp, 361 A). It is available in IP21 standard, with IP42 and IP54 variants for harsher environments, and supports standard installation alongside existing switchgear.
Sensorless flow calculation optimizes pump speed without external flow sensors, while multipump control coordinates several pumps to match demand precisely. Together, they reduce energy use, minimize hydraulic cycling, prevent dry-running, and extend pump life, which is particularly valuable for variable demand in wastewater lift stations and large-scale water supply networks.
Yes. The model is UL-listed with a UL 480 V variant (Pld 300 Hp) and supports IEC 400 V operation. IP21 is standard, with IP42 and IP54 options available, enabling installations in protected indoor cabinets or harsher environments such as outdoor enclosures or damp plant rooms.
Benefits include reduced energy costs via optimized flow and ramping, longer pump life through dry-run protection, and fewer unplanned outages. The built-in energy calculator helps quantify savings, while features like quick ramping and impeller cleaning support lower maintenance frequency, all contributing to a favorable return on investment for water utilities and industrial pumping applications.
Begin with mechanical and electrical wiring in a compliant cabinet, then use Drive Composer to configure motor parameters, control logic, and pump sequencing. If needed, enable the Bluetooth panel for wireless diagnostics and firmware updates. Finally, validate protection settings, run a dry-run test, and document energy-savings targets for stakeholder sign-off.
