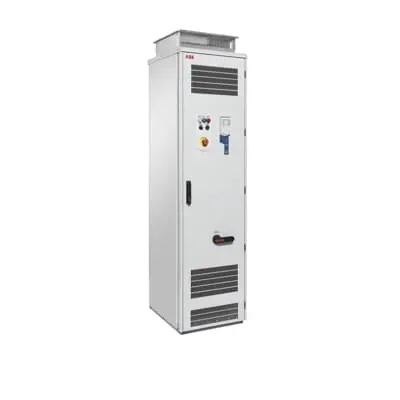

ABB 3AXD50000049042 ACQ580-07 Cabinet Drive - IP21
Part Number: 3AXD50000049042
Quick Summary
ABB 3AXD50000049042 is a cabinet-built LV AC drive designed for water and wastewater pumping. It delivers precise motor control and energy-efficient flow management in a compact, cabinet-ready package suitable for harsh environments. This solution helps operators reduce energy costs, extend pump life, and minimize downtime by integrating pump-specific features such as sensorless flow calculation, multipump control, and level management. A key challenge in the sector is balancing reliable performance with easy commissioning and ongoing maintenance; this drive addresses that with intuitive Hand-Off-Auto control, the Drive Composer PC tool, and optional Bluetooth control. CE and UL certifications, plus IP-rated variants (IP21 standard, with IP42/IP54 options), reinforce compliance and rugged operation while enabling scalable deployment.
Product Information
Extended Description
3AXD50000049042 ABB: The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature: Built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller-cleaning solution. Business Impact: these capabilities optimize flow accuracy, minimize surges, and prevent costly pump failures, lowering energy consumption and maintenance costs. Application: ideal for centralized water treatment and wastewater pumping stations where multiple pumps must respond to varying demand. Feature: Cabinet-built drive with a compact footprint and rugged IP-rated options (IP21 standard; IP42/IP54 variants available). Business Impact: simplifies installation, reduces enclosure space requirements, and provides rugged operation in wet environments, cutting total installed cost. Application: suitable for municipal and industrial plants with space constraints or harsh surroundings. Feature: Intuitive control interfaces including Hand‑Off‑Auto panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: accelerates commissioning, facilitates remote diagnostics, and lowers field labor costs. Application: supports rapid site startups and remote maintenance across multiple pump stations. Feature: Built-in energy calculator and broad electrical compatibility (IEC PN 250 kW, 430 A, 400 V; UL Pld 350 Hp, 414 A, 480 V). Business Impact: demonstrates measurable energy savings, supports compliance reporting, and enables scalable expansion across changing load profiles. Application: aligns with utility-driven efficiency programs and lifecycle cost reduction. Feature: Safety and protection features including dry run protection and soft ramping. Business Impact: reduces pump damage, extends equipment life, and limits sudden mechanical stress during peak demand transitions. Application: critical for wastewater handling where pump availability and reliability are paramount.
Get a Quick Quote for a ABB 3AXD50000049042
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049042?
Enquire Now
FAQs
This cabinet-driven LV AC drive supports 400 V systems with 430 A ratings and IEC PN 250 kW sizing, plus UL-listed 480 V variants (Pld 350 Hp, 414 A). It offers IP21 standard protection with IP42/IP54 options, and is compatible with Drive Composer PC tool, Hand-Off-Auto control, and optional Bluetooth panels for streamlined commissioning and remote diagnostics.
Sensorless flow calculation provides accurate flow estimation without external sensors, reducing installation costs and potential sensor failures. It enables optimized pump control, energy savings, and better surge management, improving process stability in variable demand conditions typical of water and wastewater facilities.
Yes. The ACQ580-07 cabinet drive supports multipump control, enabling coordinated operation of several pumps to meet fluctuating demand. This reduces wear, improves efficiency, and simplifies sequencing in pump stations, while level control and soft-start features further protect equipment during transitions.
The drive is CE-compliant and UL-listed for applicable configurations, with IP ratings including IP21 by default and higher protection levels (IP42/IP54) as options. These certifications support regulatory compliance in municipal and industrial environments and ease integration into certified control architectures.
Benefit from energy savings via the built-in energy calculator, reduced downtime due to dry-run protection, and extended pump life from soft ramping and protective features. The Drive Composer PC tool and optional Bluetooth panel streamline commissioning and diagnostics, delivering faster project realization and lower operating costs over the asset life.
