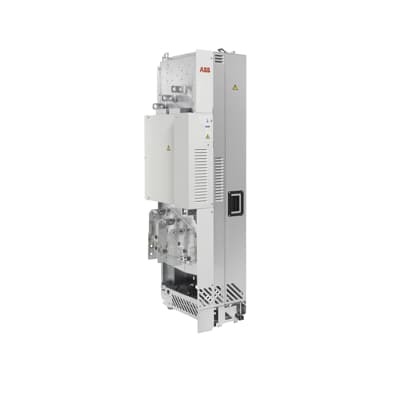

ABB 3AXD50000049064 ACH580 HVAC drive - 250 kW IP00
Part Number: 3AXD50000049064
Quick Summary
The ACH580 HVAC drive is a LV AC drive module designed to precisely control fans, pumps and compressors in HVAC systems across commercial and industrial facilities. For engineers facing tight installation schedules, the setup and commissioning steps can become a bottleneck; this drive reduces that friction with HVAC-specific menus and onboard guidance. It carries UL-listed and CE-compliant certifications with IP00 enclosure standard and IP20 options for cabinet installations. The combination of built-in control logic and streamlined commissioning translates to faster deployments and measurable energy and maintenance savings, while remaining fully compatible with ABB’s control ecosystem and energy-management strategies.
Product Information
Extended Description
3AXD50000049064 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Feature: Built-in HVAC control features simplify start-up and operation. Benefit: Reduces commissioning time and minimizes startup errors, improving system reliability for air-handling units and chillers. Application: Use in fan, pump, and compressor circuits to achieve smoother ramping and reduced wear. Feature: Energy-efficient motor control with optimized torque and speed profiles. Benefit: Lowers energy consumption and peak demand, delivering measurable operating-cost reductions for large facilities. Application: Continuous HVAC operation in variable-load environments. Feature: HVAC-specific primary settings menu and help assistants. Benefit: Quicker commissioning and safer parameter setup, even for retrofit installations. Application: Retrofit of aging drives in existing plant rooms with minimal downtime. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring. Benefit: Remote fault diagnosis and off-site adjustments, reducing service visits. Application: Distributed installations or multi-site plants. Feature: IP00 enclosure standard with IP20 option for cabinet installations. Benefit: Flexible integration into standard electrical rooms and control cabinets. Application: New builds and upgrades in enterprise HVAC networks with ABB ecosystem integration. Feature: Built-in protections and compatibility with ABB control systems. Benefit: Enhanced reliability, simpler maintenance, and alignment with energy-management workflows. Application: Mission-critical HVAC applications in data centers, hospitals, and manufacturing.
Get a Quick Quote for a ABB 3AXD50000049064
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049064?
Enquire Now
FAQs
Install the ACH580 in an appropriately rated cabinet with proper clearances for cooling and service access. Ensure wiring meets IEC/UL standards for 400 V systems, torque all terminals to the manufacturer’s specs, and connect protective earth correctly. Use the HVAC-specific settings menu to configure motor parameters and enable built-in protections. For retrofit projects, verify compatibility with existing ABB controls and verify that the IP00 enclosure is suitable for the cabinet environment.
In IEC terms, the drive supports PN 250 kW with approximately 505 A at 400 V. In UL terms, the drive lists around 400 Hp with 483 A at 480 V. These figures guide motor selection, cable sizing, and protective device ratings. When designing the system, ensure the motor and power wiring match these ratings and use the appropriate enclosure configuration (IP00 standard, IP20 option if required for cabinet installations).
Yes. The ACH580 HVAC drive is purpose-built for HVAC systems, delivering precise speed control for fans, pumps, and compressors found in air-handling units and chillers. Its HVAC-oriented settings menu simplifies configuration for common equipment like AHUs and chillers, while built-in energy-management features support continuous operations and demand-side controls in commercial buildings.
The ACH580 HVAC drive is UL-listed and CE-compliant, addressing both safety and regulatory requirements for global deployments. It is delivered with an IP00 enclosure as standard, with an IP20 option for cabinet installations, which helps meet varying protection and installation standards across facilities and regions.
Deploying the ACH580 can reduce commissioning time and enable more efficient HVAC operation, leading to lower energy costs and reduced maintenance visits. The integrated diagnostics and ABB ecosystem compatibility support predictive maintenance and seamless upgrades, delivering faster payback in large facilities with multiple AHUs, pumps, and chillers.
