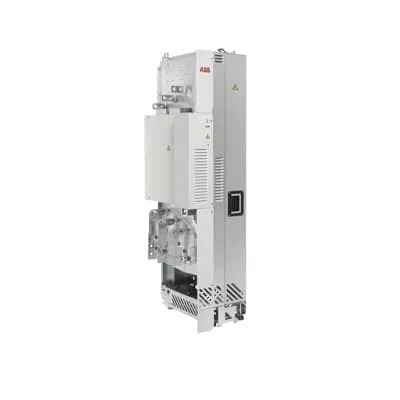

ABB 3AXD50000049065 LV AC drive module - UL: Pld 450 Hp, 573 A, 480 V
Part Number: 3AXD50000049065
Quick Summary
ABB 3AXD50000049065 LV AC drive module for HVAC controls fans, pumps, and compressors. Installing and commissioning can be lengthy and error-prone without an integrated, plug-and-play solution. This drive supports UL-listed configurations and offers IP00/IP20 enclosure options to meet cabinet safety and protection requirements. Combined with an HVAC-specific control panel and Bluetooth remote commissioning, it shortens startup time while delivering reliable operation. In short, you gain energy efficiency, reduced total cost of ownership, and a smoother path to compliance.
Product Information
Extended Description
3AXD50000049065 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Feature → Business Impact → Application: Built-in HVAC drive module with dedicated control for fans, pumps, and compressors reduces wiring complexity and enables faster deployment across commercial and industrial HVAC installations, delivering measurable time-to-value. Application: Air handling units, roof-top units, and packaged HVAC systems benefit from simplified integration and consistent performance. Feature → Business Impact → Application: HVAC-specific control panel with a dedicated primary settings menu accelerates commissioning and reduces operator errors, lowering commissioning labor costs. Application: Technicians across service contracts or site startups gain confidence during handover and early run-time operations. Feature → Business Impact → Application: Bluetooth remote commissioning and monitoring enable off-site setup and fault diagnosis, cutting on-site visits and accelerating commissioning timelines. Application: Large facilities or retrofit projects where access is restricted or safety protocols limit in-person site work. Feature → Business Impact → Application: IP00 standard and IP20 enclosure options provide cabinet-ready installation, protecting electronics in varying environments and easing retrofit compatibility. Application: Data centers, manufacturing plants, and commercial buildings needing flexible enclosure choices. Feature → Business Impact → Application: Energy-efficient variable-speed control reduces fan and pump run-time energy use, lowering utility bills and extending equipment life. Application: HVAC systems with variable-load conditions, chillers, and multiple-zone control scenarios. Feature → Business Impact → Application: Compatibility with ACH580-04-585A-4 platforms ensures consistent performance and a clear upgrade path for existing ABB HVAC drive ecosystems. Application: Modernization projects where uptime and standardization are critical.
Get a Quick Quote for a ABB 3AXD50000049065
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049065?
Enquire Now
FAQs
Yes. The 3AXD50000049065 LV AC drive module is designed for HVAC applications including fans, pumps, compressors, air-handling units, and chillers. It integrates with ACH580-04-585A-4 configurations and supports cabinet installations with IP00/IP20 enclosure options, ensuring compatibility with common HVAC architectures and ABB control ecosystems.
Key specs include IEC power rating Pn of 315 kW and 585 A at 400 V, with UL configuration Pld of 450 Hp and 573 A at 480 V. These ratings define the drive’s capability to reliably control high-power HVAC loads, while enclosure options help protect against environmental conditions in cabinet installations.
The module excels in controlling large fans, pumps, and compressors, as well as equipment in air-handling units and chillers. Its HVAC-tailored settings simplify startup and operation, delivering smoother control of load variations and better overall system stability in mission-critical environments.
The drive offers IP00 as standard with IP20 enclosure options, addressing cabinet installation protection requirements. It also aligns with UL-listed configurations, supporting compliance during installation in commercial and industrial facilities where electrical safety certifications are prioritized.
Built-in HVAC controls, HVAC-specific menus, and optional Bluetooth remote commissioning reduce site time and commissioning labor. Remote monitoring accelerates fault diagnosis, while energy-efficient speed control lowers running costs, contributing to a favorable return on investment over equipment life cycles.
