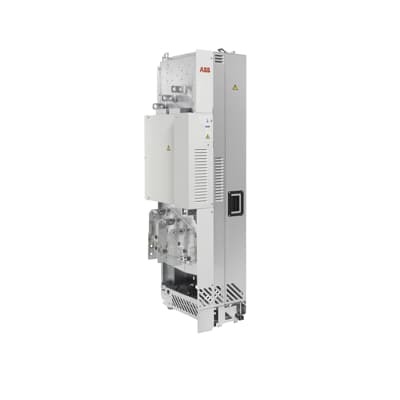

ABB ACH580-04-650A-4 HVAC drive - IP00/IP20 Enclosures
Part Number: 3AXD50000049066
Quick Summary
ABB ACH580-04-650A-4 HVAC drive is a programmable variable-speed solution that optimizes fans, pumps and compressors in building HVAC systems. For engineers and integrators, lengthy commissioning and complex tuning can delay project timelines. This drive simplifies setup with HVAC-specific primary settings, an intuitive control panel, and optional Bluetooth for remote commissioning. It is CE certified and available in IP00 enclosure, with IP20 variants; UL data supports 480 V applications. By reducing installation time and enabling precise speed control, it delivers energy savings and improved reliability for building operators and OEMs. In practice, integrators report faster ramping, fewer programming errors, and simpler documentation handoffs.
Product Information
Extended Description
3AXD50000049066 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Feature → Business Impact → Application: Built-in HVAC-ready controls and an HVAC-specific primary settings menu translate to faster setup, fewer commissioning errors, and lower risk during integration. This design reduces human error and simplifies initial parameterization for the drive. Resulting benefits include quicker startup and more predictable performance for fans, pumps, and compressors in air-handling units, rooftop systems, and chillers. Feature → Business Impact → Application: IP00 enclosure with IP20 option and a cabinet-friendly footprint reduce wiring complexity and panel space while improving serviceability. The streamlined installation lowers labor costs and minimizes cabinet tucks, which is especially valuable in retrofit projects or constrained mechanical rooms where the drive must coexist with other equipment. Feature → Business Impact → Application: Bluetooth-enabled commissioning (optional) enables remote setup, monitoring, and troubleshooting, cutting on-site visits and accelerating project timelines. Engineers can verify performance quickly across multiple HVAC zones, improving consistency in large installations such as data centers or campus buildings. Feature → Business Impact → Application: Built-in protection, fault diagnostics, and smooth torque delivery support longer equipment life and energy efficiency through precise variable-speed control. The result is reduced maintenance needs, lower energy consumption, and less wear on fans and pumps in air-handling units and chilled-water systems. Feature → Business Impact → Application: Compatible voltage variants IEC 400 V and UL 480 V, plus CE certification, ensure broad procurement and compliance. This foundation supports global deployments, simplifies vendor qualification, and aligns with commissioning standards for HVAC OEMs, contractors, and building operators.
Get a Quick Quote for a ABB 3AXD50000049066
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049066?
Enquire Now
FAQs
Install ACH580-04-650A-4 in a suitable HVAC control cabinet by following ABB's wiring and configuration guidance. The unit ships with IP00 enclosure standard and IP20 option for cabinet installation, simplifying panel layout. Ensure correct supply voltage (IEC 400 V or UL 480 V variants), proper heat dissipation, and secure cable routing to minimize interference and enable reliable startup and serviceability.
Key performance specs for ACH580-04-650A-4 include IEC-rated power of 355 kW, a current of 650 A, and voltage of 400 V; UL variant supports up to 480 V with a 500 Hp rating and 623 A. The built-in HVAC-oriented controls simplify fan, pump, and compressor management while maintaining compliance and stable operation across typical 50/60 Hz networks.
Yes. The ACH580-04-650A-4 is purpose-built for HVAC applications, including air handling units, chillers, and large fans and pumps. Its HVAC-specific settings menu and helpful assistants streamline startup, while built-in protection and remote commissioning options support ongoing performance, fault diagnostics, and rapid intervention in mission-critical environments. It handles variable-speed control for compressors and fans with reliable modulation and smooth torque delivery. This reduces mechanical wear and energy use in HVAC towers.
Certifications and ratings for this HVAC drive include CE compliance and IP rating options. The standard IP00 enclosure is suitable for certain cabinet installations, with IP20 available for more demanding environments. The IEC/UL variants provide compatibility with common power networks (400 V IEC and 480 V UL), supporting safe, regulated operation in regulated markets and enabling easier supplier audits.
ROI and maintenance benefits arise from reduced energy consumption, simplified commissioning, and remote monitoring capabilities. The built-in HVAC-specific settings minimize commissioning time, while optional Bluetooth enables off-site troubleshooting and updates. Regular diagnostics help predict faults, reducing unplanned downtime and spare-part costs, delivering faster payback and improved lifecycle value for building owners and HVAC system integrators.
