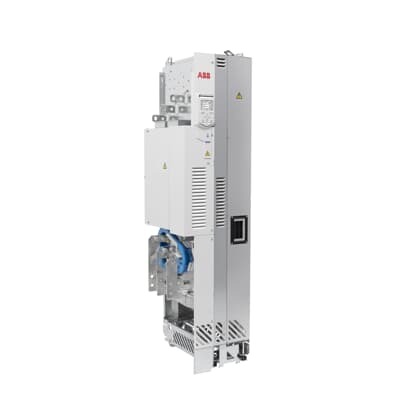

ABB ACH580-04-725A-4 HVAC Drive Module - IP00/IP20
Part Number: 3AXD50000049067
Quick Summary
ABB ACH580-04-725A-4 HVAC drive enables precise control of fans, pumps, and compressors in commercial and industrial HVAC systems. Engineers often struggle with lengthy commissioning, inconsistent performance, and downtime when integrating variable-speed drives with complex HVAC networks. UL-listed for HVAC applications and available in IP00 standard enclosures with an IP20 option, the unit supports IEC compatibility for modern control architectures. With built-in features, intuitive settings, and optional Bluetooth for remote commissioning, this drive reduces installation time while delivering energy-efficient, reliable operation. In demanding environments, its compact footprint and robust control interface support consistent performance and a strong return on investment across building automation projects.
Product Information
Extended Description
3AXD50000049067 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Feature: Built-in HVAC control for fans, pumps and compressors → Business Impact: Reduces system complexity and commissioning time, enhancing energy efficiency and reliability → Application: Ideal for air handling units and central HVAC loops. The ACH580-04-725A-4 delivers smooth start/stop profiles that minimize mechanical stress and improve fan/pump lifespan. Long-term benefit: measurable energy savings in large-scale installations. Feature: Intuitive control panel with HVAC-specific settings → Business Impact: Accelerates startup and reduces commissioning engineering hours → Application: Retrofit and new builds where rapid deployment matters. Feature: Optional Bluetooth capability → Business Impact: Remote commissioning and monitoring, reducing site visits and maintenance costs → Application: Critical facilities with limited access or off-site service. Feature: Enclosure flexibility IP00 standard, IP20 option → Business Impact: Simplified cabinet installation and adaptable protections for different environments → Application: Data centers, hospitals, and commercial buildings requiring robust installation. Feature: Power specs IEC 400 kW, 725 A at 400 V; UL equivalent 600 Hp, 705 A at 480 V → Business Impact: Ensures scalable performance for high-demand HVAC systems → Application: Large fans, pumps, and compressors in HVAC plants. Feature: Compatibility with IEC control architectures and existing automation → Business Impact: Seamless integration with building management systems and industrial controllers → Application: Mixed automation environments requiring reliable interoperability. You gain installation time savings, improved uptime, and better compliance with industry standards while supporting a smoother migration path from legacy drives.
Get a Quick Quote for a ABB 3AXD50000049067
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049067?
Enquire Now
FAQs
When installing the ACH580-04-725A-4 in HVAC cabinets, plan for three-phase 400 V supply and a compatible motor connection. Utilize the IP00 enclosure as standard and evaluate IP20 enclosure needs for your environment. Leverage the built-in start/stop profiles to minimize mechanical stress on fans and pumps, and wire the device to the plant control system with attention to proper grounding and safety clearances.
The drive is specified for IEC operation at 400 kW and 725 A with a 400 V input. UL-friendly (UL: 600 Hp, 705 A, 480 V) specifications also apply, supporting high-demand HVAC loads. This dual specification alignment ensures robust performance whether the system is configured for IEC or UL electrical standards, enabling consistent motor control and protection across regions.
Yes. The ACH580-04-725A-4 HVAC drive is designed specifically for HVAC applications, offering built-in features to optimize control of fans, pumps, and compressors. Its HVAC-oriented control panel simplifies startup, commissioning, and ongoing operation, delivering energy savings, smoother operation, and enhanced reliability in air handling units, chillers, and central plants.
The drive ships with IP00 enclosure as standard for cabinet installation, with an IP20 option available for environments requiring higher ingress protection. It is designed to align with common HVAC regulatory expectations and supports IEC-based control strategies, providing a safe, regulator-friendly platform for critical building systems.
The ACH580-04-725A-4 offers optional Bluetooth capability to enable remote commissioning and monitoring. This reduces on-site visits, speeds up parameter tuning, and allows service teams to verify performance from a distance. Bluetooth connectivity pairs with the drive’s HVAC-specific settings for efficient, accurate configuration and ongoing operational oversight.
