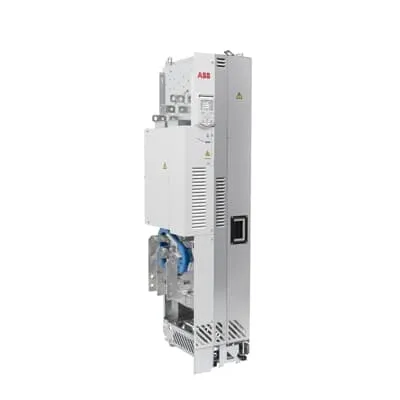

ABB 3AXD50000049068 HVAC Drive Module - UL 700 HP
Part Number: 3AXD50000049068
Quick Summary
ABB 3AXD50000049068 HVAC drive module enables precise, energy-efficient control of fans, pumps, and compressors across HVAC systems. Engineers often struggle with lengthy commissioning, integration hurdles, and downtime when upgrading variable-speed drives in mission-critical facilities. This solution is UL-listed and offers IP00 standard enclosure with IP20 option, supporting safe cabinet installations in varying environments. The built-in HVAC-specific settings, intuitive control panel, and optional Bluetooth enable faster startup, reduced wiring, and easier remote monitoring—delivering measurable reductions in service visits and maintenance costs. Coupled with ABB’s ACH580 family and seamless BMS integration, the system provides scalable control strategies that translate into lower total cost of ownership and improved system resilience.
Product Information
Extended Description
3AXD50000049068 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
Integrated HVAC drive tailored for fans, pumps, and compressors. The business impact is simplified system control, reduced wiring complexity, and faster commissioning, which translates to shorter project timelines in AHUs and rooftop units. Application: large-scale air handling facilities, data-center cooling, and commercial buildings seeking reliable variable-speed control. Built-in HVAC-focused control panel with a dedicated primary settings menu accelerates startup and minimizes setup errors. Business impact: immediate labor savings during commissioning and consistent operation across shifts. Application: site deployments where commissioning windows are tight. Optional Bluetooth enables remote commissioning and ongoing monitoring, reducing on-site visits and enabling proactive maintenance. Business impact: higher asset availability and lower field service costs. Application: service teams and remote diagnostics for critical HVAC systems. IP00 standard enclosure with IP20 option offers installation flexibility in cabinet environments, improving compatibility with existing electrical rooms. Business impact: easier retrofits and cabinet integration. Application: retrofit projects in mechanical rooms and shared electrical spaces. Electrical ratings of IEC 450 kW at 400 V with 820 A and UL-rated 700 Hp at 480 V (807 A) support precise sizing and regulatory compliance. Business impact: lowers risk of under- or over-sizing drives and streamlines procurement. Application: large HVAC installations requiring robust protection and reliable performance. Compatibility within the ABB ACH580 family ensures seamless integration with BMS and automation architectures. Business impact: unified control, standardized maintenance, and scalable upgrades. Application: building modernization and energy-management programs.
Get a Quick Quote for a ABB 3AXD50000049068
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049068?
Enquire Now
FAQs
The drive module is designed to integrate with standard HVAC controllers and ABB’s ACH580 family, supporting seamless communication with building management systems (BMS). It offers cabinet installations with IP00 (standard) and IP20 options, plus a configurable HVAC-specific control panel to simplify startup. Remote monitoring via Bluetooth is available, reducing on-site commissioning time and enabling quicker fault diagnosis during integration.
Key specifications include IEC rated power of 450 kW at 400 V with 820 A, and UL-rated 700 Hp at 480 V (807 A). These ratings help ensure proper sizing for large HVAC loads such as large fans, pumps, and compressors. Accurate sizing minimizes energy waste and avoids overloading, while compliance with UL standards enhances safety and reliability in critical environments.
Yes. The ACH580-based module is expressly designed for HVAC use, with built-in control features for fans, pumps, and compressors, plus an HVAC-focused setup menu. Its IP00 IP20 enclosure options provide installation flexibility in mechanical rooms and cabinets. The device supports smooth operation, energy efficiency, and straightforward integration with AHUs, chillers, and other HVAC equipment.
The 3AXD50000049068 drive module is UL-listed, providing a recognized safety standard for electrical equipment. It offers IP00 standard enclosures and IP20 enclosure options for cabinet installations, which helps with environmental protection and regulatory alignment in HVAC applications. These certifications and enclosures support compliant deployment in commercial and industrial facilities.
Expect ROI from energy-efficient operation, reduced commissioning time, and fewer on-site service visits due to remote Bluetooth monitoring. The drive’s integration with ABB’s ecosystem enables consistent maintenance practices and easier upgrades within the ACH580 family. Regular firmware updates, periodic belt and bearing checks in driven systems, and periodic control panel calibration will sustain performance over time.
