ABB 3AXD50000049069 LV AC Drive Module - 500 kW IP00/IP20
Part Number: 3AXD50000049069
Quick Summary
ACH580 HVAC drive module provides precise speed control for fans, pumps and compressors in commercial HVAC systems. Engineers often struggle with lengthy commissioning and inconsistent performance when integrating drives into complex air-handling setups. This ABB solution is UL-listed for high-power HVAC duty and supports IP00 standard enclosures with IP20 option for cabinet installations, ensuring reliability in harsh electrical environments. Its HVAC-tailored control panel, built-in help assistants, and optional Bluetooth capability streamline startup, commissioning and ongoing monitoring. By combining these features with energy-efficient performance, the device helps you reduce operating costs and scale automation across multi-zone buildings.
Product Information
Extended Description

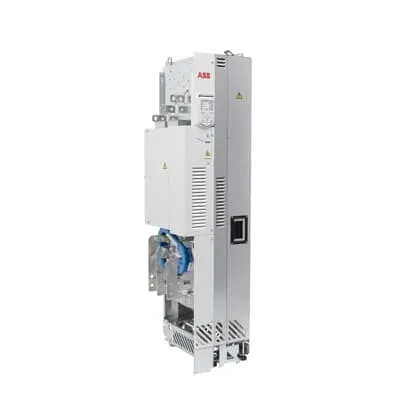

3AXD50000049069 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in IP00 enclosure as standard for cabinet installation. Also, IP20 enclosure is available.
HVAC-specific built-in control for fans, pumps, and compressors reduces configuration time and promotes reliable operation across variable air volume systems. This translates to quicker startup, fewer commissioning errors, and smoother operation in air-handling units, chillers, and rooftop systems. Precise, variable-speed control enables energy savings and reduced wear by soft-start and ramp optimization, helping to lower peak electrical demand and improve overall plant efficiency. IP00 enclosure standard keeps the drive ready for cabinet installations, with IP20 available to protect the unit in more demanding environments, expanding compatibility with existing switchgear and distribution panels. Optional Bluetooth capability enables commissioning and monitoring from a distance, minimizing on-site visits during startup and maintenance. The intuitive HVAC-specific settings menu and built-in help assistants accelerate configuration and service, while robust diagnostics support proactive maintenance. UL listing reinforces compliance for high-power HVAC duty and supports reliable operations across ABB’s ACH580 family, ensuring consistent performance and easier serviceability across plant assets.
Get a Quick Quote for a ABB 3AXD50000049069
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000049069?
Enquire Now
FAQs
To install, mount the ACH580 drive module in an appropriate control cabinet, connect the 400 V supply and motor leads per ABB wiring diagrams, and configure the HVAC-specific primary settings for fans, pumps or compressors. The device is designed for cabinet installations with IP00 standard enclosure and IP20 option for more demanding environments. Bluetooth (optional) supports remote commissioning and monitoring, reducing on-site time.
The drive is rated for up to 500 kW with a maximum current around 880 A at 400 V. The UL-listed configuration referenced for this model supports high-power HVAC duty, delivering reliable speed control for large fans, pumps and compressors. It is designed for HVAC applications and interfaces with building automation systems through standard control terminals and optional Bluetooth connectivity.
Yes. The ACH580 HVAC drive module is purpose-built for HVAC equipment like air handling units, chillers, and rooftop units. Its HVAC-oriented control panel, built-in pre-configured settings, and rapid commissioning workflow make it ideal for managing variable-air-volume systems, optimizing energy use and maintaining stable indoor conditions across multiple zones.
The product is UL-listed for high-power HVAC duty and is available in an IP00 standard enclosure with a selectable IP20 enclosure. This combination provides robust electrical protection for cabinet installations and supports safe operation in typical industrial environments. While CE labeling is common for European markets, this data focuses on UL and IP protection ratings to meet regulatory and safety requirements.
The ACH580 drive supports energy efficiency through precise speed control of fans, pumps, and compressors, reducing energy consumption and peak demand. Quick commissioning, HVAC-tailored menus, and remote monitoring via optional Bluetooth minimize installation and maintenance costs. Long-term reliability and easier maintenance translate to lower total cost of ownership and faster return on investment for large-scale HVAC projects.
