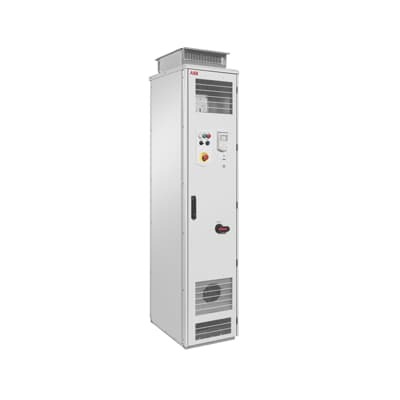

ABB ACH580-07-0585A-4 LV HVAC Drive - IP21 Standard
Part Number: 3AXD50000050471
Quick Summary
ACH580 HVAC drive from ABB delivers precise speed control for fans, pumps, and compressors in building HVAC. This approach reduces energy waste and mitigates abrupt starts that stress equipment and disturb indoor comfort. Key certifications include UL-listed capabilities, with IP21 standard and optional IP42/IP54 variants for demanding environments. Its cabinet-built design simplifies installation, while the Bluetooth-ready interface and HVAC-focused control panel shorten commissioning and ongoing operation, delivering lower total cost of ownership. In mission-critical HVAC applications, the ACH580 helps maintain uptime and predictable maintenance planning. Designed for HVAC-specific environments, it integrates with building management systems and supports remote diagnostics. With energy-optimized motor control, it reduces operating costs over the system lifetime.
Product Information
Extended Description
3AXD50000050471 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
The ACH580 HVAC drive includes built-in control logic optimized for fans, pumps, compressors, and air-handling units, enabling precise speed and torque control where it matters most. This feature reduces engineering time and wiring complexity, accelerating commissioning and enabling faster on-site startup. In real-world installations, the drive translates energy savings into measurable operating cost reductions while maintaining consistent performance across varying loads. The cabinet-built enclosure protects sensitive electronics in mechanical rooms and simplifies installation, with standard IP21 protection and optional IP42/IP54 variants to meet tougher environmental criteria. Remote commissioning and monitoring are enabled by Bluetooth capability, allowing technicians to perform startup checks and ongoing diagnostics without frequent site visits. The HVAC-focused primary settings menu and help assistants shorten configuration, minimize operator errors, and ensure compliant, stable operation. Integrations with building management systems (BMS) are straightforward, enabling centralized control and data-driven optimization. Designed for large-load HVAC scenarios, the ACH580 supports energy-efficient operation for air handling units, chillers, and rooftop units, delivering a favorable return on investment through reduced energy use, maintenance costs, and faster project realization. Overall, the drive combines compatibility with three-phase 400 V networks, a robust 315 kW IEC rating, and a UL-listed performance envelope to meet the needs of modern data centers, hospitals, and industrial facilities seeking reliability and efficiency.
Get a Quick Quote for a ABB 3AXD50000050471
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000050471?
Enquire Now
FAQs
The ACH580-07-0585A-4 includes built-in HVAC control logic tailored for fans, pumps, and compressors, delivering precise speed control and energy management. This reduces external PLC programming and wiring, enabling faster commissioning and reliable performance in air handling units and variable-air-volume systems. Remote diagnostics via Bluetooth further streamline maintenance and optimization.
This drive provides a 315 kW IEC rating with 585 A at 400 V, and UL-listed performance at 450 Hp, 573 A, 480 V. It ships in a cabinet-built enclosure with IP21 protection as standard, with IP42 or IP54 options available for harsher environments. These specs support large HVAC loads while ensuring safe, compliant installation.
Yes. The ACH580 is designed for HVAC applications, including air handling units, chillers, and rooftop units. It integrates HVAC-focused settings, supports fans and pumps, and enables energy-efficient operation. The built-in control panel simplifies startup, while remote monitoring aids ongoing performance optimization in complex HVAC installations.
The ACH580 offers IP21 as standard enclosure protection, with IP42 and IP54 options available. Higher IP ratings are beneficial in environments with dust, moisture, or more stringent cleanliness requirements, reducing enclosure maintenance and enabling safer operation in mechanical rooms or outdoor-adjacent installations.
ROI is driven by energy savings from variable-speed control, reduced commissioning time, and lower maintenance costs due to integrated diagnostics. The cabinet-built design streamlines installation and minimizes cabling, while Bluetooth-enabled commissioning speeds startup. In retrofit or new-build projects, these factors translate to faster project realization and lower total cost of ownership over the system life.
