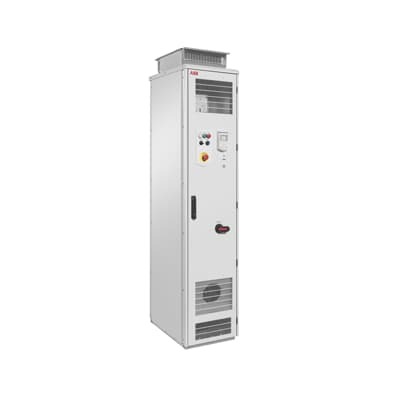

ABB ACH580-07-0650A-4 HVAC Drive - IP21/IP54
Part Number: 3AXD50000050472
Quick Summary
ABB ACH580 HVAC drive optimizes HVAC fans, pumps, and compressors with cabinet-built LV AC control. Installers often face lengthy setup and commissioning, risking delays and startup errors. It offers CE compliance, UL listing, and protective IP ratings with IP21 standard and optional IP42/IP54 configurations. Designed for energy efficiency and easy integration with building management systems, it reduces installation time and total cost of ownership. For engineers and procurement, this cabinet-built solution aligns with HVAC drive needs and delivers measurable energy savings.
Product Information
Extended Description
3AXD50000050472 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
The ACH580 HVAC drive integrates built-in control features for fans, pumps and compressors, delivering a clear business impact: streamlined startup and reduced commissioning time. In HVAC applications such as air-handling units and chillers, this translates to faster project turnover and lower maintenance costs. The cabinet-built design improves installation precision and simplifies cabinet wiring, with IP21 standard and optional IP42/IP54 variants ensuring robust operation in varying environments, reducing the risk of moisture ingress and dust-related faults. Bluetooth commissioning and monitoring enable remote adjustments, cutting on-site visits and accelerating fault diagnosis, which lowers downtime and service costs. The HVAC-specific control panel with guided settings minimizes operator errors, supporting consistent performance across multiple units and sites. Compatibility with ABB control ecosystems facilitates seamless integration with existing BMS and other drives, easing the procurement process and improving ROI in large-scale installations. Long-term energy efficiency is driven by optimized fan and pump curves, helping facilities meet regulatory targets while reducing peak demand and energy bills.
Get a Quick Quote for a ABB 3AXD50000050472
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000050472?
Enquire Now
FAQs
The ACH580-07-0650A-4 is designed for HVAC systems, including fans, pumps, compressors, air-handling units, and chillers. Its built-in HVAC control features support precise speed control and optimized energy use, making it ideal for central plant equipment and rooftop systems.
Key specs include a 355 kW (approximately 500 HP) rating with 650 A at 400 V (and 623 A at 480 V in UL configurations). It is a cabinet-built LV drive with IP21 protection by default and optional IP42/IP54 variants, plus UL and CE certifications.
Yes. It comes standard with IP21 protection, with options for IP42 and IP54 variants. These IP ratings provide protection against dust and moisture, enabling reliable operation in mechanical rooms, rooftops, and other HVAC environments exposed to varying conditions.
Bluetooth commissioning enables remote setup, monitoring, and troubleshooting from a distance. This reduces on-site labor, accelerates startup, and allows technicians to validate performance and adjust parameters without multiple site visits, enhancing project efficiency and reducing downtime.
The cabinet-built ACH580-07-0650A-4 delivers a ready-made, plug-and-play solution that simplifies wiring and commissioning. Its built-in HVAC control panel and pre-configured settings shorten startup times, while IP-rated variants improve robustness in real-world environments, delivering faster project delivery and lower total cost of ownership.
