ABB 3AXD50000050473 HVAC Drive - IP21 IP42 IP54
Part Number: 3AXD50000050473
Quick Summary
ABB ACH580 HVAC drive is a cabinet-built LV AC drive for controlling fans, pumps, and compressors in HVAC systems. Many installations suffer lengthy commissioning and wiring, and this drive addresses that by delivering built-in HVAC-focused features that streamline startup and reduce field time. It is UL-listed and offers IP protection, with IP21 standard and IP42/IP54 options, ensuring reliability in indoor cabinet environments. By combining compact cabinet integration, Bluetooth remote commissioning (optional), and an intuitive control panel, it delivers lower total cost of ownership and faster project deployment for modern HVAC projects.
Product Information
Extended Description

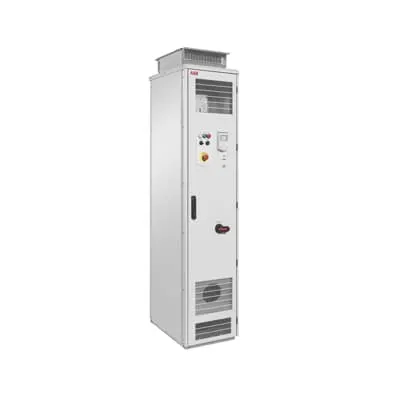

3AXD50000050473 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature: Built-in HVAC control features for fans, pumps, and compressors. Business Impact: Reduces wiring complexity and accelerates commissioning while delivering energy-efficient operation. Application: Ideal for air handling units, rooftop systems, and chillers in commercial and industrial buildings. Feature: Cabinet-built design with IP ratings. Business Impact: Provides rugged performance in indoor HVAC cabinets, simplifying compliance and maintenance planning. Application: Suitable for plant floors and equipment rooms with strict protection requirements. Feature: Intuitive control panel with HVAC-specific settings. Business Impact: Speeds startup, minimizes misconfiguration, and lowers maintenance costs through guided setup. Application: Field and shop floor commissioning for new installations. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business Impact: Cuts site visits, enables remote diagnostics, and supports proactive maintenance. Application: Remote projects, commissioning pilots, and IoT-enabled service models. Feature: High-power capability with 400 kW and 725 A at 400 V. Business Impact: Ensures robust performance for high-demand fans and pumps, reducing downtime and futureProofing installations. Application: HVAC loops and chillers requiring reliable, scalable drives with UL-ready protection.
Get a Quick Quote for a ABB 3AXD50000050473
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000050473?
Enquire Now
FAQs
Optimal installation starts with confirming the cabinet is suitable for the ACH580 in terms of height and cable clearance, then ensuring power and control wiring conform to 400 V systems. The drive ships with IP21 protection as standard, with IP42/IP54 options available for higher protection. UL listing supports safe integration in industrial HVAC cabinets, and the built-in HVAC settings reduce external wiring while enabling straightforward commissioning.
The drive delivers Pn 400 kW with 725 A at 400 V, enabling precise control of fans, pumps, and compressors. Its HVAC-focused primary settings, intuitive panel, and help assistants simplify startup and optimization, reducing energy consumption and wear. This makes it suitable for air-handling units, chillers, and other HVAC equipment where reliable, energy-efficient operation is critical.
Yes, the ACH580 HVAC drive offers an optional Bluetooth capability that enables commissioning and monitoring from a distance. This feature reduces on-site visits, accelerates fault isolation, and supports ongoing remote maintenance, which is particularly valuable for retrofit projects or facilities with access limitations.
This cabinet-built ACH580 drive is ideal for air-handling units, rooftop units, fans, pumps, and chillers within commercial and industrial HVAC systems. Its built-in HVAC control logic and IP-rated enclosure make it a strong fit for indoor equipment rooms, enabling reliable performance in mission-critical environments and supporting energy-efficient operation across multiple HVAC subsystems.
The drive is UL-listed for HVAC cabinet applications, and it offers IP protection with IP21 as standard and IP42/IP54 variants available. These ratings ensure reliability in typical indoor cabinet environments, while the UL listing provides confidence in safety and electrical protection during installation and operation.
