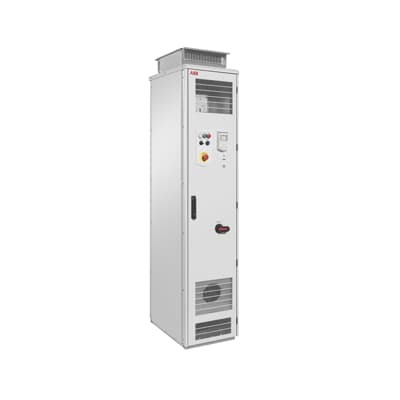

ABB 3AXD50000050474 ACH580 HVAC Drive - IP21
Part Number: 3AXD50000050474
Quick Summary
The ACH580 HVAC drive is a cabinet-built LV AC drive designed to control fans, pumps and compressors in commercial HVAC systems. For engineers tasked with reducing installation time and avoiding commissioning delays, its built-in HVAC-specific settings and intuitive control panel simplify startup and ongoing operation. The drive is offered in IP21 standard, with IP42 and IP54 variants available for more demanding environments, and it accommodates IEC ratings up to 450 kW at 400 V while delivering robust performance. By combining energy-efficient operation with easy configuration and remote monitoring via Bluetooth, this ABB solution delivers measurable business value for building owners and contractors.
Product Information
Extended Description
3AXD50000050474 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ready-made standalone cabinet-built ACH580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature: Built-in HVAC control functions enable precise modulation of fans, pumps and compressors, reducing energy use and extending equipment life. Business Impact: Lower operating costs and improved reliability for HVAC systems. Application: Air-handling units and chillers in commercial buildings. Feature: Cabinet-built design with standard IP21 and optional IP42/IP54 variants expedites installation and simplifies field wiring; Business Impact: Faster commissioning and easier maintenance; Application: New installs and retrofit upgrades in data centers and campuses. Feature: HVAC-specific control panel with a guided settings menu and help assistants shortens startup time; Business Impact: Quicker project handover and reduced commissioning risk. Application: On-site startup for multi-unit projects. Feature: Bluetooth capability enables remote commissioning and monitoring; Business Impact: Fewer site visits, faster diagnostics, and better asset management. Application: Remote support across multiple facilities. Feature: High-power rating up to 450 kW at 400 V with 820 A; Business Impact: Handles large HVAC loads efficiently; Application: Large air handling units and chillers. Feature: Robust protection and fault handling improve uptime; Business Impact: Compliance with maintenance schedules and reduced downtime. Application: Critical HVAC installations.
Get a Quick Quote for a ABB 3AXD50000050474
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000050474?
Enquire Now
FAQs
The ACH580 is a cabinet-built low-voltage drive with an HVAC-focused control interface designed for easy drop-in integration. It uses standard 400 V supply, supports up to 450 kW, and features an intuitive settings menu that matches common HVAC control hierarchies, reducing wiring changes and commissioning time.
Key specs include 450 kW IEC rating, 820 A at 400 V, IP21 standard with IP42/IP54 variants, and built-in capabilities to control fans, pumps and compressors. Bluetooth option supports remote commissioning and monitoring, helping maintain performance across multiple units.
Yes. The ACH580 is designed for HVAC equipment such as air-handling units, pumps and chillers, delivering precise speed control, energy efficiency, and reliable operation essential for large indoor climate systems and critical cooling applications.
The base configuration uses IP21 protection, with IP42 and IP54 variants available for higher protection. The drive is designed for HVAC environments and includes features to support safe operation, with Bluetooth and HVAC-specific settings to meet commissioning and regulatory expectations.
The ACH580 reduces installation and commissioning time, lowers energy consumption, and enables remote monitoring to cut service visits. ABB offers standard product support, firmware updates, and spare parts through authorized channels to sustain performance across facilities.
