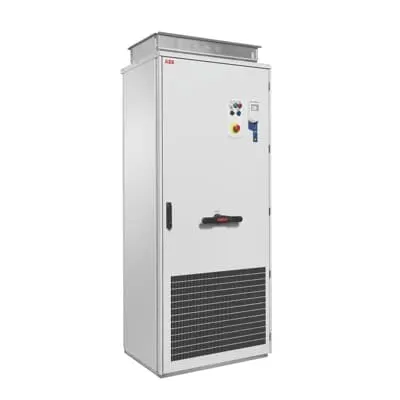

ABB 3AXD50000050478 LV AC Drive - IP54 Certified
Part Number: 3AXD50000050478
Quick Summary
ABB 3AXD50000050478 LV AC cabinet-built drive enables efficient pumping for water and wastewater systems. Operators often struggle with energy waste, unplanned downtime, and complex pump sequencing. This unit supports CE compliance, IP21/IP42/IP54 variants, and UL listings to meet global project requirements. With built-in energy calculator and intuitive control tools such as Drive Composer and a Hand-Off-Auto interface, it reduces lifecycle costs, minimizes service interruptions, and simplifies commissioning. Compatible with PLCs, SCADA, and fieldbus networks, it supports sensorless flow calculation, multipump control, level control, and dry run protection to meet the most demanding plant needs. This combination also supports energy savings reporting, helping procurement justify ROI.
Product Information
Extended Description
3AXD50000050478 ABB: The ACQ580-07 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact cabinet-built drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ready-made standalone cabinet-built ACQ580-07 variant comes in IP21 as standard. Also, IP42 and IP54 units are available.
Feature: Cabinet-built LV AC drive with integrated pump-application logic, sensorless flow calculation, multipump sequencing, and fast-start ramps. Impact: Reduces installation footprint, wiring complexity, and commissioning time while delivering reliable motor performance. Application: Water and wastewater pumping stations where compact footprint and robust protection support long-term reliability and easier serviceability. Feature: Sensorless flow calculation and multipump control enable precise flow matching and demand-driven operation. Impact: Optimizes energy use, reduces pump wear, and enables seamless sequencing across multiple pumps. Application: Pumping stations with multiple pumps and variable demand. Feature: Level control, soft pipe fill, and dry run protection. Impact: Protects pumps from dry running, minimizes water hammer, and extends impeller life. Application: Raw water intake, wastewater lift stations, and process tanks. Feature: Energy calculator, Hand-Off-Auto interface, Drive Composer PC tool, and optional Bluetooth panel. Impact: Demonstrates energy savings, simplifies operator training, and accelerates commissioning. Application: Plant-wide optimization and remote diagnostics across facilities. Feature: IP rating options IP21 standard; IP42/IP54 variants; cabinet-built options. Impact: Flexible installation in indoor/outdoor environments and challenging zones while maintaining protection. Application: Outdoor sites, humid or harsh environments.Feature: Compatibility with PLCs, SCADA, and fieldbus networks. Impact: Smooth integration with existing automation architecture preserves investments. Application: Industrial water treatment, municipal networks, and process facilities.
Get a Quick Quote for a ABB 3AXD50000050478
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000050478?
Enquire Now
FAQs
The cabinet-built design consolidates drive electronics with pump-application logic, reducing wiring and panel footprint. It supports PLC/SCADA integration and fieldbus networks, enabling seamless communication with existing automation architectures. Drive Composer and Hand-Off-Auto interfaces simplify operator training and commissioning, while the optional Bluetooth control panel enables field diagnostics without opening the cabinet.
Key specs include Pn 355 kW, 650 A, 400 V IEC and UL Pld 500 Hp, 623 A, 480 V. Sensorless flow calculation optimizes pump speed to meet demand without external sensors, reducing installation costs. Multipump control enables coordinated sequencing across multiple pumps, while soft-start ramps minimize water hammer and mechanical stress, improving overall system longevity.
Yes. The drive provides multipump control and level control features designed for multi-pump wastewater systems. Its compact cabinet and IP-rated variants support rugged environments, and the energy calculator helps quantify savings from coordinated pumping. This enables reliable start/stop, reduced energy consumption, and improved process stability in complex pump trains.
The unit is CE-compliant and UL-recognized for US installations. IP ratings start at IP21 and are available in IP42 and IP54 variants for harsher environments. These certifications and protections ensure electrical safety, reliability, and regulatory alignment across global projects, while maintaining compatibility with standard maintenance and retrofit programs.
ROI is driven by measurable energy savings from sensorless flow control, rapid commissioning via Drive Composer, and reduced downtime through dry run protection and diagnostic tools. Maintenance is simplified by intuitive interfaces, built-in protection features, and remote diagnostics via Bluetooth options, which minimize on-site service visits and extend pump lifecycle.
