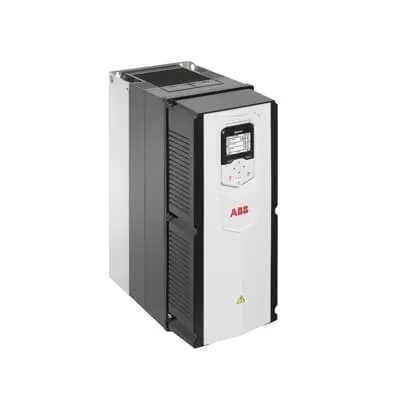

ABB 3AXD50000121038 Drive - Low Harmonic ACS880-31
Part Number: 3AXD50000121038
Quick Summary
ABB 3AXD50000121038 drive is a low harmonic LV AC industrial drive designed for cranes, conveyors, and pumps. When harmonic distortion and power quality issues threaten uptime and efficiency, this compact solution helps stabilize networks and reduce maintenance costs. The ACS880-31-based unit supports UL-certified safety and embraces industry-standard performance, including active voltage boost and power factor correction. Its wall-mounted design and integrated filtration simplify installation, reduce space needs, and deliver reliable control across demanding sectors such as oil and gas, mining, metals, chemicals, cement, and broad material handling. By combining robust protection with adaptable drive curves, it enables predictable performance while enabling cost savings through improved energy efficiency and reduced external hardware.
Product Information
Extended Description
3AXD50000121038 ABB: The ACS880-31 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-31 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction.
Feature integrated low harmonic line filter and active supply unit → Business Impact: dramatically reduces harmonic content without external filters, lowering energy waste and EMI; Application: conveyors, pumps, and fans in manufacturing lines. Feature output voltage boost and power factor correction → Business Impact: improved motor torque response and energy efficiency, reducing electrical losses; Application: 480 V networks in heavy industries. Feature wide industry applicability and customization within the ACS880-31 family → Business Impact: a single drive can cover cranes, extruders, winders, and more, cutting spare parts and maintenance costs; Application: oil & gas, mining, metals, chemicals, cement, power plants, and pulp & paper. Feature compact wall-mounted design → Business Impact: easier installation, faster commissioning, and reduced machine-room footprint; Application: control panels and harsh environments where space is at a premium. Feature low harmonic performance meeting industry recommendations → Business Impact: enhanced power quality, reduced transformer sizing needs, and smoother operation of sensitive equipment; Application: system-wide deployments in processing facilities. Feature compatibility with integrated control and protection features → Business Impact: simplified commissioning, fewer integration conflicts, and lower total cost of ownership; Application: retrofits and new line installations in automation plants.
Get a Quick Quote for a ABB 3AXD50000121038
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000121038?
Enquire Now
FAQs
This drive is designed for wall mounting and compact control panels. It requires three-phase power around 500 V and a current rating up to 21 A. Use the integrated active supply unit and low harmonic line filter to minimize external components. Route cables with proper shielding, follow the manufacturer’s wiring diagrams, and ensure motor data matches the 11 kW/21 A ratings for safe, reliable operation.
Key specs include an input/output rating of 11 kW (Pn), 21 A, and 500 V neutral-to-line. It is UL-associated with a 15 Hp, 21 A, 480 V reference in the UL context. The drive delivers low harmonic content through an integrated filter and active supply unit, with voltage boost and power factor correction to enhance motor performance across conveyors, cranes, pumps, and fans.
Yes. The ACS880-31 platform is designed for heavy-load applications including cranes, extruders, winders, conveyors, pumps, and fans. Its low harmonic design helps protect power infrastructure, while the integrated filter reduces external hardware. This makes it suitable for oil & gas, mining, metals, chemicals, cement, and large processing facilities seeking reliable control and improved energy efficiency.
The drive includes UL-compliant safety features suitable for industrial environments. It emphasizes low harmonic performance in line with industry recommendations, helping facilities maintain power quality compliance and reduce EMI-related concerns. Always verify local electrical code requirements and additional regional certifications for your installation.
The integrated low harmonic filter and active supply unit reduce the need for external components, lowering installation time and maintenance complexity. Energy savings come from improved power factor and reduced harmonic losses, translating to lower utility costs and longer motor life. Retrofit projects benefit from a smaller footprint and faster commissioning, delivering a favorable return on investment.
