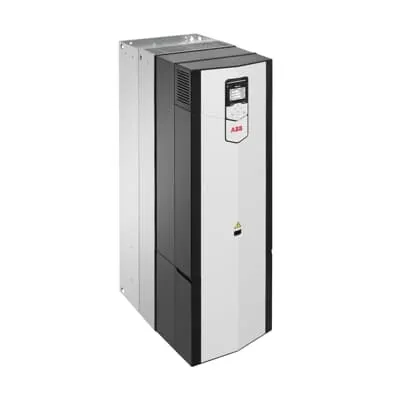

ABB ACS880-31-105A-3 Drive - Low Harmonic, Integrated Filter
Part Number: 3AXD50000121212
Quick Summary
The ABB ACS880-31-105A-3 drive is a low-harmonic, wall-mounted AC drive for industrial process control and material handling. Harmonics, power quality concerns, and the cost of external filters threaten uptime and project budgets. This drive family supports common safety and EMC standards, aligning with CE compliance and robust protective features while delivering integrated low-harmonic performance. It integrates an active supply unit and a low harmonic line filter, reducing external hardware and wiring complexity. By combining a compact footprint with built‑in power factor correction and output voltage boost, ABB helps engineers lower total cost of ownership and simplify compliance. Ideal for cranes, conveyors, pumps, and fans in heavy industries.
Product Information
Extended Description
3AXD50000121212 ABB: The ACS880-31 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-31 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction.
Feature: Low harmonic performance with integrated line filter → Business Impact: Delivers exceptionally low harmonic content, reducing the need for external filters and multi-pulse arrangements, which simplifies electrical design and reduces maintenance cost. Application: Suitable for critical loads like conveyors, pumps, and fans in process industries where power quality directly affects equipment life and downtime. Feature: Integrated active supply unit and line filter → Business Impact: Shortens installation time, lowers BOM, and reduces cabinet space by removing the need for external harmonic mitigation hardware. Application: Ideal for greenfield installs and retrofits in oil & gas, mining, and metals plants where space and simplicity matter. Feature: Output voltage boost and power factor correction → Business Impact: Improves motor torque at variable speed and reduces current draw, enhancing grid efficiency and lowering energy consumption. Application: Pumps, fans, and extruders in chemical, cement, and water/wastewater facilities where energy costs are a major concern. Feature: Compact, wall-mounted design → Business Impact: Saves panel space and enables easier service access, reducing commissioning time and cabinet costs. Application: Inventory-constrained or retrofits in heavy industry environments with tight layouts such as sawmills and material handling facilities. Feature: Broad application compatibility → Business Impact: Handles cranes, winders, winders, conveyors, mixers, pumps, and fans across oil & gas, mining, cement, metals, and automotive sectors, enabling a single drive platform for multiple loads. Application: Industrial automation environments seeking standardization and reliable performance.
Get a Quick Quote for a ABB 3AXD50000121212
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000121212?
Enquire Now
FAQs
The ACS880-31-105A-3 is designed for wall-mounted installation in LV AC environments with 400 V three-phase input. Use shielded cables for motor and supply connections, ensure proper enclosure rating and adequate clearance, and follow ABB installation guides for wiring and grounding. Its compact footprint supports straightforward retrofits and panel-space optimization.
The drive incorporates an integrated low harmonic line filter and an active supply unit, delivering exceptionally low harmonic content without external filters. This design reduces reactive power requirements and EMI, improving power quality for sensitive motors and simplifying compliance with EMC guidelines in industrial plants.
Yes. The ACS880-31-105A-3 supports applications such as cranes, conveyors, pumps, fans, and mixers, spanning industries like oil & gas, mining, metals, chemicals, and cement. Its control capabilities, compact form factor, and built-in harmonic mitigation make it a versatile choice for challenging material handling and process systems.
The ACS880-31-105A-3 is designed to align with common industry safety and EMC standards, including CE for electrical safety and EMI/EMC compliance. While exact certifications may vary by region, this family is engineered to support safety architectures such as SIL-rated approaches and appropriate IP-rated housings where required by the installation, enabling broader regulatory compatibility.
Integrated components reduce external BOM and simplify maintenance, lowering spare parts inventory and commissioning time. Improved power quality and built‑in PF correction can reduce motor wear and energy losses, contributing to lower operating costs and faster return on investment through reduced downtime and easier system integration with existing ABB automation.
