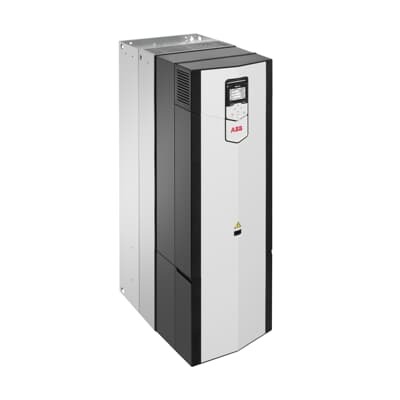

ABB ACS880-31 Drive 3AXD50000121274 - Ultra-low Harmonics
Part Number: 3AXD50000121274
Quick Summary
The ABB ACS880-31 drive is a wall-mounted LV AC drive for precise control in cranes, conveyors, and pumps. Engineers often struggle with harmonic distortion, external filters, and integration gaps between new drives and legacy equipment. Two critical standards play a pivotal role in selection—CE compliance for European markets, and SIL readiness for safety-critical tasks, along with robust IP-rated protection in harsh environments. The integrated line filter, active supply unit, and power-factor correction help lower installation costs while delivering reliable performance; this aligns with the needs of industries like oil and gas, mining, and processing. For procurement teams, the compact footprint and broad application coverage translate to lower total cost of ownership and faster project ramp-ups in industrial automation programs.
Product Information
Extended Description
3AXD50000121274 ABB: The ACS880-31 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans. The compact ACS880-31 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction.
Feature: Ultra-low harmonic performance with an integrated active supply unit and line filter. Business Impact: Delivers exceptionally low harmonic content, eliminating the need for external filters and reducing total installation cost. Application: Suitable for oil and gas, mining, chemicals, cement, and material handling where power quality is critical. Feature: Output voltage boost and built-in power factor correction. Business Impact: Improves motor torque at critical operating points and enhances overall system efficiency. Application: Pumps, fans, and conveyors facing voltage drop or limited transformer capacity. Feature: Compact, wall-mounted form factor with integrated line filter. Business Impact: Simplifies installation, reduces panel space, and lowers wiring complexity. Application: Factory floors with constrained footprint and environments demanding rapid deployment. Feature: Customizable ACS880-31 platform for industry-specific needs. Business Impact: Accelerates project timelines, ensures compatibility with cranes, winches, winders, mixers, and pumps. Application: Material handling, process plants, and marine applications. Feature: Robust protection and reduced maintenance through integrated features. Business Impact: Fewer components to service, improved uptime, and lower maintenance labor. Application: Mission-critical processes in chemical plants, refineries, and water/wastewater facilities.
Get a Quick Quote for a ABB 3AXD50000121274
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000121274?
Enquire Now
FAQs
Begin with a suitable 3-phase 400 V supply and mount the drive in a compliant enclosure to avoid overheating. Connect the integrated active supply unit and low harmonic line filter, then wire fieldbus or I/O as required. Ensure adequate ventilation and the correct cable routing to minimize interference. Commission with standard ACS880 start-up procedures and verify motor protection settings for safe operation.
The ACS880-31 delivers exceptionally low harmonic content thanks to its integrated line filter and active supply unit, reducing the need for external harmonic mitigation devices. This enhances power quality, minimizes filter-related losses, and supports smoother operation of motors in cranes, conveyors, and pumps, even in systems with limited transformer capacity.
Yes. The drive is designed for heavy industry applications and broad motor control, including cranes, winches, winders, conveyors, mixers, pumps, and fans. Its compact wall-mount form factor, integrated protections, and PF correction make it ideal for space-constrained, high-demand environments like oil & gas, mining, and chemicals.
Key considerations include CE compliance for European regions and SIL readiness for safety-critical tasks, along with appropriate IP protection for the installation environment. Always confirm the exact certification status with ABB for your region and ensure the drive configuration meets regional safety and electrical standards before deployment.
The integrated low harmonic filter and PF correction reduce external components and energy waste, lowering upfront and ongoing maintenance costs. The compact footprint speeds installation, while improved power quality and uptime decrease unplanned downtime, delivering a favorable total cost of ownership in production lines such as processing, material handling, and water treatment.
