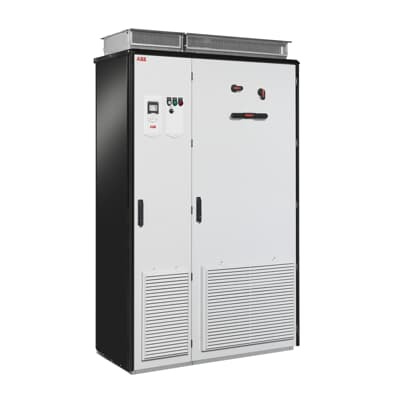

ABB ACS880-37-0414A-5 Drive - IEEE 519-compliant
Part Number: 3AXD50000146109
Quick Summary
ACS880-37-0414A-5 drive controls large motors in harsh industrial settings, delivering precise speed and torque. Harmonics can disturb or damage sensitive equipment and drive up energy costs across the plant. It complies with IEEE 519, IEC 61000-3-2/3-12, and EC61000-3-4, with an IP54 rugged enclosure that stands up to demanding environments. In addition to harmonic suppression, it supports network power factor correction and tailored configurations that reduce losses and improve overall efficiency, making it a robust choice for industrial automation and heavy-duty motor control.
Product Information
Extended Description
3AXD50000146109 ABB: Harmonic distortions can disturb or even damage sensitive equipment connected in the same environment. Harmonics also cause additional losses in the network. =20
The ACS880-37 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements of harmonic guidance/standards such as IEEE 519, IEC61000-3-2, IEC61000-3-12, EC61000-3-4 and G5/4. Compared to a conventional drive, the harmonic content is reduced by up to 97%. The total harmonic current distortion is typically <3% in a nominal situation and an undistorted network.
The drive offers the possibility for network power factor correction to compensate for the low power factors of equipment connected to the same network. Lower harmonics and full motor voltage at all times mean reduced system losses and better overall system efficiency.
The ACS880-37 comes with wide variety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices. The robust design and enclosures up to IP54 make the ACS880-37 suitable for even very harsh environments.
Ultra-low harmonic drive performance reduces harmonic currents and helps protect downstream equipment, delivering consistent motor voltage and improving grid power quality. This translates to lower transformer losses, reduced energy waste, and easier compliance with IEEE 519 standards in applications like pumps, conveyors, and processing lines. Power factor correction capability enhances overall plant efficiency and can minimize utility penalties in facilities with diverse electrical loads. Standard configurations and ABB Order-Based Engineering enable fast deployment and tailored cabinets for harsh environments, speeding up commissioning and reducing downtime. The IP54 enclosure and rugged design support outdoor or semi-exposed installations, lowering maintenance needs and extending motor life. Compatibility with ABB motor control ecosystems and protection features ensures seamless integration with existing controls and safety interlocks, supporting safe-start, soft-start, and reliable stop sequences.
Get a Quick Quote for a ABB 3AXD50000146109
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000146109?
Enquire Now
FAQs
Plan for a three-phase supply up to 414 A and verify the IP54 enclosure suits your environment. Ensure PLC or DCS integration via standard interfaces, and leverage ABB's standardized configurations for straightforward mounting, wiring, and commissioning. If your application requires a tailored solution, Order-Based Engineering can deliver cabinet layouts and additional devices to fit your control architecture without extended downtime.
The ACS880-37-0414A-5 uses active harmonic control to suppress harmonic currents, typically delivering less than 3% THD under nominal conditions and achieving significant reductions relative to conventional drives. Compliance with IEEE 519, IEC 61000-3-2/12, and related standards ensures improved power quality, reduced electrical stress on networks, and smoother operation of interconnected equipment.
Yes. The 250 kW, 414 A model is designed for large motors in conveyors, pumps, and processing lines. Its rugged IP54 enclosure supports harsh environments, while standardized configurations and flexibility for motor control options (soft start, safe-stop, and motor protection) enable reliable operation with minimal downtime and easy maintenance in demanding applications.
Key standards include IEEE 519, IEC 61000-3-2/12, and EC61000-3-4, all integrated into the drive’s design. During commissioning, verify harmonic levels on the network, enable any required power factor correction, document THD performance, and confirm protective features. ABB’s engineering services can assist with documentation, test reports, and cabinet configurations to ensure full regulatory compliance.
ROI is driven by energy savings from reduced harmonics and improved efficiency, along with reduced maintenance downtime from a robust, reliable drive. Maintenance focuses on cooling system checks, firmware updates, and periodic inspection of connections. Leveraging ABB service networks and remote diagnostics helps sustain performance, maximize uptime, and protect asset integrity over the drive’s service life.
