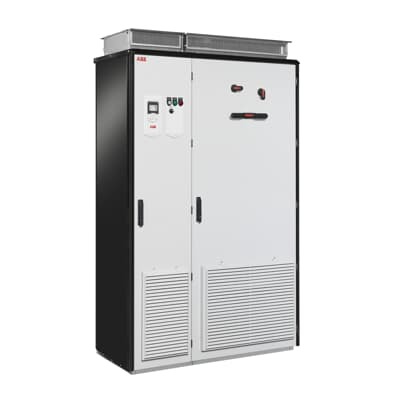

ABB 3AXD50000158089 ACS880-37 UltraLow Harmonics - IEEE519
Part Number: 3AXD50000158089
Quick Summary
The ACS880-37 ultra-low harmonic drive from ABB delivers precise motor control for demanding industrial plants. Harmonics in shared electrical networks can cause equipment wear, flicker, and higher energy losses, so reducing distortion is critical for reliability and efficiency. It is designed to meet IEEE 519 and IEC 61000-3-2/3-12 standards, EC61000-3-4, and is offered with IP54 protection for demanding environments. Network power factor correction and configurable protections further boost efficiency and reduce operating costs. With ABB’s Order-Based Engineering, users gain tailored configurations that fit existing motor architectures, easing installation and maintenance while delivering consistent performance across production lines.
Product Information
Extended Description
3AXD50000158089 ABB: Harmonic distortions can disturb or even damage sensitive equipment connected in the same environment. Harmonics also cause additional losses in the network. =20
The ACS880-37 ultra-low harmonic drive produces exceptionally low harmonic content and exceeds the requirements of harmonic guidance/standards such as IEEE 519, IEC61000-3-2, IEC61000-3-12, EC61000-3-4 and G5/4. Compared to a conventional drive, the harmonic content is reduced by up to 97%. The total harmonic current distortion is typically <3% in a nominal situation and an undistorted network.
The drive offers the possibility for network power factor correction to compensate for the low power factors of equipment connected to the same network. Lower harmonics and full motor voltage at all times mean reduced system losses and better overall system efficiency.
The ACS880-37 comes with wide variety of standardized configurations for different application requirements, from line contactors, to preventing unexpected motor starts. If the application requires more, ABB=E2=80=99s Order-Based Engineering services can add special features to the standard product, such as an additional cabinet for customer-specific devices. The robust design and enclosures up to IP54 make the ACS880-37 suitable for even very harsh environments.
Feature → Business Impact → Application: The ACS880-37 delivers exceptionally low harmonic content, reducing total harmonic distortion to typically less than 3% in nominal operation, which directly lowers losses and improves drive efficiency in motor installations. This supports a more stable electrical network and protects sensitive equipment on the same bus, ideal for manufacturing cells with high-power motors and sensitive instrumentation. Feature → Business Impact → Application: Built-in network power factor correction helps compensate for low power factors of connected devices, enabling energy savings and better grid interaction across the plant. This is particularly valuable in facilities with legacy motors and highly inductive loads that demand tighter power quality control. Feature → Business Impact → Application: The drive ships with a broad set of standardized configurations—from line contactors to protective interlocks—making the initial integration straightforward and reducing panel-footprint costs. Application includes complex lines in packaging, metalworking, and process industries where reliability is non-negotiable. Feature → Business Impact → Application: ABB’s Order-Based Engineering capability allows adding customer-specific devices and cabinets, delivering a customized solution without sacrificing standardization. This minimizes downtime during retrofits and accelerates commissioning in capital projects. Feature → Business Impact → Application: The robust enclosure and rugged design (IP54) enable deployment in harsh environments, reducing enclosure-related failures and shortening time-to-operation in plants with dust, moisture, and temperature variations. Application includes cement, mining, and chemical processing facilities where environmental protection is essential.
Get a Quick Quote for a ABB 3AXD50000158089
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000158089?
Enquire Now
FAQs
installation requires verifying motor rating (110 kW, 206 A), selecting an appropriate cabinet option (IP54 if exposed to harsh conditions), and using standard configurations or ABB Order-Based Engineering for customization. Ensure proper electrical isolation, wiring per local codes, and proper motor protection settings to achieve the intended harmonic performance and protection features.
The drive delivers harmonic current distortion typically below 3% in nominal operation and can reduce harmonic content by up to 97% compared with conventional drives. This improves power quality, reduces losses, and supports compliance with IEEE 519 and IEC61000-3-2, making it suitable for networks with sensitive equipment.
Yes. With 110 kW rating and 206 A input current, the ACS880-37 is designed for demanding production lines. Its IP54-rated enclosure, configurable protections, and standardized or customizable configurations enable reliable operation in demanding environments such as metalworking, plastics, and packaging where high-power motors are common.
The drive complies with IEEE 519, IEC61000-3-2, IEC61000-3-12, and EC61000-3-4, aligning with global harmonic and emissions guidelines. This reduces interference with other equipment, supports regulatory compliance for electrical systems, and mitigates regulatory risk in regulated industries.
ROI comes from reduced energy losses due to harmonic mitigation, lower motor wear from smoother operation, and fewer outages thanks to robust protections. Maintenance focuses on firmware updates, periodic health checks, and leveraging ABB’s engineering services for tailored configurations, ensuring long-term reliability and predictable maintenance costs.
