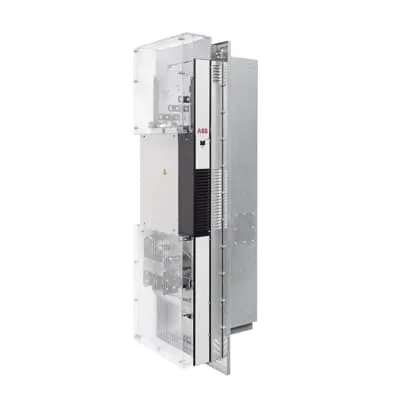

ABB 3AXD50000158935 Drive Module - ACS880-04F-369A-7
Part Number: 3AXD50000158935
Quick Summary
ABB ACS880 drive module 3AXD50000158935 is a flange-mounted LV AC drive for high-power industrial machinery. Installing large drives in compact enclosures often challenges space, wiring, and cooling efficiency. UL-listed performance and an IEC-based drive architecture underpin reliable operation in demanding environments, while compact integration supports scalable automation. By leveraging the ACS880 family, this module delivers streamlined control, reduced wiring complexity, and lower total cost of ownership for modern manufacturing lines and process equipment.
Product Information
Extended Description
3AXD50000158935 ABB: Flange mounting (push through mounting) version of ACS880-04
Flange-mounted design enables space-saving installation and through-mount wiring, reducing cabinet depth and installation time while improving airflow around the drive. This directly translates to lower enclosure costs and easier maintenance in tight automation environments. The 355 kW, 369 A, 690 V specification delivers high-power control for demanding motors, improving process stability and energy efficiency across conveyors, pumps, and fans. UL-listed performance reinforces compliance with safety and reliability requirements, helping to meet procurement standards and regulatory expectations. Compatibility with the ACS880-04 frame family simplifies spare parts planning and commissioning, enabling faster project start-up and consistent performance across multiple lines. Push-through mounting and ABB’s integrated control protocols reduce wiring errors, while built-in fault protection and diagnostics minimize unplanned downtime. Industry-specific benefits include improved motor control precision for CNC machinery and cleaner acceleration profiles for material-handling systems. This drive module also supports scalable integration with ABB’s digital ecosystem for remote monitoring and maintenance planning. Overall, users gain measurable efficiency gains, improved uptime, and a clearer path to standardization across their drive systems.
Get a Quick Quote for a ABB 3AXD50000158935
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000158935?
Enquire Now
FAQs
Yes. The 3AXD50000158935 is a flange-mounted variant of the ACS880-04 family and is designed to integrate with standard ACS880 drive architecture. Ensure the enclosure supports push-through mounting and verify terminal layouts and cooling clearances during installation to maintain optimal performance.
The module provides 355 kW nominal power, 369 A current, and operates at 690 V. In UL configurations, it corresponds to a Pld rating of 350 Hp around 360 A at 575 V. These specs support high-power motor control for heavy-duty conveyors and pumps while maintaining efficient energy usage.
The flange-mounted ACS880-04F variant is designed for industrial use with robust electrical performance. It supports reliable motor control in continuous-duty applications like conveyors and pumps. For harsh environments, pair the drive with a suitable enclosure and cooling strategy and follow ABB installation guidelines to maximize uptime and protection.
The model carries UL-listed performance and is designed around IEC-based drive architecture for reliability in industrial settings. Exact certification scope should be verified in the official datasheet for your target region, but the UL listing supports safety compliance and industrial-grade performance.
Expect reduced downtime through robust fault protection, diagnostics, and compatibility with ABB’s remote monitoring tools. The flange-mount design lowers installation time and enclosure costs, while the high-efficiency operation minimizes energy usage. Over time, these factors contribute to faster payback, predictable maintenance planning, and standardized drive architecture across multiple lines.
