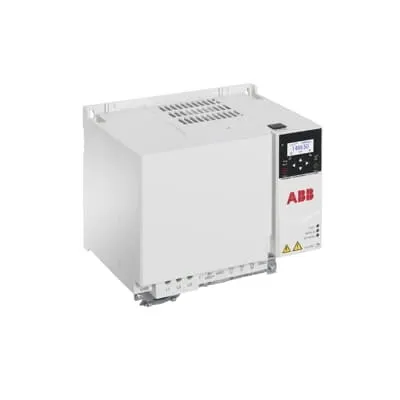

ABB 3AXD50000162055 Machinery Drive Module - 11 kW
Part Number: 3AXD50000162055
Quick Summary
ABB 3AXD50000162055 is an LV AC machinery drive module for 11 kW applications powering automated lines. Many engineers struggle with safely integrating new drives into existing control architectures and maintaining consistent performance under varying loads. This module includes UL-listed electrical compliance and functional safety features, with PROFIsafe over PROFINET enabling safe-stop integration into the machine safety system. Together with adaptive programming and straightforward installation, it offers faster commissioning, reduced wiring, and scalable control for conveyors, mixers, EOT cranes, and textile machinery. Industry teams appreciate the compact form factor and seamless compatibility with ACS380 family variants. This combination translates to predictable uptime and lower total cost of ownership across production lines.
Product Information
Extended Description
3AXD50000162055 ABB: The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It=E2=80=99s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery.
With the integrated functional safety features, the ACS380 drive can be also part of the machine=E2=80=99s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive=E2=80=99s software can be easily customized with adaptive programming to match any specific application requirements.
Built-in power rating and voltage tolerance empower direct motor control; the ACS380 module delivers 11 kW nominal power with 208–230 V input, supporting up to 48 A peaks. This reduces the need for external transformers and minimizes panel wiring, cutting both install time and potential fault points. In machine lines such as mixers, conveyors, EOT cranes, and textile equipment, this compact drive simplifies integration and accelerates commissioning. Safety features: The drive includes integrated functional safety capabilities and PROFIsafe over PROFINET, enabling safe-stop and protective interlocks without a separate safety PLC. This translates to lower risk, quicker safety validation, and shorter downtime when safeguarding critical equipment. Industries like food & beverage and material handling benefit from compliant safety communication across the automation backbone. Programmability: Adaptive programming supports application-specific logic, reducing engineering hours and enabling on-the-fly tuning for torque curves, acceleration profiles, and soft-start behavior. As processes shift, the drive remains adaptable, minimizing rework and enabling consistent performance. This is particularly valuable for lines with changing product grades or seasonal demand. Installation and compatibility: The module is designed for straightforward panel deployment, with compatible variants in the ACS380 family to match motor sizes and control architectures. Faster wiring, fewer connectors, and robust PROFINET integration ensure reliable data exchange and easier diagnostics. For retrofit projects, this means shorter downtime and smoother migration from legacy drives. Industry value and ROI: By combining safety, efficiency, and ease of use, the ACS380 module reduces energy waste through optimized motor control and lowers lifecycle costs through extended motor life and reduced spare parts. Operators gain predictable performance, while maintenance teams appreciate clear diagnostics and faster fault isolation in high-demand facilities.
Get a Quick Quote for a ABB 3AXD50000162055
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000162055?
Enquire Now
FAQs
To install ABB 3AXD50000162055 ACS380 with a 230 V motor, confirm motor rating and drive compatibility (11 kW, 48 A). Mount the drive in a suitable enclosure, wire the 230 V input, connect the motor leads, and configure motor parameters. Enable safety features, and set up PROFIsafe if required. Verify operation with a controlled start and run test.
Key specifications include 11 kW nominal power, 48 A current (46.2 A UL listed, 15 HP), and a 208–230 V input. The drive supports LV AC operation, is UL-listed for electrical compliance, and integrates with PROFINET using PROFIsafe for safe-stop functionality. Applications span mixers, conveyors, EOT cranes, extruders, and textile equipment.
Yes. The ACS380 module is designed for applications such as conveyors, mixers, extruders, EOT cranes, and textile machinery. Its 11 kW rating and 230 V input support robust motor control, while adaptive programming and safety features enable reliable performance in continuous production environments typical of material handling, textile, and processing lines.
The drive is UL-listed for electrical compliance and includes integrated functional safety features with PROFIsafe over PROFINET for safe-stop operations. This reduces the need for separate safety PLCs, simplifies validation, and helps meet regulatory expectations in industries requiring high safety standards and dependable diagnostics.
ACS380 offers faster commissioning and reduced wiring, thanks to its integrated drive and compact design. Adaptive programming lowers engineering effort, while diagnostics and safe functionality improve uptime and fault isolation. Over time, energy-efficient motor control and simplified safety architectures contribute to a lower total cost of ownership.
