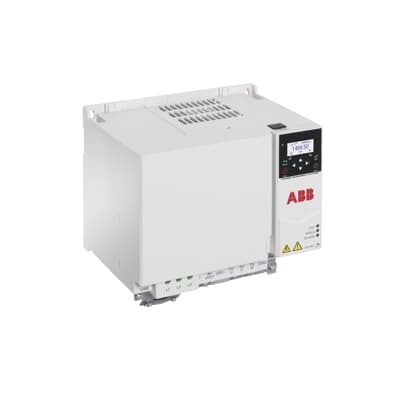

ABB 3AXD50000162246 LV AC Machinery Drive - IEC 18.5 kW
Part Number: 3AXD50000162246
Quick Summary
ACS380 machinery drive from ABB delivers flexible LV AC motor control for packaging, material handling, and textile machinery. Engineers often face lengthy integration cycles and downtime when adding drives to complex machines. UL-listed protection plus integrated functional safety via PROFIsafe over PROFINET allow the drive to participate in the machine safety system, stopping motion only when required. Adaptive programming and straightforward PLC integration reduce commissioning time, while scalable performance supports future upgrades without changing hardware. Designed for demanding lines such as mixers, conveyors, EOT cranes, extruders, and textile equipment, it delivers reliable control with efficient energy use.
Product Information
Extended Description
3AXD50000162246 ABB: The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It=E2=80=99s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery.
With the integrated functional safety features, the ACS380 drive can be also part of the machine=E2=80=99s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive=E2=80=99s software can be easily customized with adaptive programming to match any specific application requirements.
Integrated safety with PROFIsafe over PROFINET is a core feature, enabling safe stop sequences and compatibility with machine safety systems while reducing wiring and panel space. This drives faster, simpler compliance and lower integration risk on conveyors and mixers. PROFINET connectivity and direct PLC integration shorten commissioning cycles, minimize wiring complexity, and support seamless data exchange with automation systems used in packaging and material handling. Adaptive programming lets you tailor acceleration curves, torque limits, and control strategies to your process, cutting energy waste and downtime while improving process stability in extrusion lines and textile machinery. UL listing and robust electrical ratings—18.5 kW at 400 V with 38 A, and 25 Hp at 480 V in UL scenarios—translate to proven reliability and easier supplier qualification for plant floors. The compact module design and compatibility with common ABB drive accessories simplify retrofits and new-install projects across food & beverage, material handling, and textile applications, reducing installation costs and panel footprint. Flexible industry variants and scalable performance help OEMs plan for growth without hardware changes, delivering long-term value through unified drive control and predictable maintenance.
Get a Quick Quote for a ABB 3AXD50000162246
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000162246?
Enquire Now
FAQs
To install ACS380 with this model, ensure a 400 V supply capable of 38 A continuous load, plan a compact panel layout, and route shielded fieldbus and motor cables carefully. Connect PROFINET for PLC communication and enable PROFIsafe integration where safety interlocks are required. Verify UL-listed components and follow ABB wiring guidelines to reduce commissioning time and ensure reliable operation.
This drive supports up to 18.5 kW of motor power with a 38 A current rating at 400 V. In UL scenarios, it corresponds to a 25 Hp rating at 480 V. Typical torque and speed profiles can be tuned via adaptive programming, allowing smooth starts, controlled ramps, and efficient operation across conveyors, mixers, and textile equipment.
Yes. The drive is designed for food & beverage, material handling, and textile machinery, including mixers, conveyors, EOT cranes, extruders, and textile equipment. Its safety integration, scalable software, and easy PLC compatibility make it a strong choice for OEMs and integrators aiming to improve uptime and repeatable performance on packaging lines and textile processes.
The ACS380 is UL-listed for industrial use and supports integrated safety features via PROFIsafe over PROFINET, enabling safe motor control within machine safety systems. While CE and IP ratings are industry expectations for many drives, the explicit data provided confirms UL listing and PROFIsafe safety integration as key certification-related strengths.
ROI improves through faster commissioning, reduced wiring, and safer, more reliable operation thanks to PROFIsafe integration. Built-in diagnostics and stable motor control reduce unplanned downtime, while adaptive programming lowers energy waste. Overall, maintenance intervals lengthen, spare parts needs drop, and uptime improves for lines in packaging, textiles, and material handling.
