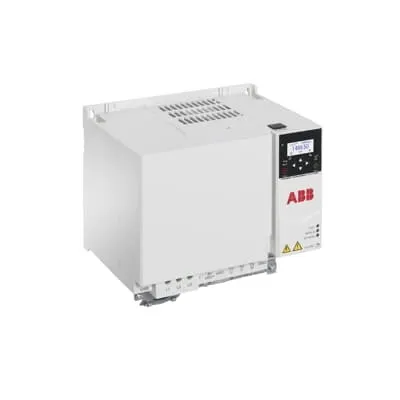

ABB 3AXD50000162253 - LV AC Machinery Drive UL 30 Hp, 40 A
Part Number: 3AXD50000162253
Quick Summary
The ACS380 machinery drive is a compact LV AC drive enabling precise motor control for packaging and material handling. Many users struggle with machine integration, safety compliance, and downtime when scaling automation across lines. It supports integrated safety with PROFIsafe over PROFINET and UL-rated power capabilities, helping you meet safety and procurement requirements. With adaptive programming and robust protection, it also delivers predictable, scalable performance for evolving production needs.
Product Information
Extended Description
3AXD50000162253 ABB: The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It=E2=80=99s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery.
With the integrated functional safety features, the ACS380 drive can be also part of the machine=E2=80=99s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive=E2=80=99s software can be easily customized with adaptive programming to match any specific application requirements.
The ACS380 drive module is designed to fit compact panels, reducing enclosure footprint and simplifying installation while delivering reliable motor control for packaging lines and textile machinery. Business impact: faster commissioning and easier field upgrades, which shorten project lead times and lower capital expenditure. Application: conveyors, mixers, and extruders on manufacturing lines benefit from streamlined wiring and compact enclosure integration. The drive’s integrated PROFIsafe over PROFINET enables safety-critical stops and safe restarts without external safety relays, improving compliance and reducing wiring complexity. Application: material-handling conveyors and EOT crane systems can rely on a safer, more maintainable safety architecture with fewer integration points. Adaptive programming allows on-site tuning for torque, speed, and process dynamics, delivering energy savings and process stability. Application: textile machinery and mixers with varying production recipes gain consistent performance with reduced operator intervention. The 22 kW class power rating, 400 V supply, and UL 30 Hp/40 A capability provide robust performance for high-duty cycles while enabling easy upgrades within existing lines. Application: upgrade projects on packaging and food-processing equipment. The drive supports industry-standard interfaces and easy commissioning within ABB’s ACS380 family, offering familiar software tools and minimal rework when replacing legacy drives. Application: retrofits and new line builds alike benefit from proven compatibility and faster time-to-value. Overall, operators experience lower downtime, predictive diagnostics, and a clearer path to regulatory compliance across manufacturing environments.
Get a Quick Quote for a ABB 3AXD50000162253
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000162253?
Enquire Now
FAQs
This LV AC machinery drive is designed to fit within standard control panels and compatible with ABB ACS380 variants. Plan for proper enclosure space, standard AC wiring practices, and ProfiNet/PROFIsafe network integration. Ensure power, control, and feedback wiring meet the device’s 400 V class requirements and that the safety network is configured to support safe-stop and safe-restart functionality.
Expect a 22 kW drive with approximately 45 A at 400 V, supporting high-torque startup and smooth speed regulation. The UL-rated configuration corresponds to 30 Hp and 40 A on a 480 V variant. Real-world performance depends on motor sizing, load profile, and network configuration, but you’ll gain improved energy efficiency and precise control for conveyors and mixers.
Yes. The ACS380 is intended for machines such as mixers, conveyors, EOT cranes, extruders, and textile equipment. Its programmable control and integrated safety features enable reliable operation in continuous production environments, while its networking capabilities simplify integration with existing automation architectures.
The drive includes safety-forward features via PROFIsafe over PROFINET for safe stop/restart and leverages UL-rated performance for robust electrical safety. While the data confirms UL references and functional safety capabilities, verify CE conformity with your regional requirements during procurement and installation planning.
Key benefits include reduced downtime through diagnostics, adaptive programming for process optimization, and easier maintenance with fewer external safety components due to PROFIsafe integration. These factors translate to faster commissioning, lower engineering costs, and improved throughput across packaging, material handling, and textile applications.
