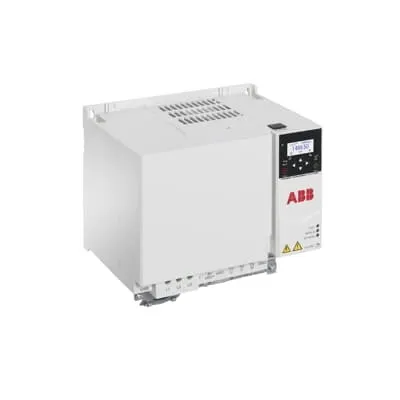

ABB 3AXD50000162284 ACS380 Drive Module - PROFIsafe
Part Number: 3AXD50000162284
Quick Summary
ACS380 drive is a compact LV AC machinery drive that enables precise motor control for conveyors and mixers. Engineers often wrestle with integration, safety compliance, and uptime during machine modernization. Its integrated functional safety features support PROFIsafe over PROFINET, helping to meet machinery safety expectations and simplify audits. This drive also supports adaptive programming to tailor performance to exact applications, enhancing reliability. In industrial automation terms, it couples seamlessly with equipment like mixers, conveyors, EOT and textile machinery, delivering predictable outcomes. The ABB solution improves energy efficiency and reduces lifecycle costs, while offering scalable options for food & beverage, material handling, and textile sectors.
Product Information
Extended Description
3AXD50000162284 ABB: The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It=E2=80=99s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery.
With the integrated functional safety features, the ACS380 drive can be also part of the machine=E2=80=99s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive=E2=80=99s software can be easily customized with adaptive programming to match any specific application requirements.
Feature: Integrated PROFIsafe over PROFINET enables safe motor control and automatic safe stop. Business impact: Reduces risk, simplifies safety audits, and minimizes downtime during changes to the safety system. Application: Suitable for conveyors, mixers, and textile machinery lines seeking seamless safety integration. Feature: Adaptive programming allows on-site customization of control logic without extensive software rewrites. Business impact: Shortens commissioning time, lowers engineering costs, and delivers process-specific performance. Application: Use in packaging lines, material handling conveyors, and textile machines requiring precise timing and torque profiles. Feature: Power versatility with 18.5 kW at 400 V and UL-capable 25 Hp at 480 V, 34 A. Business impact: Enables direct replacement or retrofit on existing 400 V or 480 V systems, reducing wiring changes and spare-part variety. Application: Ideal for mixers, EOT cranes, and conveyors in food & beverage, manufacturing, and textile environments. Feature: Industry-focused design supports reliable operation in demanding environments. Business impact: Improves uptime, reduces maintenance cycles, and strengthens process consistency. Application: Food & beverage lines, material handling setups, and textile production facilities. Feature: Easy integration with automation ecosystems and modular architecture. Business impact: Simplifies deployment, accelerates project timelines, and lowers total cost of ownership. Application: Retrofit projects and new installations across industrial automation platforms.
Get a Quick Quote for a ABB 3AXD50000162284
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000162284?
Enquire Now
FAQs
For installation, ensure compatibility with 400 V nominal and 480 V UL configurations, plan for proper wiring to support 38 A at 400 V (and 34 A at 480 V), and allocate space for the module within the control cabinet. Verify PROFINET/PROFIsafe wiring integrity and integrate with existing PLCs to achieve seamless safety interlocks and control sequencing.
PROFIsafe over PROFINET enables safe stop and safe operation within the automation network, allowing the ACS380 to participate in the machine safety system. This reduces risk during start/stop sequences, supports compliance with safety procedures, and simplifies auditing by providing verifiable safety communication between the drive, controller, and safety devices.
Yes. The 18.5 kW (400 V) and UL 25 Hp (480 V) ratings support high-torque, variable-speed control for conveyors and mixers, while the module’s adaptive programming enables process-specific tuning. It is well-suited for textile machinery and textile-related conveyors, offering precise speed control, reliability, and scalable integration in automation lines.
The ACS380 includes integrated functional safety features that support PROFIsafe over PROFINET, enabling safe motor stopping and coordination with safety PLCs or controllers. While exact certifications vary by installation, these capabilities help meet machinery safety expectations and facilitate safer commissioning, testing, and ongoing audits in manufacturing facilities.
Upgrading to the ACS380 reduces downtime through safer, faster commissioning and adaptive programming that tailors performance to exact processes. Energy efficiency improvements arise from optimized motor control, while modular design and easy integration lower total cost of ownership by reducing spare parts, simplifying maintenance, and enabling scalable upgrades across conveyors, mixers, and textile lines.
