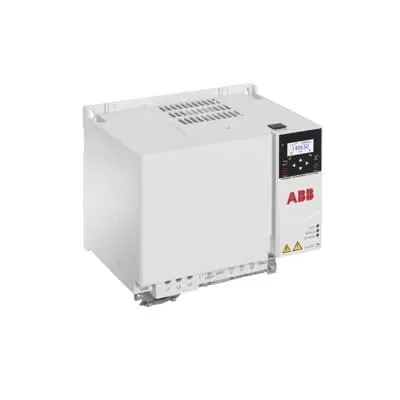

ABB 3AXD50000162321 LV AC machinery drive module - PROFIsafe over PROFINET
Part Number: 3AXD50000162321
Quick Summary
LV AC machinery drive module provides precise motor control for food processing lines, conveyors, and textile equipment. Engineers often struggle with integrating drives into machine safety systems and automation networks, leading to longer commissioning times. This ACS380-based module offers integrated functional safety features and seamless PROFINET connectivity, enabling safer operations with PROFIsafe. It supports easy adaptive programming to match specific applications, reducing engineering effort and total cost of ownership. In addition to core motor control, the solution aligns with industrial automation workflows and safety standards, delivering reliability, scalability, and better lifecycle value for machinery builders and end users.
Product Information
Extended Description
3AXD50000162321 ABB: The ACS380 machinery drive comes in several variants ensuring seamless integration into machines and connecting perfectly to automation systems. It=E2=80=99s a great fit for industries such as food and beverage, material handling and textile. Typical applications include mixers, conveyors, EOT and tower cranes, extruders and textile machinery.
With the integrated functional safety features, the ACS380 drive can be also part of the machine=E2=80=99s safety system via PROFIsafe over PROFINET, ensuring the motor is safely stopped when required. In addition, the drive=E2=80=99s software can be easily customized with adaptive programming to match any specific application requirements.
Feature integrated safety features with PROFIsafe over PROFINET → Business impact ensures safe motor control and easier risk management, reducing downtime and compliance concerns → Application conveyors, mixers, and textile machinery benefit from safer start/stop and integrated safety logic. Feature compact integration and variant support → Business impact speeds up installation and reduces panel complexity, lowering commissioning time and wiring costs → Application machine builders gain plug‑and‑play compatibility with existing automation architectures. Feature 18.5 kW power rating at 400 V (38 A) → Business impact improves torque delivery and energy efficiency, delivering stable performance for demanding loads → Application heavy conveyors and mixers benefit from reliable drive output and smoother process control. Feature adaptive programming capability → Business impact shortens customization cycles and enables precise control tuning for unique processes → Application textile machinery and packaging lines achieve optimized throughput with minimal bespoke coding. Feature built‑in safety and machine integration readiness → Business impact supports a safer production environment and regulatory compliance while preserving uptime → Application EOT cranes, mixers, and handling systems benefit from reduced integration effort and improved safety margins.
Get a Quick Quote for a ABB 3AXD50000162321
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000162321?
Enquire Now
FAQs
This module requires proper enclosure and mains connections for 400 V three‑phase power, with correct cabling and network wiring for PROFINET safety communication. Plan space for cooling, ensure compliant wiring practices, and verify safety interlocks align with the machine’s risk assessment. Check local codes and ABB guidelines during panel design.
PROFIsafe over PROFINET enables the drive to participate in the machine's safety system, stopping the motor when a safe state is required. It provides deterministic safety signaling, reducing risk without extra safety controllers. This streamlines compliance, lowers integration complexity, and supports safer machine operation across automation networks.
Yes. The ACS380 module is positioned for industries like food & beverage, material handling, and textile. Its integration capabilities with PROFINET, adaptive programming, and robust motor control support precise speed profiles and reliable operation in harsh production environments, helping minimize product quality variance and downtime in conveyors and mixers.
Key specs include 18.5 kW nominal power (Pn) with 38 A current at 400 V. The UL rating references 25 Hp at 34 A and 480 V for credible electrical compliance. These figures translate to strong torque delivery, good stall protection, and compatibility with standard industrial motors used in conveyors and processing lines.
Adaptive programming reduces commissioning time, while integrated safety features lower risk and potential downtime. Energy-efficient motor control plus reliable operation contribute to lower running costs. In typical lines, faster setup, safer operation, and easier diagnostics support a favorable return on investment through improved uptime and process stability.
