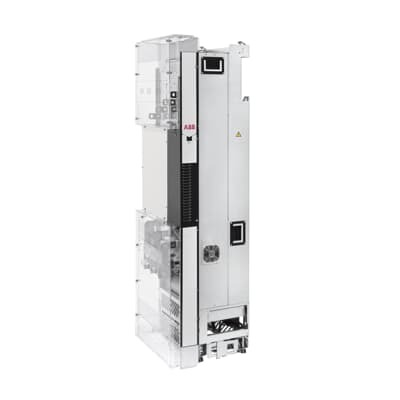

ABB 3AXD50000167678 Drive Module - Ultra-Low Harmonic
Part Number: 3AXD50000167678
Quick Summary
The ABB 3AXD50000167678 drive module is a LV AC control solution delivering ultra-low harmonic output for demanding machinery. Engineers often wrestle with harmonic distortion, bulky external filters, and cramped control cabinets that delay deployments. The design combines an integrated active supply unit with a built-in low-harmonic line filter, enabling compact cabinet installations. CE-compliant by design, with bookshelf variants that fit inside standard panels and options that support safe, reliable operation in harsh environments. This approach reduces hardware counts, improves power quality, and shortens commissioning, delivering measurable savings for machine builders and systems integrators.
Product Information
Extended Description
3AXD50000167678 ABB: The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.
The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Feature: Integrated ultra-low harmonic drive module with built-in low harmonic line filter. Benefit: Substantially reduces harmonic distortion and eliminates the need for bulky external filters, lowering installation complexity and material costs. Application: Suitable for conveyors, pumps, and fans in oil & gas, mining, and metals processing. Feature: Active supply unit with power factor correction. Benefit: Improves grid efficiency and reduces energy waste, contributing to lower operating expenses. Application: Heavy machinery and process lines with variable loads in chemical plants and cement works. Feature: Pn 315 kW, 585 A, 400 V power rating. Benefit: Enables high-power applications while maintaining reliable motor control and torque delivery. Application: Cranes, winches, winders, and centrifuges in metals and paper industries. Feature: Cabinet-friendly design with bookshelf variants and pedestal-on-wheels options. Benefit: Faster installation, easier maintenance, and reduced footprint in control panels. Application: OEM machine builders and systems integrators seeking plug-and-play integration. Feature: Integrated low harmonic filtering and compatibility with the ACS880-34 family. Benefit: Simplified sourcing and fewer integration risks, with consistent performance across machines. Application: Material handling, pumps, and fans in complex industrial lines. OBjections addressed: The module minimizes external hardware, streamlines commissioning, and lowers total cost of ownership compared with traditional multi-pulse or externally filtered drives, while delivering robust performance in harsh environments.
Get a Quick Quote for a ABB 3AXD50000167678
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000167678?
Enquire Now
FAQs
The drive module uses an integrated low harmonic filter and active supply unit, reducing the need for external filters. For cabinet installation, select a bookshelf variant or a pedestal-on-wheels option, ensure a 400 V supply and the 315 kW rating, and follow standard ACS880 wiring diagrams. Verify heat dissipation clearance and proper shielding per local electrical codes.
Key specs include a power rating of 315 kW, current of 585 A, and input voltage of 400 V. The module is designed for ultra-low harmonic output, with integrated line filtering and power factor correction, enabling high efficiency and reduced electromagnetic interference in demanding industrial applications.
Yes. The ACS880-34 based module is intended for machine builders and systems integrators working with cranes, winches, winders, conveyors, pumps, and fans in sectors like mining, metals, and chemical processing. Its compact, low-harmonic design simplifies integration and reduces the need for external harmonic mitigation components.
Certification details are not specified in the provided data. In practice, ACS880 family components commonly pursue CE compliance for Europe and regional safety approvals; verify specific certifications with ABB datasheets and your local requirements. Note that configuration options may affect SIL-rated configurations and enclosure IP ratings depending on installation.
Expect reduced maintenance and wiring complexity due to the integrated low-harmonic filter, which lowers external hardware costs and potential fault points. Cabinet-friendly design saves space and simplifies commissioning, contributing to shorter downtime and a lower total cost of ownership over the drive system's lifecycle.
