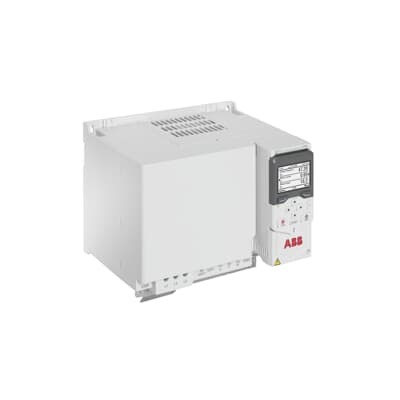

ABB 3AXD50000199082 LV AC general drive - 22 kW 400V/45A
Part Number: 3AXD50000199082
Quick Summary
ABB 3AXD50000199082 LV AC drive module enables precise speed control for compressors, fans, and conveyors. Engineers often grapple with lengthy setup and complex configuration that delay commissioning and increase downtime. Certifications in this domain commonly include CE safety compliance and enclosure IP ratings, with SIL options available depending on configuration—verify regional applicability with ABB documentation. This drive's cabinet-optimized design and built-in setup assistants reduce wiring and programming time, delivering faster deployment and lower total cost of ownership. Combined with robust reliability and straightforward maintenance, it supports ongoing operations while meeting industry expectations.
Product Information
Extended Description
3AXD50000199082 ABB: The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture.
It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It=E2=80=99s a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
The ACS480-based module arrives as a ready-made drive solution with essential features built-in, eliminating the need for extra hardware and simplifying vendor selections. This translates to shorter engineering cycles and faster commissioning across compressors, fans, and conveyors, helping manufacturers meet tight project timelines and minimize unplanned downtime. The cabinet-optimized design minimizes enclosure space and installation costs, enabling compact control panels and easier retrofits in existing lines. The absence of external mezzanine hardware reduces wiring complexity and spare-parts inventory, while standard connectors streamline field installation. Built-in setup menus and guided assistants shorten parameterization, enabling fast startup and predictable performance even for technicians new to variable frequency drives. The interface supports 400 V three-phase power and straightforward motor alignment, reducing commissioning risk in sectors from food & beverage to water treatment. Real-time tuning and diagnostics help maintain stable torque curves under changing load conditions. Variable torque capability and efficient speed control deliver energy savings by matching motor output to load, lowering operating costs and cooling requirements. The compact form factor and integrated safety features contribute to lower total cost of ownership, while the robust ABB platform provides long-term reliability in harsh environments common in manufacturing and logistics. Compatibility with standard 400 V three-phase supplies and the ACS480 family tooling ensures easy replacement, upgrade, and integration with existing ABB drives. Built-in diagnostics, health checks, and remote monitoring options support preventive maintenance programs, helping you reduce downtime and extend asset life without special training.
Get a Quick Quote for a ABB 3AXD50000199082
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000199082?
Enquire Now
FAQs
For 400 V three-phase installations, confirm voltage stability within ±10% and ensure the drive is configured for the appropriate motor type and torque profile. The ACS480-based module supports straightforward wiring with standard connectors, and the built-in setup assistants reduce field wiring mistakes. Verify panel space, cooling, and accessibility for maintenance to minimize commissioning risk.
Key specs include 22 kW drive power, 45 A current, and 400 V supply, suitable for variable-torque loads common to compressors, fans, and conveyors. The drive offers built-in torque control and energy-efficient speed regulation, enabling load-matching and reduced energy consumption while maintaining process stability under varying operating conditions.
Ideal for light to moderate industrial automation where variable torque control is needed, such as HVAC fan systems, small compressors, and material handling conveyors. Its cabinet-optimized design makes it a strong fit for retrofit projects and compact panels in food & beverage, logistics, and water/wastewater facilities, delivering quick commissioning and reliable operation.
Certification details are not listed in the provided data; consult ABB documentation for region-specific CE, IP ratings, and safety standards applicable to your installation. When planning projects, verify regulatory requirements for electrical safety, enclosure protection, and any SIL options that may be selected in your configuration to ensure full compliance.
The integrated features and setup aids reduce commissioning time and spare-parts needs, contributing to lower total cost of ownership. Built-in diagnostics and remote monitoring support preventive maintenance, helping to minimize unplanned downtime and extend motor life. Energy savings from efficient torque control further improve return on investment over the system life cycle.
