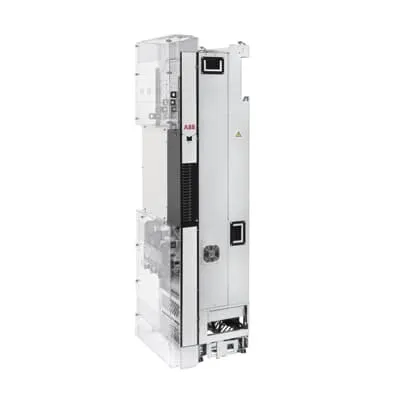

ABB 3AXD50000200009 LV AC drive module - Ultra-low harmonic
Part Number: 3AXD50000200009
Quick Summary
ABB 3AXD50000200009 is a LV AC drive module delivering ultra-low harmonic motor control for industrial machinery. Engineers often battle harmonics that degrade efficiency, trigger overheating, and complicate EMI/EMC compliance across plant networks. This drive module minimizes distortion with an integrated low harmonic line filter and an active supply unit, reducing the need for external filters or multi-pulse configurations. It supports demanding loads such as cranes, conveyors, pumps and winders, offering features like output voltage boost and power factor correction to maximize motor efficiency. Designed for machine builders and systems integrators, it aligns with common industry standards and enables compact, cabinet-friendly installations, delivering reliability and energy savings in harsh environments. In practice, this approach supports CE and UL safety expectations, while remaining compatible with broader industrial automation strategies and the needs of energy-conscious operations.
Product Information
Extended Description
3AXD50000200009 ABB: The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.
The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Feature: Ultra-low harmonic design with an integrated low harmonic line filter and active supply unit. Business Impact: Reduces harmonic currents at the source, lowers total harmonic distortion, and eliminates the need for external filters or multi-pulse configurations, cutting installation time and BOM. Application: Ideal for conveyors, pumps, and winders in busy manufacturing lines. Feature: Output voltage boost and power factor correction. Business Impact: Improves motor efficiency and performance under varying load, enabling reliable operation with less energy waste. Application: Heavy machinery in mining, cement, and material handling where power quality is critical. Feature: Compact bookshelf variant with cabinet-friendly installation. Business Impact: Saves panel space and simplifies retrofits, reducing enclosure costs and allowing quick deployment in retrofit projects. Application: Machine builders updating legacy cabinets in automotive or food and beverage lines. Feature: Broad industry customization. Business Impact: Tailors drive behavior to sector needs, improving uptime and reducing integration risk. Application: Oil & gas, mining, metals, chemicals, and wastewater treatment facilities. Feature: Integrated compatibility with ACS880-34 family. Business Impact: Streamlines integration, reduces wiring complexity, and supports scalable automation architectures. Application: System integrators deploying multi-drive systems for cranes, extruders, or winders.
