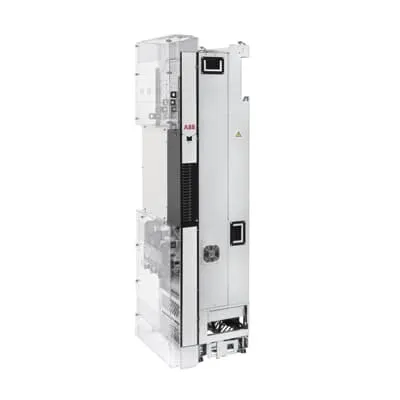

ABB 3AXD50000200030 Drive Module - Ultra-Low Harmonic
Part Number: 3AXD50000200030
Quick Summary
Drive Module ABB 3AXD50000200030 delivers compact, ultra-low harmonic AC drive control for heavy industry applications like conveyors and pumps. Engineers often grapple with harmonic distortion, space constraints, and retrofit costs when upgrading or expanding lines in legacy plants and new builds. UL-listed performance and IEC-based specifications help ensure safe, compliant operation in demanding environments. This module supports machine builders and system integrators with reliable control, easy cabinet integration, and energy-efficient operation across multi-bay cabinets. By combining integrated low-harmonic filtration with output boost and power-factor correction, it reduces wiring and footprint while boosting overall efficiency for oil and gas, mining, and metals sectors.
Product Information
Extended Description
3AXD50000200030 ABB: The ACS880-34 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.
The compact ACS880-34 ultra-low harmonic drive module produces exceptionally low harmonic content and exceeds the requirements set by low harmonic requirements. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. These modules are specifically designed for machine builders and systems integrators. Bookshelf variants can easily be pushed inside the cabinet using a pedestal on wheels
Feature → Business Impact → Application: The ultra-low harmonic drive module delivers exceptionally low harmonic content due to an integrated low harmonic line filter and active supply unit, which eliminates the need for external filters or specialized transformers. This reduces cabinet complexity, lowers installation time, and improves grid compliance for conveyors, cranes, and winders in harsh industrial settings. Business impact: lower total cost of ownership through simplified BOM, faster commissioning, and reduced EMI-related downtime. Application: suitable for material handling lines, mining feeders, and pulp and paper machinery where harmonic control is critical. Feature → Business Impact → Application: Output voltage boost and built-in power factor correction enhance motor efficiency and torque delivery without additional hardware. This results in energy savings, improved process stability, and better performance for pumps and fans in chemical plants and power facilities. Feature → Business Impact → Application: Integrated design tailored for machine builders and systems integrators, with bookshelf variants that can be pushed inside cabinets and adjusted with a pedestal on wheels. Benefits include easy retrofit and scalable cabinet layouts across automation cells. Application: suited for OEMs deploying multi-line packaging, automotive assembly, and water/wastewater treatment systems. Feature → Business Impact → Application: Compact form factor and compatibility with 500 V IEC and 480 V UL configurations minimize space and wiring requirements, enabling faster deployment in existing facilities. Application: crane controls, sawmills, and marine equipment where space and reliability matter. Feature → Business Impact → Application: No external multi-pulse arrangements or external transformers needed due to integrated low harmonic design, reducing BOM costs and simplifying compliance reporting. Application: retrofits in mining conveyors, cement plants, and process lines where regulatory acceptance is essential.
Get a Quick Quote for a ABB 3AXD50000200030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000200030?
Enquire Now
FAQs
Installation is simplified by the bookshelf variant and pedestal-on-wheels design, enabling easy integration into standard industrial cabinets. Ensure the cabinet supports the module’s 500 V IEC (or 480 V UL) configuration, provide proper enclosure cooling, and connect to the machine control and motor cables per ABB wiring diagrams. Power-up testing should confirm harmonics performance and load response without external filters.
The module integrates an active supply unit with a built-in low harmonic line filter, delivering ultra-low harmonic content and eliminating the need for external filters or multi-pulse transformers. This simplifies installation, reduces cabinet complexity, and improves grid compatibility in environments with many motors such as conveyors, cranes, and extruders.
Yes. The IEC configuration provides Pn up to 250 kW at 500 V with 414 A, while the UL configuration covers 480 V with 414 A and 350 Hp. This makes the module versatile for global installations, supporting both IEC and UL ecosystem requirements in mixed-voltage facilities.
Industries with intensive motor loads and harmonic sensitivity benefit most, including oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, marine, water and wastewater, food and beverage, and automotive. The integrated filtration and PF correction help maintain process stability and extend motor life in challenging environments.
ROI improves through energy efficiency from power-factor correction, reduced energy losses from lower harmonics, shorter commissioning times due to integrated filtration, and lower maintenance costs from fewer external components. For OEMs and integrators, these benefits translate into faster time-to-market, reduced BOM complexity, and improved uptime in critical process lines.
