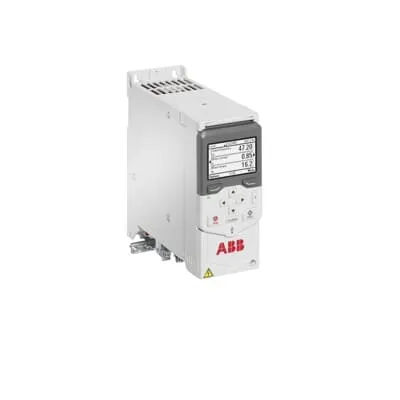

ABB 3AXD50000246168 Drive Module - ACS480-04-06A9-1
Part Number: 3AXD50000246168
Quick Summary
The ABB 3AXD50000246168 Drive Module is a ready-made LV AC drive that controls motor speed for general-purpose applications. Engineers often face lengthy commissioning, complex wiring, and bulky control cabinets; this module simplifies setup with an intuitive menu and built-in assistants. Certification details are not listed in the data, but ABB ACS480 drives typically support CE marking and robust protective features; confirm with ABB for your region. Beyond compliance, the compact, cabinet-friendly design reduces installation footprint while enabling reliable speed control for variable torque and basic speed tasks in industrial environments. This combination translates to faster time-to-value and easier maintenance for OEMs and maintenance teams.
Product Information
Extended Description
3AXD50000246168 ABB: The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture.
It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It=E2=80=99s a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
Ready-made package for general purpose drives reduces hardware count and speeds setup, delivering faster time-to-value and lower BOM costs. This benefits panel builders and maintenance teams with quicker commissioning and easier upgrades, especially in compressors, fans, and conveyors where space is at a premium. Built-in features and an intuitive settings menu shorten engineering cycles, minimize configuration errors, and support rapid fault isolation in dynamic production lines. The cabinet-optimized design lowers panel depth and thermal load, enabling tighter control solutions for warehouses, water treatment, and agriculture facilities. With 1.1 kW power and 230 V input, this drive supports small- to mid-size motors while preserving energy efficiency and return-on-investment. Compatibility with variable torque and basic speed control reduces energy consumption on fan, pump, and conveyor loads. The integrated package minimizes wiring, simplifies maintenance, and accelerates OTA updates and upgrades.
Get a Quick Quote for a ABB 3AXD50000246168
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000246168?
Enquire Now
FAQs
The 3AXD50000246168 is designed as a ready-made LV AC drive module within the ACS480 family and aligns with common installation practices for ABB drives. It supports general-purpose motor control and is compatible with 230 V systems. When retrofitting, verify connector types, wiring gauge, and bus voltage compatibility to ensure a seamless replacement or upgrade without expanding control cabinet complexity.
Key specifications include a power rating of 1.1 kW, a current rating of 6.9 A, and a 230 V input. It is part of ABB's ACS480 drive family, offering a ready-made, cabinet-friendly package for LV AC general purpose motor control. These specs suit small motors in light-industrial applications and support straightforward configuration via built-in setup assistants.
Yes, the 3AXD50000246168 is intended for variable torque and basic speed control tasks, making it appropriate for conveyors, fans, and similar load profiles. The cabinet-optimized design and built-in configuration tools help tune the drive for torque requirements while minimizing energy use and maximizing process stability in dynamic production lines.
Certification details are not listed in the provided data. ABB ACS480 drives commonly support CE marking and standard industrial protections. For sector-specific compliance (CE, IP ratings, SIL), confirm with ABB or your regional distributor to ensure conformance with local regulations and industry requirements before deployment.
The module reduces BOM complexity and cabinet footprint, leading to lower installation and wiring costs. Its built-in features and intuitive setup shorten commissioning times, while the cabinet-optimized design improves reliability and reduces maintenance overhead. Over time, these factors translate into faster time-to-value, lower energy waste in variable torque loads, and streamlined service routines.
