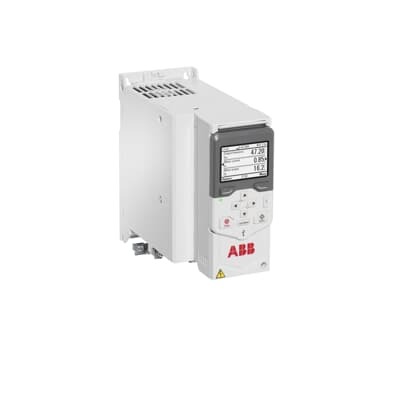

ABB 3AXD50000246182 Drive Module - 2.2 kW, 230 V
Part Number: 3AXD50000246182
Quick Summary
ABB ACS480 drive module enables efficient variable speed control for fans, conveyors, and compressors in industrial processes. Too often, commissioning drags on due to complex setups and costly hardware, delaying production and driving up costs. The ACS480 ships with built-in features, straightforward menus, and robust protection—supporting CE-grade safety and SIL-ready options for reliable operations. With a 2.2 kW rating and 230 V supply, it fits a wide range of light-industrial motors. This combination reduces cabinet space, lowers total cost of ownership, and complements your industrial automation strategy, while enabling easy integration with existing equipment.
Product Information
Extended Description
3AXD50000246182 ABB: The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture.
It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It=E2=80=99s a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
Built-in setup assistants streamline configuration and commissioning, cutting installation time and reducing human error. This directly lowers labor costs and accelerates time-to-line in conveyors, fans, and compressors across food & beverage, warehousing, and water-treatment facilities. The cabinet-optimized design reduces enclosure footprint and panel costs, enabling compact control cabinets in space-constrained environments while maintaining easy access for maintenance. With a 2.2 kW, 230 V rating, the drive matches a broad range of light-industrial motors, simplifying procurement and reducing spare-parts variety. Variable torque control and basic speed regulation improve process stability and energy efficiency, delivering measurable savings in HVAC, conveyors, and pumping applications. Built-in diagnostics and protection elevate reliability, minimize unplanned downtime, and support proactive maintenance for manufacturing lines, logistics hubs, and agricultural facilities. The ACS480 also offers seamless compatibility with existing ABB drives and automation stacks, easing upgrades and future-proofing your control architecture.
Get a Quick Quote for a ABB 3AXD50000246182
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000246182?
Enquire Now
FAQs
Mount the drive in a standard control cabinet, connect the 230 V mains according to the ABB wiring diagram, and wire the motor to the drive’s output terminals with proper grounding. Use the built-in setup assistants to configure motor parameters, protection settings, and basic torque control. Verify motor nameplate compatibility and enclosure rating before commissioning.
The drive provides 2.2 kW output at 230 V with a nominal current around 9.8 A. It supports basic speed control and variable torque for light-industrial loads. Ensure motor compatibility with load type and confirm supply sizing and wire routing meet local electrical codes to maximize performance and reliability.
Yes. The ACS480 is well-suited for variable torque loads typical of conveyors and fans. Its cabinet-optimized design minimizes panel space, and built-in setup assistants shorten configuration and commissioning. For warehousing, you gain smoother acceleration, energy savings, and predictable operation across multiple motors in a single control cabinet.
ABB’s ACS480 family is designed to meet common standards; CE marking is typically applied for safety compliance, and IP-rated enclosures may be used depending on installation. Always verify the specific configuration with your supplier and consult the latest datasheet for SIL-ready options and region-specific certifications.
Built-in diagnostics and protection reduce downtime and simplify maintenance planning, while fewer required external components lower spare-parts inventory. Energy-efficient operation yields measurable utility savings, and quick configuration shortens project timelines, delivering a favorable return on investment for standard manufacturing, logistics, and processing lines.
