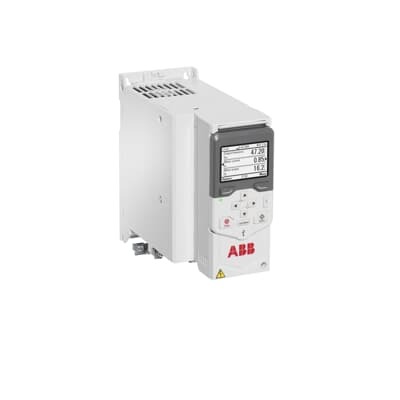

ABB 3AXD50000246199 Drive Module - 3 kW, 12.2 A, 230 V
Part Number: 3AXD50000246199
Quick Summary
ABB 3AXD50000246199 Drive Module is a compact LV AC motor drive designed for general-purpose control in conveyors, fans, and compressors. Many users struggle with complex setup, conflicting hardware, and lengthy commissioning when deploying variable torque drives. It aligns with CE safety compliance and IEC-based design to meet common industrial standards for small- to mid-size systems. The cabinet-optimized package translates to reduced footprint and simpler integration with existing controls, delivering measurable ROI. Engineers benefit from built-in setup assistants that accelerate commissioning. Procurement gains from a ready-made, no-hassle solution that reduces BOM complexity. Domestic service teams appreciate straightforward diagnostics and predictable behavior across light-industrial processes.
Product Information
Extended Description
3AXD50000246199 ABB: The ACS480 is a ready-made and capable package for many applications, such as compressors, fan and conveyors, in a variety of light industries, including food and beverage, logistics and warehousing, water and wastewater, and agriculture.
It has all essential features built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance. It=E2=80=99s a great fit for variable torque and basic speed applications, where you can leverage a compact, cabinet-optimized design for a cost-effective and efficient solution.
Feature → Built-in, ready-made package with essential drive capabilities eliminates the need for additional hardware, reducing enclosure and wiring. This translates into lower BOM costs and faster deployment across new lines. Application: use on conveyors, fans, and compressors in warehouses, food & beverage, and light manufacturing to realize quicker ROI. Feature → Cabinet-optimized design reduces footprint and simplifies panel integration. Business impact: saves enclosure space, lowers installation time, and minimizes wiring complexity. Application: ideal where space is at a premium, such as compact control panels in logistics and packaging lines. Feature → Clear settings menu and setup assistants enable fast, mistake-free commissioning. Business impact: reduces startup time, minimizes operator training, improves maintenance predictability. Application: light-industrial lines requiring reliable variable torque control for fans and pumps. Feature → Variable torque capable core supports energy efficiency. Business impact: reduces energy consumption in fans, pumps, and conveyors, translating to lower operating costs. Application: HVAC, material handling, and process lines with variable-speed loads. Feature → Ready compatibility and easy installation reduces integration risk with existing PLCs and control architectures. Business impact: simplifies retrofits and upgrades in warehouses and manufacturing plants. Application: brownfield projects or new lines where fast integration matters.
Get a Quick Quote for a ABB 3AXD50000246199
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000246199?
Enquire Now
FAQs
When retrofitting into existing panels, ensure the panel has adequate enclosure space for the cabinet-optimized ACS480 module, and confirm a 230 V supply capable of delivering 12.2 A for the 3 kW rating. Use the built-in setup assistants to simplify wiring, parameterization, and commissioning, reducing installation time and risk of misconfiguration.
The ACS480 family delivers variable torque control ideal for conveyors and fans, enabling energy-efficient speed modulation. With a 3 kW, 12.2 A, 230 V rating, it supports smooth acceleration/deceleration, reliable start-up, and stable operation under fluctuating load. This translates to lower energy costs and improved process stability on light-industrial lines.
Yes. The ABB ACS480 drive module is designed for easy integration with common industrial control systems. It uses straightforward parameterization via its intuitive menu and supports standard control interfaces for reliable communication with PLCs and SCADA systems, enabling seamless retrofits and minimal rework of existing control architectures.
The drive adheres to CE safety requirements and aligns with IEC-based design practices for industrial motor control. This combination supports compliance in European markets and compatibility with standard safety and electrical installation practices, giving engineers confidence during audits and in regulated environments.
ROI derives from a reduced BOM due to an all-in-one package, faster commissioning with setup assistants, and energy savings from efficient variable torque control. Maintenance benefits come from built-in diagnostics and a compact, cabinet-optimized design that simplifies troubleshooting and reduces spare parts variety over the system’s life cycle.
