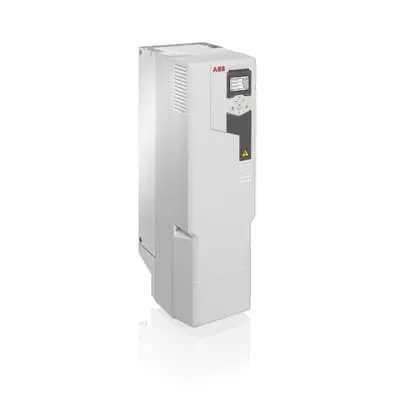

ABB 3AXD50000271146 ACS580-01 Wall-mounted Drive - IP66
Part Number: 3AXD50000271146
Quick Summary
ACS580-01 wall-mounted drive controls AC motors in industrial automation. Engineers often encounter reliability and maintenance challenges when deploying variable-frequency drives in harsh environments. With UL Type 1/IP21, Type 12/IP55 and Type 4X/IP66 enclosures, it delivers robust protection and easier compliance across applications. Designed to be part of ABB’s all-compatible drives portfolio, it offers familiar control panels, PC tools, and parameter structures—so once you learn it, you can use it everywhere. V/Hz and sensorless vector control support a wide range of motors (induction, PM, synchronous reluctance, optimum pole), delivering energy efficiency and precise torque for compressors, conveyors, pumps, and fans.
Product Information
Extended Description
3AXD50000271146 ABB: The wall-mounted ACS580-01 is available as UL Type 1 (IP21), Type 12 (IP55) and Type 4X (IP66) designed for OEM and end users who value high quality and robustness in their applications. Coated control boards, high enclosure classes, and motor temperature monitoring ensure processes will run smoothly even in harsh conditions. This drive is part of ABB=E2=80=99s all-compatible drives portfolio, sharing the same control panel, PC tools, parameter structure and communications options as the ACS380/180 and ACS880. Learn it once; use it everywhere. With both V/Hz and sensorless vector control supporting most motor types such as induction, permanent magnet, synchronous reluctance, and optimum pole motors the ACS580 is ideal for use on compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and other variable and constant torque applications, in a variety of industries, including food and beverage, plastic, textile, material handling, and agriculture.
Feature → Business Impact → Application: V/Hz and sensorless vector control provide flexible torque and speed control across multiple motor types, enabling precise process regulation and energy efficiency in continuous operations such as conveyors and pumps. This reduces motor wear, improves start-up reliability, and lowers total cost of ownership in OEM and end-user environments. Application: food and beverage lines, plastics processing, material handling. Feature → Business Impact → Application: Enclosures with UL Type 1/IP21, Type 12/IP55, and Type 4X/IP66 options deliver robust protection against dust, water, and wash-downs, enabling installation in harsh environments such as manufacturing floors and outdoor facilities. Application: outdoor conveyors, packaging lines, and wash-down areas. Feature → Business Impact → Application: Coated control boards and motor temperature monitoring boost longevity and reduce unscheduled downtime by catching overheating early. Application: compressors, extruders, centrifuges, and mixers in challenging plants. Feature → Business Impact → Application: Seamless compatibility with ABB’s drive portfolio means engineers reuse settings and diagnostics across ACS380/180 and ACS880, cutting engineering time and risk. Application: OEMs updating equipment fleets. Feature → Business Impact → Application: Wide motor-type support (induction, permanent magnet, synchronous reluctance, optimum pole) under V/Hz and sensorless control lowers integration barriers and expands motor options. Application: fans, pumps, and mixers in varied industries. Feature → Business Impact → Application: 50 Hp, 52 A, 600 V capability supports scalable automation projects from mid-size to larger installations. Application: conveyors and packaging lines requiring reliable, scalable drive control.
Get a Quick Quote for a ABB 3AXD50000271146
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000271146?
Enquire Now
FAQs
Begin by selecting the appropriate enclosure rating (UL Type 1/IP21, Type 12/IP55, or Type 4X/IP66) for your environment. Mount the drive in a clean, accessible location, connect the power and motor conductors per the wiring diagram, and configure the V/Hz or sensorless vector control settings. Use the ABB PC tools to import a reference profile and validate motor parameters before commissioning.
The drive supports induction motors, permanent magnet motors, synchronous reluctance motors, and optimum pole configurations. This broad compatibility enables flexible selection of motor types for compressors, pumps, conveyors, extruders, and fans, while maintaining torque stability and energy efficiency across varying loads.
Yes. The ACS580-01 is available in UL Type 1/IP21, Type 12/IP55, and Type 4X/IP66 enclosures. This means you can deploy it in clean indoor spaces or harsher environments such as wash-down areas and outdoor installations, with protection levels that reduce dust ingress, water exposure, and corrosion risk.
Expect improved process reliability due to robust motor protection and temperature monitoring, reduced energy consumption from optimized V/Hz/sensorless control, and lower maintenance costs from coated boards and reliable fault diagnostics. The drive’s compatibility across ABB’s portfolio also minimizes downtime when upgrading or expanding existing systems.
Typical applications include conveyors in packaging lines, pumps in fluid handling, compressors in HVAC or process industries, extruders and centrifuges in plastics and food sectors, and mixers and fans in manufacturing. The drive’s versatility supports mid-size to large-capacity installations requiring robust control, enclosure protection, and long-term reliability.
