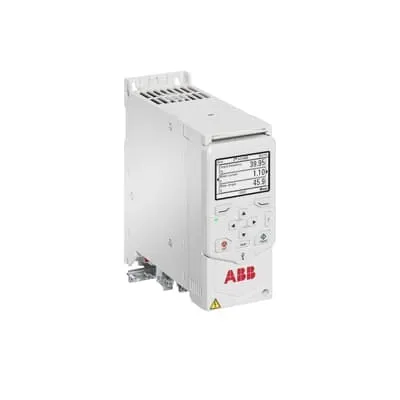

ABB 3AXD50000275434 HVAC Drive Module - 0.75 kW, 400 V
Part Number: 3AXD50000275434
Quick Summary
The ABB ACH480-based HVAC drive module 3AXD50000275434 powers fans, pumps and compressors with precise, reliable control for HVAC systems. Engineers often grapple with lengthy commissioning and inconsistent startup across panels, which this drive helps streamline through an HVAC-specific primary settings menu and intuitive startup flow. It carries CE safety compliance and SIL-ready options for critical environments, plus enclosure protection considerations when installed in compliant cabinets. For panel builders and OEMs, the solution delivers faster setup, easier maintenance, and sustained energy-efficient operation across demanding HVAC applications.
Product Information
Extended Description
3AXD50000275434 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: Cabinet-optimized ACH480 drive designed for HVAC applications. Benefit: Reduces panel footprint and simplifies wiring, enabling faster installation and reduced wiring errors in commercial HVAC projects. Application: Ideal for AHUs and packaged rooftop units where space is at a premium and reliability matters. Feature: HVAC-specific control panel with a dedicated primary settings menu. Benefit: Accelerates commissioning and reduces startup time, improving project timelines and installer productivity. Application: Suitable for panel builders delivering ready-to-run HVAC solutions with minimal field programming. Feature: Built-in HVAC functionality for fans, pumps and compressors. Benefit: Delivers smooth, energy-efficient operation and lower lifecycle costs through optimized torque and speed control. Application: Global air-handling installations requiring dependable performance under varying load conditions. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Benefit: Removes the need for on-site visits during setup and maintenance windows, improving uptime and reducing service costs. Application: OEMs implementing remote diagnostics in large building portfolios. Feature: Compatibility with 400 V, 2.6 A nominal current and 0.75 kW motor load. Benefit: Aligns with common HVAC motor specs, enabling seamless integration into existing electrical architectures. Application: Retrofit projects and new builds where standard 400 V drives are required. Note: These capabilities support panel builders and OEMs aiming to shorten project cycles while ensuring energy-efficient HVAC control and reliable operation across mission-critical environments.
Get a Quick Quote for a ABB 3AXD50000275434
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000275434?
Enquire Now
FAQs
Yes. This 0.75 kW LV AC drive is designed for 400 V systems and fits common panel-mount configurations used in HVAC installations, with standard wiring practices that minimize field wiring complexity and commissioning time.
Key specs include 0.75 kW nominal power, 2.6 A nominal current, and 400 V operating voltage. It’s built for HVAC loads such as fans, pumps, and compressors, delivering smooth speed control and energy-efficient operation.
Yes. The cabinet-optimized ACH480-based drive is specifically designed for HVAC equipment like fans and pumps in AHUs, offering reliable performance, easy commissioning, and compatibility with HVAC control strategies.
Optional Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits and enabling quicker adjustments during commissioning and ongoing operation.
The drive aligns with CE safety standards and offers SIL-rated safety options for critical HVAC applications. The combination of faster installation, simpler commissioning, and energy-efficient operation translates to lower total cost of ownership and faster ROI in panel-building and OEM deployments.
