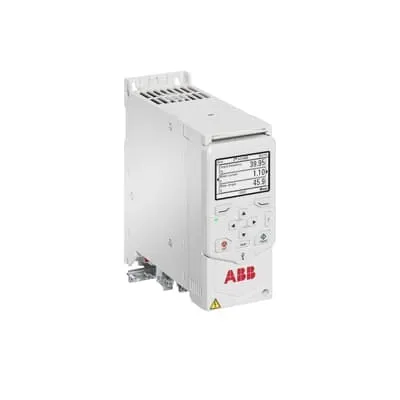

ABB 3AXD50000275458 LV AC drive module - 1.5 kW, 4 A, 400 V
Part Number: 3AXD50000275458
Quick Summary
LV AC drive module for HVAC delivers precise motor control and energy efficiency for fans and pumps. Installing in panel assemblies often means long commissioning times and complex wiring, causing costly delays. While the data here doesn’t list specific certifications, CE compliance, IP ratings, and SIL assurance are common considerations for HVAC drives to ensure safety and reliability. This solution supports HVAC efficiency and reliable operation, with easy commissioning and remote monitoring via optional Bluetooth to reduce site visits and service times.
Product Information
Extended Description
3AXD50000275458 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: The ACH480-based drive provides cabinet-optimized HVAC functionality to control fans, pumps, and compressors. Business impact: It enables smoother, energy-efficient operation and reduces thermal and mechanical wear on critical equipment. Application: Ideal for air-handling units and packaged HVAC systems in commercial buildings and data centers. Feature: Built-in HVAC-specific settings menu and help assistants. Business impact: Faster startup and commissioning, fewer field tweaks, and less risk of misconfiguration. Application: Panel builders and OEMs provisioning new HVAC equipment. Feature: Cabinet-optimized design with HVAC-ready wiring. Business impact: Significantly reduced panel assembly time and simpler installation. Application: Factory and field installations in commercial HVAC projects. Feature: Intuitive control panel with HVAC primary settings and help assistants. Business impact: Streamlines startup, reduces commissioning time, and lowers operator training needs. Application: Service engineers deploying drives across multiple sites. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring. Business impact: Enables off-site configuration and proactive maintenance, cutting on-site visits. Application: Remote sites, OEMs with distributed equipment. Feature: Rated for 400 V systems with Pn 1.5 kW and 4 A. Business impact: Supports standard industrial power rails and scalable load management, improving energy efficiency and motor protection. Application: HVAC fans, pumps, compressors in mid-size facilities. Feature: Compatibility with panel builders and OEMs in HVAC markets. Business impact: Aligns with mass production needs and reduces total cost of ownership through common components. Application: OEM-driven HVAC equipment integration.
Get a Quick Quote for a ABB 3AXD50000275458
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000275458?
Enquire Now
FAQs
Begin by mounting the drive in a ventilated panel enclosure, then connect the three-phase 400 V supply to L1, L2, L3 and wire the motor to the drive output. Set the basic parameters for a 1.5 kW, 4 A load and configure the HVAC-specific settings menu. Verify wiring integrity, enable safeguards, and test with a controlled load before commissioning.
The drive is rated for 1.5 kW output with a 4 A current rating and 400 V line voltage. It is designed for LV AC applications in HVAC systems and supports cabinet-optimized installation. Optional Bluetooth enables remote commissioning and monitoring, reducing on-site visits during setup and maintenance.
Yes. The ACH480-based module is designed for HVAC applications such as air-handling units, fans, pumps, and compressors. Its HVAC-focused features simplify startup and operation, delivering smooth speed control, energy savings, and reliable performance across typical AHU and fan-coil configurations.
The provided data does not list specific certifications. In HVAC drive equipment, CE marking, IP protection, and SIL considerations are common. When purchasing, confirm with ABB or the supplier for the exact certifications applicable to your region and project requirements.
By delivering precise motor control and energy efficiency for HVAC loads, the drive can reduce energy consumption and wear on motors. The cabinet-optimized design shortens installation time, while the optional Bluetooth capability enables remote monitoring and commissioning, lowering field service costs and improving uptime across multiple sites.
