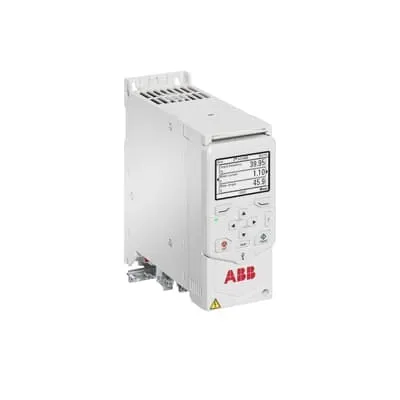

ABB 3AXD50000275465 LV AC drive - ACH480 2.2 kW
Part Number: 3AXD50000275465
Quick Summary
ABB ACH480 LV AC drive module for HVAC precisely controls fans, pumps, and compressors in commercial buildings. Many engineers face lengthy commissioning and energy waste from inefficient motor control in HVAC systems. It features cabinet-optimized design with HVAC-centric settings and optional Bluetooth for remote setup, backed by standard safety and ruggedness considerations. For panel builders and OEMs, it offers easy integration, faster startup, and measurable energy savings, delivering a compelling business case for modernized HVAC drives.
Product Information
Extended Description
3AXD50000275465 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Cabinet-optimized HVAC drive with built-in functionality for fans, pumps, and compressors. Business impact: reduces installation time and simplifies panel wiring, accelerating project schedules and lowering labor costs. Application: ideal for air-handling units and packaged HVAC equipment. The HVAC-focused primary settings menu and help assistants streamline startup, troubleshooting, and commissioning, which translates to shorter project timelines and fewer commissioning errors. Application-specific, the drive supports easy remote monitoring via optional Bluetooth, enabling proactive maintenance and reduced on-site visits, which lowers downtime. The 2.2 kW, 400 V rating makes it a natural fit for medium-capacity HVAC fans and pumps, aligning with standard electrical distribution and simplifying procurement for OEMs and panel shops. This drive’s compatibility with ABB ecosystems supports seamless upgrades and reduced risk in retrofits. It’s designed for mission-critical operation, with robust enclosure and control logic that enhance reliability and mean time between failures.
Get a Quick Quote for a ABB 3AXD50000275465
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000275465?
Enquire Now
FAQs
The ACH480 drive is designed for cabinet installation in HVAC control panels. It supports 400 V mains with a 2.2 kW rating and integrates with standard panel wiring practices, reducing harness complexity. Its cabinet-optimized form factor simplifies mounting, wiring, and terminal access, making it suitable for panel builders and OEM integrations.
Model 3AXD50000275465 corresponds to the ACH480 platform rated at 2.2 kW, drawing approximately 5.6 A at 400 V. It is intended for HVAC applications such as fans, pumps, and compressors, with a compact footprint suitable for panel mounting and straightforward electrical connections.
Yes. The ACH480 is specifically targeted at HVAC systems, delivering precise fan and pump speed control for air handling units, compressors, and related equipment. Its HVAC-centric settings menu and commissioning aids reduce startup time, improve control accuracy, and enhance overall system energy performance.
Common HVAC drives from ABB typically align with CE safety standards and general industry practices. For exact certifications and compliance (including any SIL or IP ratings), refer to the official ACH480 datasheet and ABB documentation for this model variant (3AXD50000275465). Always verify local regulatory requirements before deployment.
Expect reduced energy consumption through optimized motor control, shorter commissioning cycles, and fewer on-site service visits due to onboard diagnostic and remote monitoring capabilities (Bluetooth option). The combination of energy efficiency, faster startup, and increased reliability translates to lower operating costs and improved uptime over the system lifecycle.
