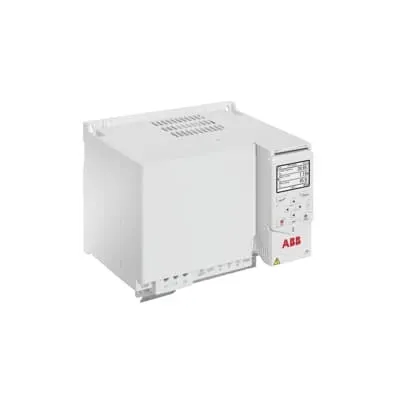

ABB ACH480 3AXD50000275748 LV AC drive - HVAC cabinet-ready
Part Number: 3AXD50000275748
Quick Summary
The ABB ACH480 LV AC drive optimizes HVAC performance by precisely controlling fans, pumps and compressors. Users frequently grapple with lengthy commissioning and inconsistent performance when integrating drives into complex HVAC panels. This unit delivers CE conformity and is designed for robust HVAC environments with cabinet protection and HVAC-specific settings. The built-in HVAC primary settings menu, intuitive control panel, and optional Bluetooth enable straightforward startup, commissioning, and remote monitoring. For panel builders and OEMs, this translates to faster deployment, reduced wiring time, and a lower total cost of ownership while maintaining reliable, energy-efficient operation. Its modular design also simplifies spare parts management and future upgrades across HVAC applications.
Product Information
Extended Description
3AXD50000275748 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
The cabinet-optimized ACH480 design reduces installation time and wiring complexity in HVAC panels. By consolidating drive and control functions in a cabinet-ready package, engineers minimize panel footprint and cut commissioning errors, delivering faster time-to-value for every project. This is especially valuable for panel builders and OEMs who standardize on HVAC drives for multiple machines. HVAC-specific control capabilities enable precise management of fans, pumps, and compressors, delivering stable temperature and airflow and reducing energy consumption. The drive's HVAC-oriented features simplify sequencing and load matching, which improves system-wide efficiency across air-handling units and packaged rooftop systems. Its built-in HVAC primary settings menu and on-screen help assistants streamline startup, commissioning, and ongoing operation, while the intuitive interface minimizes operator errors and shortens training time. An optional Bluetooth capability enables commissioning and monitoring from a distance, reducing site visits and enabling proactive maintenance across multiple installations. With a 22 kW, 45 A, 400 V rating, the ACH480 is well matched to mid-to-large HVAC loads, delivering reliable torque and smooth speed control. Its cabinet-optimized form and panel-ready connectivity simplify integration with fans, pumps, and compressors in air-handling units and similar equipment. Designed for panel builders and OEMs, the drive supports rapid installation within standard electrical cabinets and easy future upgrades as system requirements evolve, backed by extended diagnostics and built-in safety features that help meet regulatory requirements while keeping maintenance simple.
Get a Quick Quote for a ABB 3AXD50000275748
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000275748?
Enquire Now
FAQs
Yes. The ACH480 is designed as a cabinet-optimized LV drive for HVAC applications and is compatible with typical 400 V three-phase electrical networks. Its panel-ready form simplifies mounting in standard enclosures, and the 22 kW, 45 A rating aligns with mid-to-large HVAC loads commonly found in air-handling units and rooftop systems. Optional Bluetooth supports remote commissioning and monitoring to reduce on-site visits.
The drive provides 22 kW of power at 400 V with a maximum current of 45 A. It delivers precise speed and torque control suitable for fans, pumps, and compressors in HVAC systems. The HVAC-oriented control features simplify sequencing and load matching, contributing to improved energy efficiency and reliable operation across air handling equipment.
Ideal for fans, pumps, and compressors within HVAC systems such as air-handling units, rooftop units, and packaged HVAC equipment. The cabinet-optimized design and HVAC-specific settings support rapid deployment in panel-building projects and OEM installations, enabling consistent performance across multiple machines with reduced wiring complexity.
The ACH480 series is CE-conformant, reflecting compliance with essential European safety and EMC requirements. It is designed for robust operation in HVAC environments and supports cabinet protection suitable for panel integrations. For exact IP ratings or SIL-related configurations, verify the specific installation cabinet and product variant per your regulatory and safety requirements.
Faster commissioning and easier startup reduce time-to-value on new HVAC installations. Optional Bluetooth enables remote commissioning and monitoring, lowering site visits and service costs. The drive's energy-efficient operation and robust HVAC-focused features reduce operating expenses over the system’s life, while built-in diagnostics support proactive maintenance and longer equipment life.
