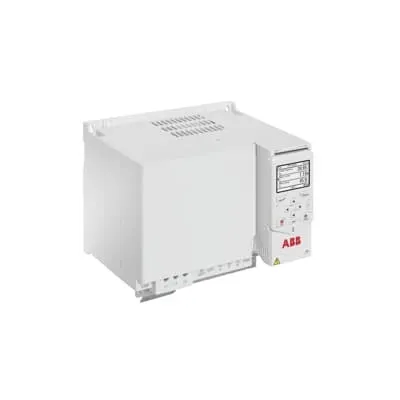

ABB ACH480-04-050A-4 LV AC drive module - 22 kW, 400 V CE-compliant
Part Number: 3AXD50000275755
Quick Summary
ACH480-04-050A-4 LV AC drive module for HVAC controls delivers precise fan, pump, and compressor speed control. In panel builds and retrofit projects, lengthy setup and misconfigurations can delay commissioning and inflate costs. This CE-compliant, cabinet-optimized drive simplifies startup and operation, while its HVAC-oriented primary settings menu and Bluetooth option support remote commissioning. Designed for panel builders and OEMs, it integrates with 400 V HVAC systems and standard 22 kW, 50 A, 400 V specs to reduce engineering time. By delivering reliable performance in mission-critical environments, the ACH480 helps facilities meet uptime goals and lowers total cost of ownership.
Product Information
Extended Description
3AXD50000275755 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: Cabinet-optimized ACH480 drive with HVAC functionality. Business impact: Reduces installation time, simplifies panel wiring, and accelerates commissioning, leading to lower project costs. Application: New builds and retrofits in commercial and industrial HVAC where space is at a premium. Feature: HVAC-specific control features and an intuitive settings menu. Business impact: Faster startup, fewer configuration errors, and easier operator training. Application: Air handling units, fans, pumps, and compressors in central plants. Feature: Built-in capabilities for control of fans, pumps, and compressors. Business impact: Ensures smooth operation, energy efficiency, and reduced mechanical wear. Application: Commercial buildings and process environments with variable HVAC loads. Feature: Bluetooth capability for remote commissioning and monitoring. Business impact: Decreases site visits, enables proactive maintenance, and supports multi-site deployments. Application: OEM-installed panels and distributed facilities networks. Feature: Compatibility with 22 kW, 50 A, 400 V HVAC architectures. Business impact: Simplifies procurement, standardizes integration, and minimizes engineering changes. Application: OEMs and panel builders deploying standard HVAC drives across multiple sites. Feature: Cabinet-friendly design and safety-conscious features for easy installation. Business impact: Improves regulatory compliance, reduces wiring errors, and shortens commissioning cycles. Application: Panel assembly in building automation and large-scale HVAC systems.
Get a Quick Quote for a ABB 3AXD50000275755
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000275755?
Enquire Now
FAQs
Install the ACH480-04-050A-4 as a cabinet-mounted LV AC drive in 400 V panels. Connect to the HVAC load (fans, pumps, compressors) per the ABB wiring diagram, configure the HVAC-specific primary settings, and use the built-in help assistants to validate startup parameters. The result is reduced installation time and a smoother commissioning process for OEMs and panel builders.
Best suited for HVAC applications such as fans, pumps, compressors, and air-handling units. It delivers precise speed control for energy efficiency, improved comfort, and reliable operation in central plants, commercial buildings, and multi-zone HVAC systems.
Yes. The drive offers optional Bluetooth capability, enabling remote commissioning and monitoring. This reduces on-site visits, speeds up setup, and supports proactive maintenance across dispersed sites.
The device is specified for 400 V systems with a 22 kW power rating and 50 A current. These ratings align with common HVAC drive architectures, simplifying procurement and enabling straightforward integration into standard electrical panels.
The provided data highlights CE compliance as a key regulatory alignment for the ACH480-04-050A-4. For project-specific requirements, confirm with the supplier datasheet or ABB documentation to verify additional certifications.
