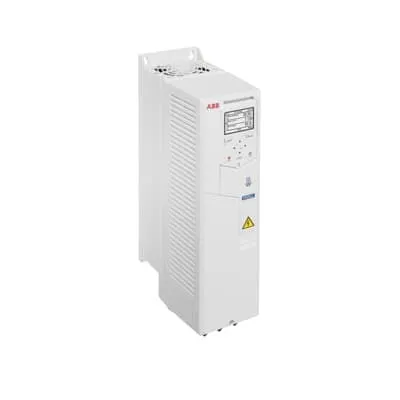

ABB 3AXD50000284849 LV AC Wall-Mounted Drive - IP21/UL
Part Number: 3AXD50000284849
Quick Summary
ABB 3AXD50000284849 HVAC Drive is a wall-mounted LV AC drive that optimizes fans, pumps, and compressors in commercial and industrial HVAC applications. Engineers often struggle with lengthy startup and commissioning, leading to downtime and excessive energy use. This drive is UL-listed for HVAC use and offers IP21 protection, with IP55 and flange-mount variants for tougher environments, plus optional Bluetooth for remote commissioning. The built-in HVAC primary settings menu and intuitive control panel simplify setup, reduce on-site time, and lower commissioning costs. By delivering energy efficiency, reliability, and easy maintenance, it supports building services teams in achieving better uptime and lower total cost of ownership.
Product Information
Extended Description
3AXD50000284849 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC-specific control features reduce sizing and parameter tuning time, delivering faster startup and consistent operation of fans, pumps, and compressors in air handling units and chillers. This translates to lower energy consumption and improved system efficiency across variable load conditions, especially in climate-sensitive facilities. Feature → Business Impact → Application: The intuitive control panel with a dedicated HVAC settings menu minimizes commissioning errors and accelerates handover to operations teams, which cuts installation labor costs and reduces commissioning risk on large projects. Feature → Business Impact → Application: Bluetooth capability enables remote commissioning and monitoring, decreasing site visits and enabling proactive maintenance for mission-critical HVAC plants. Feature → Business Impact → Application: IP21 enclosure as standard with IP55 and flange variants offers installation flexibility in typical indoor plantrooms and more rugged environments, ensuring compliance with site requirements while protecting electronics from dust and moisture. Feature → Business Impact → Application: UL listing and CE compliance provide regulatory confidence for global deployments, supporting procurement decisions and reducing certification delays. Feature → Business Impact → Application: 10 Hp at 230 V with 30.8 A current profile ensures compatibility with common HVAC motors, enabling scalable control for fans, pumps, and compressors across mid-size facilities while keeping wiring and protection simple.
Get a Quick Quote for a ABB 3AXD50000284849
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000284849?
Enquire Now
FAQs
Yes. The ACH580-01-031A-2 is specified for 230 V operation and a current rating around 30.8 A, with a 10 Hp capacity, making it compatible with common HVAC motors used in fans, pumps, and compressors. It is designed for wall mounting with an IP21 enclosure as standard and offers IP55 or flange variants for broader installation contexts.
Key specs include a 10 Hp (horsepower) rating, 230 V input, 30.8 A current draw, and an IP21 enclosure. The drive is UL-listed for HVAC and provides built-in controls tailored for HVAC loads, with an optional Bluetooth capability for remote commissioning and monitoring. These specs support reliable control of fans, pumps, and compressors in typical HVAC applications.
Absolutely. The ACH580 HVAC drive is designed to control fans, pumps, and compressors commonly found in air handling units, chillers, and other HVAC equipment. Its HVAC-specific primary settings menu, built-in control logic, and compatibility with IP-rated enclosures make it a practical choice for both AHUs and chilled-water systems.
The drive ships with UL listing for HVAC use and CE compliance for European installations. It is provided in an IP21 enclosure by default, with IP55 and flange mounting variants available for harsher environments, enabling broader applicability across indoor plantrooms and more demanding locations.
By enabling precise motor speed control and optimized cooling load management, the ACH580 HVAC Drive reduces energy consumption for fans, pumps, and compressors, delivering measurable operating savings. Faster commissioning with built-in HVAC menus also lowers installation labor costs, while remote monitoring via Bluetooth supports proactive maintenance, improving uptime and lowering total cost of ownership.
