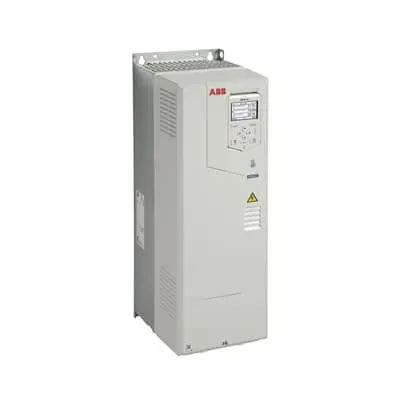

ABB ACH580-01-075A-2 HVAC Drive - IP21 Wall-Mount
Part Number: 3AXD50000284863
Quick Summary
ABB ACH580-01-075A-2 HVAC drive is a LV AC wall-mount controller for HVAC fans and pumps. It enables precise, energy-efficient operation across building ventilation systems. This solution helps reduce commissioning time and startup risk with an HVAC-specific control panel and smart help assistants. UL-listed for 25 HP at 230 V, it offers IP21 enclosure with IP55 and flange mounting options to fit diverse site requirements. Bluetooth commissioning enables remote setup and monitoring, improving field productivity. By combining built-in HVAC intelligence with simple integration, it delivers lower lifecycle costs and faster ROI within modern energy-management and building automation strategies.
Product Information
Extended Description
3AXD50000284863 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control capabilities for fans, pumps, and compressors. Business Impact: Ensures smooth, energy-efficient operation and reduced process variability. Application: Air handling units and chillers in commercial buildings benefit from reliable, closed-loop control and simplified startup. Feature: HVAC-specific primary settings menu and intuitive control panel. Business Impact: Speeds up commissioning, lowers engineering effort, and minimizes startup errors. Application: New installations and retrofits in HVAC retrofit projects require quick, error-free parameterization to meet performance targets. Feature: IP21 enclosure with wall-mount form factor (IP55 option available). Business Impact: Improves installation flexibility and environmental robustness in restricted spaces or harsh plant zones. Application: Wall-mounted drives in equipment rooms, rooftops, or mechanical spaces with constrained footprint. Feature: Optional Bluetooth capability for commissioning and monitoring. Business Impact: Enables remote configuration, reduces on-site visits, and accelerates issue diagnosis. Application: Large campuses or retrofit projects where technicians access drives from a central location. Feature: 74.8 A at 230 V and 25 HP rating. Business Impact: Aligns with common HVAC loads (fans, pumps, compressors) for efficient power control and system alignment. Application: AHUs, pumps, and fan arrays in mid-to-large-scale HVAC installations. Insight: ABB’s ACH580 platform is designed for energy-efficient HVAC control, helping engineers meet compliance and performance targets while maintaining compatibility with existing building automation and energy-management strategies.
Get a Quick Quote for a ABB 3AXD50000284863
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000284863?
Enquire Now
FAQs
Yes. The ACH580-01-075A-2 is a LV AC wall-mounted drive designed for HVAC applications, including fans and pumps. Its IP21 enclosure supports indoor installation, and the unit can be mounted on a wall to save footprint. For retrofit projects, it integrates with existing controls and building automation networks, reducing installation time and wiring complexity.
The drive operates at 230 V with a current rating up to 74.8 A and is rated for up to 25 HP. It features an IP21 enclosure, with IP55 and flange-mount options available. Bluetooth capability is optional for remote commissioning and monitoring, enhancing maintenance efficiency and reducing on-site visits.
The ACH580-01-075A-2 is UL-listed for HVAC applications, supporting reliable operation in commercial environments. It uses an IP21 enclosure, with IP55 as an optional upgrade, to meet installation and environmental demands. While UL certification is confirmed, CE marking applicability should be verified for specific regional deployments.
By delivering energy-efficient control of HVAC fans, pumps, and compressors, the ACH580-01-075A-2 reduces energy consumption and operating costs. Built-in HVAC settings accelerate commissioning, while Bluetooth remote access lowers field service costs and downtime. These factors collectively shorten time-to-value and improve system reliability in ongoing operations.
Ideal for air handling units, chillers, and ventilation fan arrays in commercial buildings. It is suitable for HVAC retrofits and new installations requiring wall-mounted LV drives with robust control capabilities, IP-rated protection, and easy integration with building management systems for enhanced energy efficiency.
