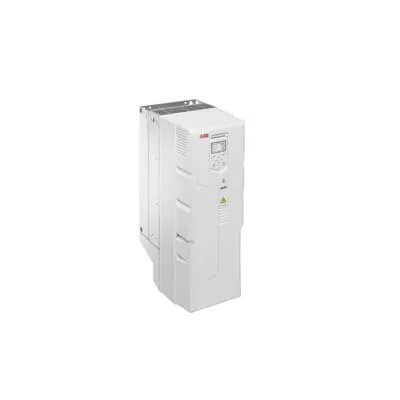

ABB ACH580-01-143A-2 HVAC Drive - IP21 Enclosure
Part Number: 3AXD50000284887
Quick Summary
ABB ACH580-01-143A-2 HVAC drive controls fans, pumps and compressors in commercial HVAC systems. Engineers seek reliable startup, straightforward commissioning, and robust operation to minimize downtime, especially during seasonal peaks. This wall-mounted LV AC drive offers an HVAC-focused control panel, a dedicated primary settings menu, and help assistants that streamline setup and startup. Key ratings include IP21 enclosure with IP55 and flange mounting options and a UL-style performance specification for up to 50 Hp at 230 V, supporting a range of installation environments. By combining built-in energy-saving features with remote commissioning options via Bluetooth, this drive helps building operators meet efficiency targets while simplifying maintenance and ongoing monitoring.
Product Information
Extended Description
3AXD50000284887 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature built-in HVAC control for fans, pumps and compressors → Business impact: reduces commissioning time and startup errors, improving system reliability in buildings. Application: ideal for air handling units and chillers where precise speed control and smooth starts matter. The drive’s HVAC-specific settings menu and help assistants cut commissioning time and minimize on-site programming, delivering faster project turnover and lower startup costs. Feature remote Bluetooth commissioning and monitoring → Business impact: enables off-site commissioning, troubleshooting, and performance verification without site visits, reducing maintenance costs and downtime. Application: useful for multi-building campuses and service teams that require quick, distant access to drive parameters. Feature IP21 enclosure with IP55 option and flange mounting → Business impact: expands installation flexibility in standard and harsher environments, reducing additional enclosure costs and simplifying retrofits. Application: wall-mounted installations in mechanical rooms and above ceilings with easy wiring and secure mounting. Feature energy-saving controls and built-in diagnostics → Business impact: lowers energy consumption and extends equipment life, supporting compliance with efficiency targets. Application: HVAC pumps, fans and compressors running at varying loads. Feature compatibility with ABB control ecosystem → Business impact: streamlines spare parts, service, and integration with building management systems, enabling unified monitoring and scalable upgrades. Application: new builds and retrofit projects seeking a cohesive automation strategy.
Get a Quick Quote for a ABB 3AXD50000284887
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000284887?
Enquire Now
FAQs
The ACH580-01-143A-2 is designed for wall-mounted installation with an IP21 enclosure standard. Optional IP55 housing and flange mounting are available to suit harsher environments or retrofit projects, enabling flexible placement in mechanical rooms or above ceilings while maintaining accessibility for wiring and service.
For 230 V operation, the drive supports up to 143 A and up to 50 Hp, aligning with UL-based performance specifications. This makes it suitable for mid-size HVAC equipment such as fans, pumps and compressors while enabling efficient speed control and soft-start behavior to protect electrical infrastructure.
Yes. The ACH580 HVAC drive includes built-in features for control of fans, pumps and compressors and is specifically positioned for air-handling units, chillers and other HVAC equipment. Its HVAC-focused control panel simplifies startup, while its motor control capabilities provide precise airflow and refrigerant pump management for reliable comfort and efficiency.
Key certifications and ratings include an IP21 enclosure with optional IP55 and flange mounting options for installation versatility. The model specification also references a UL-related performance parameter for up to 50 Hp at 230 V, supporting compliance expectations in many industrial HVAC projects.
Expect reduced commissioning time, lower energy consumption through optimized motor control, and fewer on-site visits thanks to remote Bluetooth commissioning and diagnostics. The drive’s built-in diagnostics and compatible ABB ecosystem enable proactive maintenance, helping to lower total cost of ownership and improve lifecycle performance for HVAC systems.
