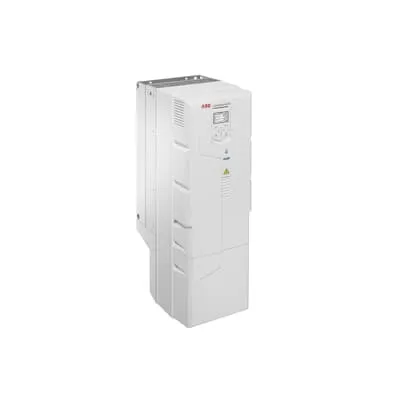

ABB 3AXD50000284900 HVAC LV AC Wall-Mounted Drive - UL Listed, IP21
Part Number: 3AXD50000284900
Quick Summary
ACH580 HVAC drive is a wall-mounted LV AC drive that provides precise speed control for HVAC fans, pumps, and compressors. Installing and commissioning drives often consumes time and labor due to wiring and configuration complexity; this solution reduces complexity with HVAC-specific menus and an intuitive panel. The unit is UL-listed and offered in an IP21 enclosure, with IP55 and flange-mount options, plus optional Bluetooth for remote commissioning and monitoring. By delivering built-in control features and energy-efficient operation, it lowers installation costs and shortens startup timelines for HVAC systems, while improving reliability. For engineers and procurement teams, it also simplifies compliance, maintenance planning, and long-term Total Cost of Ownership.
Product Information
Extended Description
3AXD50000284900 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Built-in HVAC-specific control features streamline startup and commissioning, reducing site wiring and external controller requirements. This translates to shorter project timelines and lower install labor costs for HVAC fans, pumps, and compressors. The ACH580 drives deliver energy-efficient operation by integrating essential control logic, improving overall system performance and reducing energy bills in commercial and industrial buildings. The intuitive control panel with an HVAC primary settings menu minimizes operator errors and accelerates commissioning, which lowers commissioning risk and training time for maintenance staff. Optional Bluetooth enables remote commissioning and monitoring, cutting on-site visits and enabling quicker fault diagnosis for service providers. IP21 enclosure standard ensures safe wall mounting, while IP55 and flange-mount options extend installation flexibility in harsher environments. The device supports 230 V supplies with 211 A electrical current and up to 75 HP motor loads, ensuring compatibility with common HVAC motor applications. By consolidating drive functionality, it reduces bill-of-materials and simplifies spare-part inventories for facilities teams.
Get a Quick Quote for a ABB 3AXD50000284900
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000284900?
Enquire Now
FAQs
Plan for a wall-mounted LV AC installation with a 230 V supply and up to 211 A current, compatible with 75 HP motor loads. The standard enclosure is IP21, with IP55 and flange-mount options available. Consider enabling Bluetooth for remote commissioning and monitoring if site access is limited. Ensure proper isolation and wiring practices per local electrical codes to maximize reliability.
Key specs are 230 V input, 211 A current, and 75 HP motor capability. The ACH580 integrates HVAC-specific control features, enabling precise speed control for fans, pumps, and compressors, which drives energy efficiency and system performance. Built-in settings reduce external hardware, while the intuitive interface minimizes misconfiguration during commissioning and maintenance.
Yes. The ACH580 HVAC drive includes built-in HVAC control features and an HVAC-specific settings menu, designed for air handling units, chillers, fans, pumps, and compressors. Its wall-mounted, IP21-rated enclosure and optional IP55/flange configurations provide installation flexibility in typical HVAC environments, allowing reliable speed control and energy management across these equipment types.
The drive is UL-listed, ensuring compliance with stringent electrical safety standards. It comes standard with an IP21 enclosure and offers IP55 and flange-mount options for additional environmental protection. These certifications and options help facilities meet safety and reliability requirements for HVAC installations while enabling easier procurement and maintenance.
Adopting this drive can shorten commissioning time thanks to HVAC-specific menus and a unified control interface, reducing labor costs. Bluetooth remote commissioning lowers on-site visits, while integrated motor control and energy-efficient operation reduce energy bills and simplify maintenance planning. Overall, the solution lowers total cost of ownership through faster implementation and improved system reliability.
