ABB ACH580-01-06A1-6 LV AC wall-mounted drive - IP21 enclosure
Part Number: 3AXD50000284931
Quick Summary
ABB ACH580-01-06A1-6 LV AC wall-mounted drive for HVAC applications delivers precise motor control and energy efficiency for fans, pumps, and compressors. Engineers frequently struggle with lengthy commissioning, wiring complexity, and unreliable startup under variable HVAC loads. Key protections include a standard IP21 enclosure with optional IP55 variants, Bluetooth-enabled commissioning, and HVAC-specific primary settings to guide startup. Built for wall mounting, it reduces installation time and supports seamless integration with air handling units, chillers, and fan/pump assemblies. Together with ABB's engineering support, the drive helps lower energy consumption, improve system reliability, and shorten time-to-commission across commercial and industrial HVAC projects.
Product Information
Extended Description

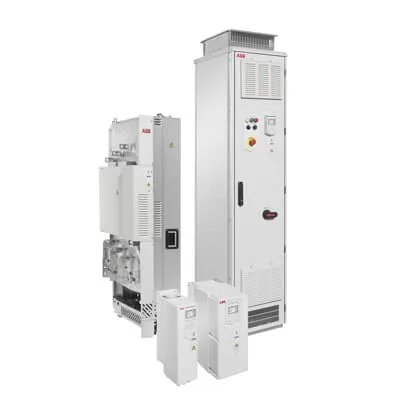

3AXD50000284931 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: HVAC-optimized control algorithms embedded in the ACH580-01-06A1-6 provide precise speed control and soft-start behavior. Business Impact: reduces energy consumption and minimizes motor wear, delivering measurable efficiency gains on HVAC fans, pumps, and compressors. Application: ideal for air-handling units, rooftop units, and chilled-water systems where stable operation under varying loads is essential. Additional benefits include smoother torque curves and reduced line current spikes, extending motor life and improving electrical reliability. Feature: IP21 enclosure with wall-mount design and optional IP55 variants supports flexible installation in mechanical rooms and indoor spaces. Business Impact: increases installer confidence, simplifies mounting, and protects electronics in challenging environments. Application: suitable for indoor HVAC closets, plant rooms, and ducted air-handling networks where a compact footprint matters. The enclosure design also eases conduit routing and service access, enabling faster replacements and routine maintenance. Feature: Bluetooth-enabled commissioning and remote monitoring complements local controls. Business Impact: cuts on-site visits, speeds startup, and enables proactive maintenance through remote diagnostics. Application: commissioning of new AHUs, retrofits in office buildings, and data centers where service windows are limited. The Bluetooth option also supports distance monitoring of drive status, fault logging, and easy firmware updates. Feature: Intuitive HVAC primary settings menu and built-in help assistants shorten startup times and reduce operator training. Business Impact: lowers total cost of ownership by accelerating implementation and decreasing error rates. Application: field service technicians installing fans, conveyors, and pump assemblies in commercial and industrial HVAC installations. The guided parameter sets minimize misconfigurations and support consistent performance across sites. Feature: 5 HP rating at 575 V with a 6.1 A current profile and compatibility with common HVAC motors. Business Impact: standardizes drive selection across projects, enabling quicker procurement and reduced spare-part diversity. Application: replace legacy drives in large-diameter fans, pumps, and compressors across hospitals, campuses, and manufacturing HVAC installations. Additional compatibility with ABB service tools and spare parts reduces maintenance downtime and ensures consistent performance over the lifecycle.
Get a Quick Quote for a ABB 3AXD50000284931
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000284931?
Enquire Now
FAQs
Yes. The ACH580-01-06A1-6 is designed as a wall-mounted LV AC drive for HVAC applications, featuring an IP21 enclosure with available IP55 options. It supports 5 HP motors at 575 V and draws about 6.1 A, making it suitable for indoor mechanical rooms and space-constrained installations. Its compact footprint enables straightforward mounting with wiring designed for quick integration with HVAC equipment.
Key electrical specs include 5 HP output, 6.1 A current, and 575 V line voltage, with built-in HVAC control algorithms for fans, pumps, and compressors. It offers soft-start, programmable ramp rates, motor protection, and an HVAC-optimized settings menu. Optional Bluetooth enables remote commissioning and monitoring, improving setup speed and ongoing performance visibility while reducing on-site service time.
The ACH580-01-06A1-6 is best suited for commercial and industrial HVAC systems including air handling units, rooftop units, chilled-water loops, and fan/pump assemblies. Its energy-efficient speed control reduces peak demand and running costs, while smooth speed variation minimizes vibration and wear. It also eases retrofits by matching 5 HP, 575 V motors and integrating with existing control schemes.
Standards and protections include an IP21 enclosure with an optional IP55 variant, optimizing ingress protection for indoor environments. Bluetooth support enables remote commissioning and monitoring. While the datasheet references IP ratings and Bluetooth capabilities, regional certifications such as CE or UL should be verified in current market datasheets to ensure compliance for your region.
Expect reduced installation time thanks to HVAC-specific menus, fewer field wiring errors, and remote diagnostics via Bluetooth. Energy-efficient motor control lowers running costs, while standardized 5 HP/575 V architecture simplifies procurement and spare parts. Over the lifecycle, this translates to faster service, higher uptime, and a clearer path to return on investment across multiple facilities.
