ABB 3AXD50000284948 LV AC wall-mounted drive for HVAC - IP21 enclosure
Part Number: 3AXD50000284948
Quick Summary
The ABB 3AXD50000284948 LV AC wall-mounted drive for HVAC delivers precise control of fans, pumps and compressors in commercial and industrial systems. This solution reduces commissioning time and wiring complexity by consolidating HVAC-specific logic into a single, intuitive interface. With IP21 enclosure standard and options for IP55 and flange mounting, it adapts to varied installation environments while meeting harsh operating conditions. Bluetooth capability (optional) enables remote commissioning and monitoring, cutting on-site visits and accelerating start-up. By aligning with the ACH580 family and ABB’s control philosophy, the drive helps ensure energy-efficient operation, dependable performance, and lower total cost of ownership for multiple HVAC applications.
Product Information
Extended Description

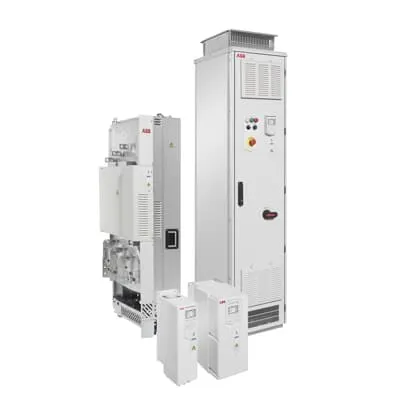

3AXD50000284948 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control logic and user-friendly interface. Benefit: Shortens startup time, reduces wiring and commissioning effort, and lowers total installation costs. Application: Suitable for fans, pumps, and compressors in HVAC systems, including air-handling units and chillers. Feature: 7.5 HP, 9 A, 575 V power rating (UL: Pld). Benefit: Handles typical HVAC load profiles with reliable performance and predictable motor protection, enabling consistent system operation. Application: Mid-size AHUs and rooftop units requiring stable speed control. Feature: IP21 enclosure standard, with IP55 and flange mounting options. Benefit: Flexible mounting and protection across indoor environments and harsher spaces, improving lifecycle reliability. Application: Wall-mounted installations in mechanical rooms or service corridors where space is at a premium.Feature: Built-in commissioning aids and HVAC-specific primary settings menu. Benefit: Reduces commissioning time and onboarding cost, speeding up time-to-value. Application: New builds and retrofits where rapid integration with existing HVAC controllers is important. Feature: Optional Bluetooth connectivity for remote commissioning and monitoring. Benefit: Enables distance configuration, fault diagnosis, and updates without on-site visits, lowering maintenance costs. Application: Remote sites or multi-building campuses where centralized oversight matters.
Get a Quick Quote for a ABB 3AXD50000284948
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000284948?
Enquire Now
FAQs
The drive is designed for LV AC HVAC applications and supports up to 575 V three-phase systems with a 7.5 HP rating and 9 A current. For compatibility, verify motor nameplate voltage, phase configuration, and motor protection settings. The ACH580 HVAC family guidance and built-in control profiles simplify matching to fans, pumps, and compressors. When integrating with existing controllers, use the drive’s primary settings menu to align with your control strategy and protection schemes, ensuring smooth operation and minimized electrical noise.
IP21 is standard for indoor wall-mounted installations, offering adequate protection in mechanical rooms and controlled environments. If the installation location experiences higher dust or splash exposure, consider the IP55 option for enhanced ingress protection. Also plan for proper ventilation, cable routing, and optional flange mounting if wall clearance is tight. This ensures reliable cooling and service access, reducing risk of overheating and maintenance downtime.
Yes, the ACH580-based 3AXD50000284948 is tailored for HVAC applications including fans, pumps, compressors, and air-handling units. By modulating motor speed, it reduces electrical consumption during partial-load operation and lowers peak demand. The built-in HVAC-specific settings streamline startup, balancing performance with energy efficiency. Remote monitoring via Bluetooth enhances fault detection and optimization over time, further improving energy performance across multiple units.
The product features IP protection levels (IP21 standard, with IP55 option) suitable for typical indoor HVAC installations. The drive supports HVAC-specific controls and safe startup sequences designed to align with common regulatory expectations for building services equipment. While Bluetooth remote capabilities are available as an option, ensure your installation follows local electrical standards and safety practices to maintain compliance and reliability.
ROI comes from reduced energy use, lower start-up and commissioning costs, and decreased maintenance visits due to remote diagnostics. The drive’s precise speed control minimizes fan and pump oversizing and improves system stability, translating to energy savings and longer equipment life. In multi-building campuses, centralized monitoring and remote adjustments further reduce operational expenses, accelerating the payback period for HVAC modernization projects.
