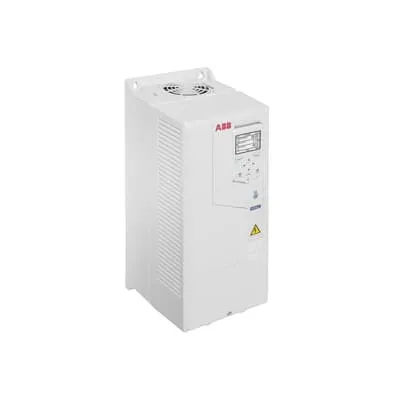

ABB ACH580-01-059A-2 LV AC wall-mounted drive - IP21
Part Number: 3AXD50000296552
Quick Summary
ACH580 HVAC drive provides LV AC motor control for fans, pumps and compressors in HVAC systems. Installing and commissioning drives for HVAC can be time-consuming, driving longer project schedules and higher costs. UL-listed for HVAC use and available with an IP21 enclosure, with optional IP55 and flange-mount variants to fit indoor and rugged environments. This ABB solution also integrates with energy-management strategies and is compatible with remote monitoring through Bluetooth, delivering measurable business value through faster startup, lower energy use, and easier ongoing service.
Product Information
Extended Description
3AXD50000296552 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC-specific control panel and primary settings menu accelerates startup and reduces configuration errors, especially for fans, pumps and compressors in commercial HVAC. This streamlines commissioning, lowers on-site labor, and improves repeatability across multiple AHUs. Application: ideal for air-handling units and chillers requiring precise, HVAC-optimized control. Feature → Business Impact → Application: Bluetooth capability enables remote commissioning and ongoing monitoring, cutting field visits and enabling proactive maintenance planning. Application: scalable for building portfolios and service contracts where remote access accelerates issue resolution. Feature → Business Impact → Application: IP21 enclosure with optional IP55 and flange-mount variants delivers installation flexibility, supporting wall-mounted deployment in clean indoor areas and rugged environments alike. Application: versatile mounting for compact mechanical rooms and equipment racks. Feature → Business Impact → Application: 20 Hp, 59.4 A at 230 V specification ensures robust handling of typical HVAC loads, improving drive longevity and reducing oversizing costs. Application: drives for fans, pumps, and compressors in mid-rise buildings. Feature → Business Impact → Application: built-in energy-management features support energy efficiency targets and compliance with modern codes, lowering operating costs over the equipment life. Application: essential for energy-conscious facilities and retrofit projects. Feature → Business Impact → Application: UL-listed certification provides regulatory assurance for installed bases and panel builders, facilitating procurement and installation in regulated markets. Application: preferred for commercial and industrial HVAC projects with strict compliance requirements.
Get a Quick Quote for a ABB 3AXD50000296552
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000296552?
Enquire Now
FAQs
For HVAC installations, ensure a 230 V supply capable of delivering up to 59.4 A and mount the drive on a suitable wall or cabinet. Use the IP21 enclosure by default, with IP55-flange options available for tougher environments. The HVAC-specific menu simplifies parameter selection, reducing wiring complexity and commissioning time.
The drive supports up to 20 Hp with a rated current around 59.4 A at 230 V. It is a low-voltage AC drive designed for HVAC motors, with built-in control features tailored to fans, pumps and compressors. Compact, wall-mounted form factor and optional Bluetooth for remote access enhance installation and maintenance flexibility.
Yes. The ACH580-01-059A-2 is purpose-built for HVAC equipment, including air handling units, pumps, fans, and compressors. Its HVAC-focused settings, intuitive startup assistants, and remote monitoring support equip AHUs and chillers with reliable, energy-efficient operation and easier control integration.
The drive is UL-listed for HVAC use and available in an IP21 enclosure, with IP55 and flange-mount variants offered as options. These certifications and ratings help ensure safe operation, regulatory compliance, and installation flexibility across different building environments.
Customers typically see reduced commissioning time due to HVAC-specific menus, fewer on-site visits thanks to Bluetooth remote access, and energy savings from optimized motor control. The UL listing and robust IP-rated enclosures also contribute to lower risk of downtime and longer equipment life, delivering measurable maintenance and operating-cost benefits.
