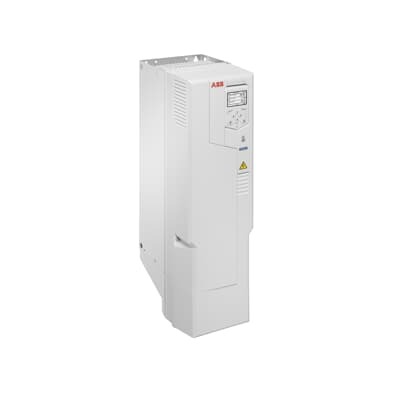

ABB 3AXD50000296569 LV AC wall-mounted drive - IP21
Part Number: 3AXD50000296569
Quick Summary
3AXD50000296569 is an ABB LV AC wall-mounted drive designed to optimize HVAC fans, pumps and compressors. Engineers often confront lengthy commissioning, inconsistent performance, and complex wiring when integrating variable speed drives with modern HVAC systems. UL-listed reliability and IP21 enclosure are standard, with IP55 and flange mounting options to suit tougher environments. This HVAC drive delivers energy-efficient motor control and easy integration, while Bluetooth capability (optional) enables remote commissioning and monitoring. For facilities pursuing reduced energy use and faster project timelines, this solution aligns with modern building services strategies and procurement goals.
Product Information
Extended Description
3AXD50000296569 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC-specific controls for fans, pumps and compressors reduce startup time and simplify commissioning, delivering smoother operation and lower energy consumption in air handling units and chillers. Application: Ideal for mid-to-large HVAC installations where precise speed control improves efficiency and component longevity. Feature → Business Impact → Application: Intuitive control panel with HVAC primary settings and help assistants accelerates setup, lowers commissioning errors, and supports compliant operations, particularly in regulated facilities. Application: Suitable for contractors and maintenance teams seeking predictable startup and reduced on-site time. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, cutting on-site visits and enabling proactive maintenance, which lowers downtime. Application: Useful for distributed facilities and remote sites. Feature → Business Impact → Application: IP21 standard enclosure with wall-mount installation simplifies retrofits and new builds, while IP55 and flange mounting options expand deployment in harsher environments. Application: Works across plant floors with varying enclosure requirements. Feature → Business Impact → Application: UL-listed performance and a 40 Hp, 114 A, 230 V rating ensures compatibility with common HVAC motors and meets safety standards, reducing procurement risk. Application: Suitable for direct integration with chillers, fans and pumps in HVAC systems.
Get a Quick Quote for a ABB 3AXD50000296569
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000296569?
Enquire Now
FAQs
The 3AXD50000296569 is designed as a LV AC wall-mounted HVAC drive compatible with fans, pumps, compressors, air-handling units and chillers. It comes in a standard IP21 enclosure suitable for typical indoor installation, with IP55 and flange mounting options available for harsher environments, ensuring flexible integration across ABB and non-ABB HVAC configurations.
Key specs include UL-listed performance for up to 40 Hp, 114 A, and 230 V operation. The standard enclosure is IP21, with IP55 and flange mounting options offered. These specs support reliable motor control for HVAC equipment while meeting common industry safety and installation requirements.
Ideal for air-handling units, large fans, pumps and compressors within HVAC systems. The built-in HVAC controls, energy-efficient driving and ease of startup support continuous operation in mission-critical environments, while remote monitoring options help service teams maintain optimal performance in facilities with multiple HVAC zones.
The drive is UL-listed for electrical safety and compatibility with HVAC equipment. It features IP21 enclosure by default, with IP55 and flange mounting options for enhanced environmental protection, enabling compliant deployment in a range of facility environments.
By combining built-in HVAC controls with easy startup and commissioning, energy consumption is reduced due to better motor speed control, while remote commissioning via Bluetooth minimizes site visits. Over the equipment’s life, this translates to lower maintenance costs, improved uptime, and a faster payback on HVAC projects.
