ABB 3AXD50000302161 HVAC Drive - IP21/IP55 Wall-Mounted
Part Number: 3AXD50000302161
Quick Summary
ABB ACH580 HVAC Drive is a low-voltage AC wall-mounted drive designed for HVAC applications. Engineers often face lengthy setup and commissioning; this drive simplifies startup with HVAC-specific menus and intuitive help assistants. Key protections include IP21 enclosure with IP55 and flange-mount options to fit varied environments. Built-in HVAC control features support energy-efficient operation of fans, pumps, and compressors, while the optional Bluetooth capability enables remote commissioning and monitoring. With a compact, wall-mounted form factor and integrated control, this solution delivers faster installation and predictable performance, helping facilities reduce total cost of ownership and improve system reliability.
Product Information
Extended Description

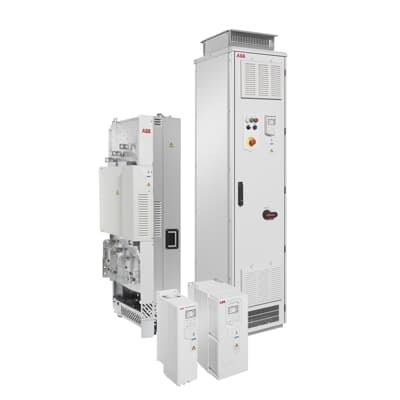

3AXD50000302161 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: 62 A current rating provides robust drive capacity for fans, pumps, and compressors in HVAC systems. Impact: Enables reliable motor control with reduced risk of overload, improving uptime in critical applications. Application: Suitable for air handling units, rooftop units, and chillers where load varies and precise speed control matters. The ACH580‑01 variant supports efficient energy management and smoother startup, leading to measurable energy savings over a billing cycle. Feature: Built‑in HVAC control panel with a dedicated primary settings menu and help assistants. Impact: Simplifies startup, commissioning, and ongoing operation, lowering commissioning time and technician labor costs. Application: Ideal for OEMs and service teams deploying new AHUs or retrofitting existing systems. Feature: Optional Bluetooth connectivity for commissioning and monitoring from distance. Impact: Reduces site visits, supports remote diagnostics, and accelerates fault isolation. Application: Field service, remote monitoring contracts, and distributed HVAC networks. Feature: IP21 enclosure with available IP55 and flange mounting options. Impact: Provides environmental protection and mounting flexibility for varied plant layouts, improving safety and installation efficiency. Application: Wall mounting in mechanical rooms, electrical cabinets, or equipment rooms. Feature: Compatibility with fans, pumps, and compressors through built‑in logic and parameter sets. Impact: Assures regulatory compliance, consistent performance, and smoother integration with Building Management Systems. Application: AHUs, chillers, and fan coil units requiring reliable variable-speed control. Feature: Energy‑efficient performance with motor‑driven throttling and soft start. Impact: Reduces energy consumption, lowers operating costs, and prolongs equipment life. Application: HVAC duty cycles with fluctuating load profiles. Feature: Intuitive control and diagnostic tools accelerate troubleshooting and reduce downtime. Impact: Faster issue resolution, improved mean time between failures, and better service planning. Application: Maintenance windows and remote support scenarios.
Get a Quick Quote for a ABB 3AXD50000302161
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000302161?
Enquire Now
FAQs
The ACH580 HVAC Drive is designed for wall-mounted installation with IP21 protection and optional IP55/flange mounting. Start by selecting a suitable wall location with adequate clearance for cooling and wiring. Connect power, motor leads, and control wiring per the HVAC-specific settings menu. Use the built-in commissioning aids to finalize parameterization, then verify system operation with remote or on-site monitoring.
This model supports a 62 A current rating, enabling reliable control of fans, pumps, and compressors common in AHUs and chillers. Built-in HVAC-focused control logic streamlines startup and operation, while the available IP21/IP55 options provide environmental protection. The optional Bluetooth capability allows remote commissioning and monitoring, reducing on-site visits and accelerating fault diagnosis.
Yes. The ACH580 HVAC Drive is explicitly designed to manage fans, pumps, and compressors in HVAC environments, including air handling units and chillers. Its HVAC-specific primary settings menu simplifies configuration, and the drive’s energy-saving features help optimize efficiency across dynamic load profiles typical of AHU and chiller duty cycles.
The drive offers an IP21 enclosure as standard, with IP55 and flange mounting variants available as options. These protections support installation in varied HVAC environments, enabling safer operation in mechanical rooms and near equipment where dust, moisture, or mounting constraints are concerns.
By delivering energy-efficient motor control, simplified commissioning, remote monitoring, and reduced on-site maintenance visits, the ACH580 drives down energy and labor costs, lowers downtime, and extends equipment life. The integrated HVAC menus and diagnostics enable quicker fault isolation and service planning, delivering measurable return over typical facility service cycles.
