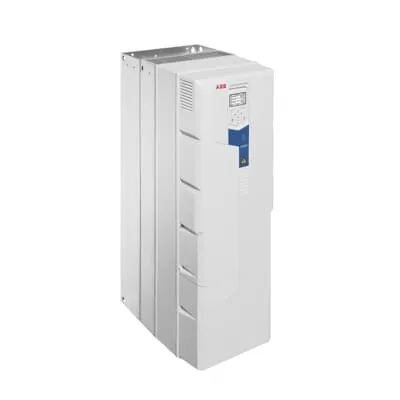

ABB 3AXD50000332069 AC Drive - Ultra-Low Harmonic THDi <3%
Part Number: 3AXD50000332069
Quick Summary
ABB 3AXD50000332069 AC drive delivers precise pump speed control for water and wastewater systems. Engineers often struggle with harmonic distortion, energy waste, and the need for external filters in challenging pumping installations. UL-certified configurations come standard with an IP21 enclosure, with IP55 and flange-mount options to suit harsher environments. This solution integrates low harmonic filtering, output voltage boost, and power factor correction to improve efficiency and reliability across the plant. Coupled with pump-application features and intuitive control interfaces, it supports scalable, maintenance-friendly operations in modern water treatment facilities.
Product Information
Extended Description
3AXD50000332069 ABB: The ACQ580-31 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. The ultra-low harmonic variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic standards and recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers.
Other features include output voltage boost and power factor correction. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The ultra-low harmonic wall-mounted variant comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
The ultra-low harmonic variant reduces THDi to less than 3%, delivering cleaner power and reducing the need for external harmonic mitigation—a direct business impact that lowers installation and operating costs for water and wastewater pumping. This drives energy efficiency gains and helps meet regulatory expectations while simplifying compliance checks during plant audits. The built-in active supply unit and integrated low harmonic line filter eliminate external filters or complex multi-pulse arrangements, enabling a compact, space-saving wall-mounted installation suitable for retrofit projects or new builds. Output voltage boost and power factor correction improve motor performance and overall energy intensity, translating to measurable savings on kilowatt-hour consumption in long-run pumping cycles and in high-demand hours. Pump-specific features—sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection—enhance reliability, reduce wear, and minimize unplanned downtime in process-critical water networks. Quick ramps and impeller cleaning support smooth startup and continuous operation, while the Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel accelerate commissioning, diagnostics, and remote supervision. The enclosure options, IP21 standard with IP55 as an upgrade, provide flexible installation in plant rooms or outdoor enclosures, improving maintenance access and protection against contaminants. Overall, the ABB drive combines robust hardware with a user-centric interface to lower total cost of ownership in water and wastewater pumping applications.
