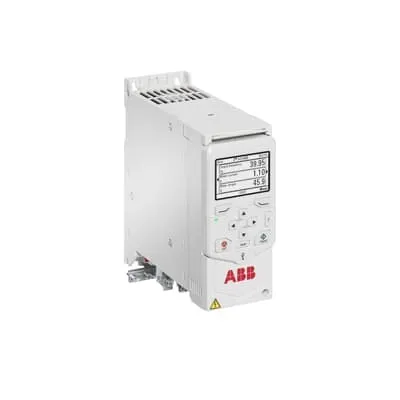

ABB 3AXD50000352418 LV AC Drive - ACH480-04-04A8-1
Part Number: 3AXD50000352418
Quick Summary
ABB ACH480 LV AC drive module controls fans, pumps, and compressors in HVAC systems. Panel builders and OEMs often face long commissioning times and complex wiring, but this cabinet-optimized drive streamlines setup and ongoing operation. Designed with CE compliance and HVAC-specific safety in mind, it supports reliable performance in commercial and industrial environments. Optional Bluetooth enables remote commissioning and monitoring, while the integrated HVAC features help deliver measurable energy savings and easier maintenance. Built for OEMs and panel shops, it supports efficient integration with equipment such as air-handling units, fans, and pumps, accelerating project timelines and reducing total cost of ownership.
Product Information
Extended Description
3AXD50000352418 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: Cabinet-optimized ACH480 HVAC drive module delivers complete HVAC motor control with built-in capabilities to manage fans, pumps, and compressors. Business Impact: This consolidation reduces panel footprint, minimizes wiring errors, and lowers installation time, translating into faster project delivery and lower onsite labor costs. Application: Ideal for air-handling units, rooftop units, and other centralized HVAC equipment where reliability and precise speed control matter. Feature: The drive’s intuitive control panel includes an HVAC-specific primary settings menu and help assistants. Business Impact: Startups are faster, commissioning time is reduced, and technicians struggle less with configuration errors. Application: Great for panel builders and OEMs deploying HVAC controls in commercial facilities. Feature: Optional Bluetooth connectivity enables commissioning and monitoring from a distance. Business Impact: Cuts on-site visits, speeds fault finding, and supports remote optimization during mission-critical operations. Application: Useful for service teams maintaining HVAC systems in large installations. Feature: Rated for 0.75 kW, 4.8 A at 200 V (ACH480-04-04A8-1) in a cabinet-friendly package. Business Impact: Matches common HVAC loads, enabling efficient motor control and energy savings. Application: Fans and pumps in mid-sized HVAC systems. Feature: Designed for panel builders and OEMs with cabinet-friendly integration and robust protection. Business Impact: Reduces wiring complexity, accelerates deployment, and simplifies maintenance. Application: OEM HVAC skids, air-handling units, and building management systems. Feature: Energy-efficient operation with smooth speed control reduces mechanical wear and energy bills. Business Impact: Lower operating costs over the life of the equipment. Application: All HVAC drive applications.
Get a Quick Quote for a ABB 3AXD50000352418
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000352418?
Enquire Now
FAQs
Yes. The ACH480 is designed for cabinet-based HVAC installations and supports common panel configurations used by HVAC engineers, including standard 200 V supply arrangements for light to medium-duty fans and pumps. For best results, align wiring and control wiring with ABB documentation and follow panel-building standards to ensure reliable operation.
Key specs include a rated power of 0.75 kW, maximum current around 4.8 A, and 200 V operation. These parameters enable precise speed control for HVAC motors, supporting energy-efficient operation and reduced motor wear. Align motor selection with the drive’s rated current to maximize efficiency and minimize thermal stress in HVAC loads.
Applications that benefit most include fans and pumps in air-handling units, rooftop units, and other centralized HVAC equipment. The cabinet-optimized design and HVAC-specific menus simplify startup and tuning, delivering steady, energy-efficient operation in building automation systems and large commercial installations.
The ACH480 design supports commonly required certifications for HVAC drives, including CE marking for European markets. This alignment helps installers meet regulatory expectations and maintain compliant control systems in commercial and industrial environments. Always verify the latest ABB spec sheet for any updates on certifications.
Maintenance is streamlined by an intuitive HVAC-focused control interface and optional remote Bluetooth commissioning, reducing on-site service time. ROI comes from faster deployment by panel builders, reduced wiring complexity, and energy savings through precise fan and pump speed control, resulting in lower operating costs over the drive’s life cycle.
