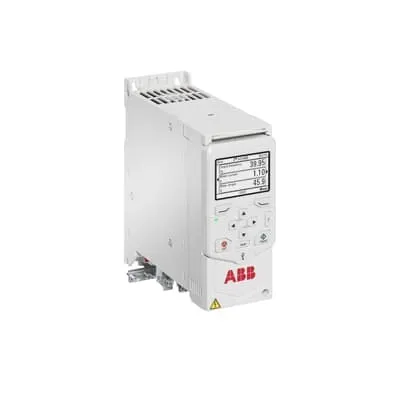

ABB ACH480-04-07A8-1 LV HVAC Drive - 200V IEC
Part Number: 3AXD50000352432
Quick Summary
ABB ACH480-04-07A8-1 LV HVAC Drive is a cabinet-optimized variable speed drive designed for HVAC fans, pumps, and compressors. This architecture addresses enclosure space, wiring complexity, and commissioning time challenges that panel engineers frequently face. The product aligns with CE electrical safety expectations and IEC-based HVAC control standards, supporting reliable operation in mission-critical installations. By enabling tighter integration and easier installation, it delivers energy savings, faster commissioning, and a lower total cost of ownership for OEMs and panel builders. Its HVAC-specific settings menu, intuitive help assistants, and optional Bluetooth for remote commissioning add practical business value.
Product Information
Extended Description
3AXD50000352432 ABB: The cabinet-optimized ACH480 drive has complete HVAC functionality to control fans, pumps, compressors, and more complex HVAC equipment like air-handling units, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH480 is especially a good fit for panel builders and OEMs.
Feature: Cabinet-optimized ACH480 drive for HVAC. Business Impact: Reduces enclosure footprint and simplifies wiring, cutting installation time and reducing panel costs. Application: Ideal for air handling units, rooftop units, and packaged HVAC equipment. In practice, installers gain more usable space and less complex harnessing when integrating this drive into standard HVAC panels. Feature: HVAC-specific primary settings menu with help assistants. Impact: Accelerates startup and minimizes commissioning risk by guiding correct parameter selection. Application: Particularly valuable for panel builders and OEMs deploying HVAC controls across multiple projects. Feature: Optional Bluetooth connectivity. Impact: Enables remote commissioning and monitoring, lowering on-site visits and service travel. Application: Critical for distributed or remote HVAC installations in campuses or facilities with hard-to-reach equipment. Feature: 1.5 kW, 200 V, 7.8 A electrical envelope. Impact: Clear performance targets simplify specification and integration with contemporary HVAC gear. Application: Suited for medium-load HVAC drives across commercial buildings. Feature: Energy-efficient operation with advanced control algorithms. Impact: Reduces energy consumption and extends equipment life. Application: Aligns with building energy codes and sustainability goals while improving total cost of ownership.
Get a Quick Quote for a ABB 3AXD50000352432
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000352432?
Enquire Now
FAQs
The ACH480-04-07A8-1 LV HVAC Drive is designed for cabinet installations in standard HVAC panels. Its compact footprint and IEC-compliant voltage rating support straightforward mounting, wiring, and wiring harness integration with typical panel builders’ practices. When selecting a paneled enclosure, ensure adequate space for heat dissipation and convenient access to the control terminals for commissioning.
Key specifications include a 1.5 kW power rating, 7.8 A current, and a 200 V supply. The drive is designed for LV AC applications in HVAC systems, delivering precise speed control for fans, pumps, and compressors. Compatibility with HVAC loads and the IEC-based electrical environment ensures reliable operation and predictable performance in building automation projects.
Yes. The ACH480-04-07A8-1 LV HVAC Drive is purpose-built for HVAC equipment such as air handling units and related building systems. Its HVAC-specific settings menu enables fast commissioning and tuning for VAV/AHU scenarios, while its control algorithms optimize motor speed to meet varying airflow demands without sacrificing energy efficiency.
While exact certification listings can vary by region, ABB drives in this family commonly target CE compliance for electrical safety and EMC performance, along with compliance suitable for European markets. For mission-critical HVAC installations, verify regional requirements with your procurement team and confirm documentation for safety and installation standards before purchase.
The drive reduces commissioning time through HVAC-focused menus, streamlines installation with a compact cabinet footprint, and enables energy-efficient operation, contributing to lower energy costs over time. Optional Bluetooth enables remote monitoring to reduce site visits, supporting predictive maintenance programs and improving uptime for OEMs and facility operators.
